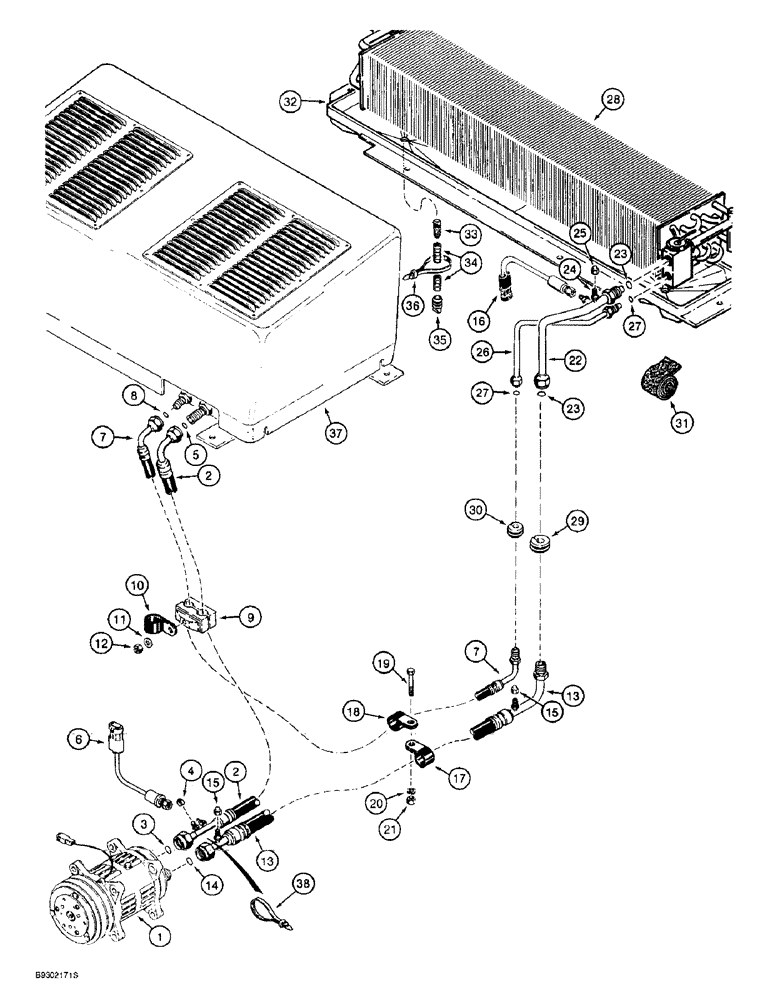

Запчасти Case 621B (9-080) - AIR CONDITIONING SYSTEM, COMPRESSOR TO CONDENSER AND EVAPORATOR CORE, PRIOR TO P.I.N. JEE0040380 (09) - CHASSIS/ATTACHMENTS

1

97179C2

COMPRESSOR

ASSEMBLY air conditioning, see Figure 9-088

1шт.

2

1954629C1

HOSE

1185 mm (46-5/8 inch) long, Includes: Ref. 3 - 5, supply, Serial Range: compressor-condenser

1шт.

3

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

At compressor outlet port

1шт.

4

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

hex, 7/16-20 inch female 45 degree flare

1-2шт.

5

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

At condenser

1шт.

6

234921A1

SENSOR

SWITCH high pressure, air conditioning

1шт.

7

1954642C2

HOSE

1325 mm (52-5/32 inch) long, Includes: Ref. 8, return, condenser to evaporator core, replaces 1954642C1 hose

1шт.

8

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

Hose, at condenser

1шт.

9

L115095

CLAMP

double, includes both halves and metal top plate

1шт.

10

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Hose

1шт.

11

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

1шт.

12

231-1445

NUT,5/16"-18, GB

1шт.

13

1954643C2

HOSE

1050 mm (41-5/16 inch) long, Includes: Ref. 14 and 15, evaporator core to compressor inlet port

1шт.

14

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

Hose, at compressor

1шт.

15

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

hex, 7/16-20 inch female 45 degree flare

2шт.

16

92153C1

SWITCH

low pressure

1шт.

17

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type, Replaces D47782 clamp

1шт.

18

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type, LH hose, Replaces 129083R1 clamp

1шт.

19

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

20

492-11038

LOCK WASHER,3/8"

1шт.

21

425-106

NUT,3/8"-16, Cl 5

1шт.

22

97140C5

PIPE

pressure, Includes: Ref. 23 - 25

1шт.

23

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

2шт.

24

1250594C2

CORE

VALVE

1шт.

25

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

hex, 7/16-20 inch female 45 degree flare

1шт.

26

97141C3

PIPE

lower, return, condenser to evaporator core, Includes: Ref. 27, replaces 97141C2 tube

1шт.

27

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

28

98369C3

RADIATOR

CORE ASSEMBLY air conditioning and heater, see Figure 9-076

1шт.

29

248-2399

GROMMET,3/8" ID x 1" Groove Dia, Str Cut

Rubber

1шт.

30

248-2376

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

Rubber

1шт.

31

83822C1

TAPE

610 mm (24 inch) long, cut from 1954475C1 bulk tape, air conditioning core tubes, valve, and hoses

5шт.

32

1339577C3

PAN

drip, condensation, see Figure 9-076 for seals and mounting

1шт.

33

1250522C3

FITTING

straight, special, drain, Serial Range: hose-housing

2шт.

34

1977334C1

HOSE

610 mm (24 inch) long, cut from 198091C1 bulk hose, drain, from condensation pan

2шт.

35

109239C2

CHECK VALVE

2шт.

36

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

4шт.

37

97182C4

CAPACITOR

Condenser Assy, air conditioning, see Figures 9-082 and 9-084, no longer available, order 178301A1

1шт.

37

97182C6

CAPACITOR

Condenser Assy, air conditioning, see Figure 9-085A, no longer available order 178301A1

1шт.

37

178301A1

ASSEMBLY

Condenser air conditioning, with tan cover, if used, see Figures 9-082 and 9-084, replaces 97182C4 and 97182C5

1шт.

38

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

2шт.

1954475C1

ROLL

Tape, bulk, 63.5 (2-1/2) x 9150 (360) x 3 mm (1/8 inch) thick

1шт.

198091C1

HOSE,12.95mm ID x 15240mm L

bulk, 13 (1/2) ID x 15240 mm (600 inch) long

1шт.
