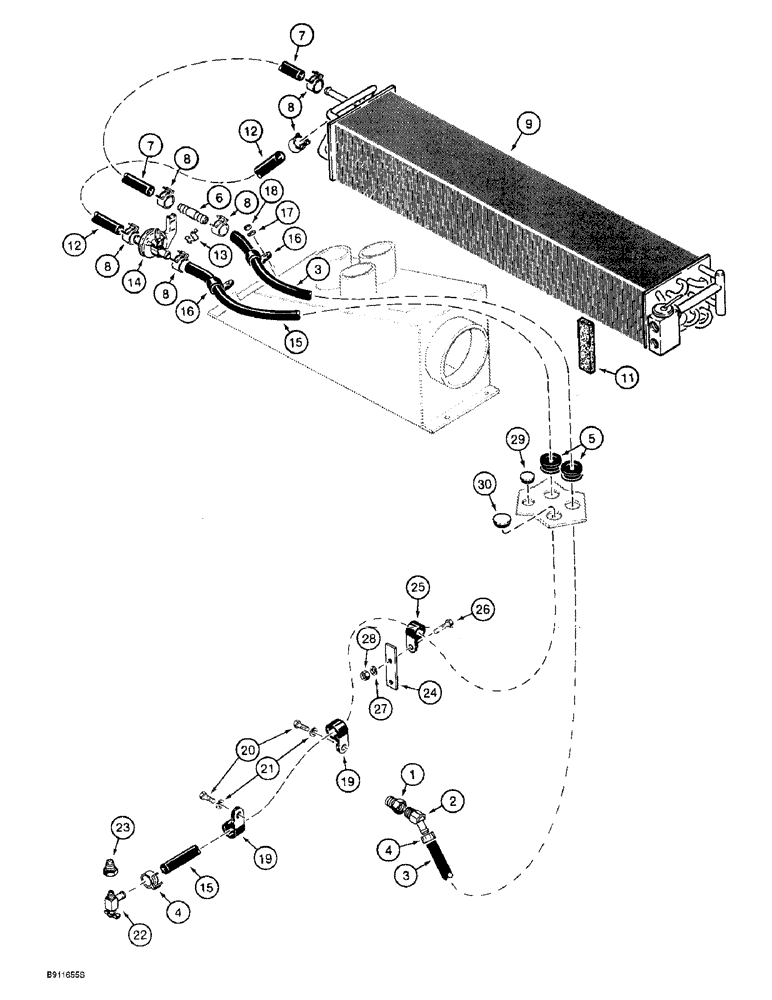

Запчасти Case 621B (9-078) - HEATING SYSTEM (09) - CHASSIS/ATTACHMENTS

1

221-93

REDUCER,Hex, 3/4" x 1/2" NPT

Pipe, 3/4 male x 1/2 inch female

1шт.

2

217-144

45 ELBOW,45 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

1шт.

3

1327782C2

LARGE HOSE,15.50 mm ID x 3302.00 mm

HOSE,LARGE Cut from 97252CX bulk hose, See below, With white stripe

1шт.

4

1954736C1

HOSE CLAMP,#24

Adjustable

2шт.

5

L116914

GROMMET

heater hoses

2шт.

6

1301342C1

FITTING

straight, special

1шт.

7

1981958C1

HEATER HOSE,15.50 mm ID x 330.00 mm

Heater Supply

1шт.

8

1954736C1

HOSE CLAMP,#24

Adjustable

6шт.

9

REF

INSTRUCTION

Core Assembly, combination, heating and air conditioning, see Figure 9-076 for correct assembly and parts list, see Ref. 10 for models with heater only

1шт.

10

1331025C1

CORE

CORE heater, used on models with heater only, not shown

1шт.

11

1340075C1

SEAL

130 mm (5-1/8 inch) long, cut from 1974883CX bulk seal, see below, core ends

4шт.

12

1977501C1

HEATER HOSE,15.50 mm ID x 610.00 mm

Return, At Core

1шт.

13

1954626C1

SPRING CLIP

CLIP retaining, heater cable retaining

1шт.

14

1331087C1

HEATER VALVE

control

1шт.

15

1327781C2

HOSE,15.50 mm ID x 2921.00 mm

Cut from 97252CX bulk hose, See below, Heater return

1шт.

16

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type, Hose to plenum duct

2шт.

17

495-21031

WASHER,1/4"

5/16 x 3/4 x 1/16 inch

2шт.

18

425-104

NUT,1/4"-20, Cl 5

2шт.

19

51200320

CLAMP

P-type, 1 inch ID

2шт.

20

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

2шт.

21

892-11012

LOCK WASHER,M12

2шт.

22

301803R1

SHUT-OFF VALVE

1шт.

23

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

pipe, 1/2 male x 3/8 inch female

1шт.

24

L119144

LARGE PLATE

PLATE, LARGE Strap, clamp mounting

1шт.

25

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type

1шт.

26

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

27

492-11038

LOCK WASHER,3/8"

1шт.

28

425-106

NUT,3/8"-16, Cl 5

1шт.

29

353-411

PLUG,Dome, 1.000" hole, Nylon

Used on models with heating only

1шт.

30

192280

HOLE PLUG BUTTON,1 1/4"

1-1/4 inch ID, used on models with heating only

1шт.

97252CX

HOSE

bulk, 16 (5/8) x 25 (1) x 15240 mm (600 inch) long

1шт.

1974883CX

SEAL

bulk, adhesive-backed, 13 (1/2) x 38 (1-1/2) x 15240 mm (600 inch) long

1шт.
