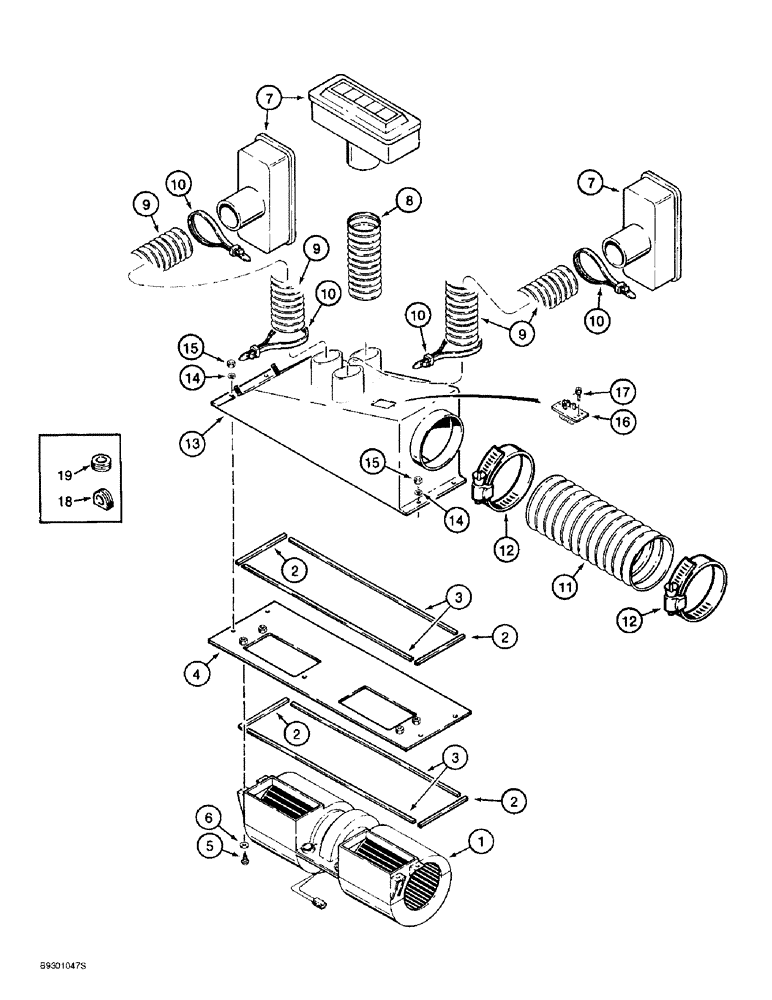

Запчасти Case 621B (9-074) - HEATING AND AIR CONDITIONING PLENUM (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

Blower Assy, Cab, See Figure 4-58

1шт.

2

1340071C1

SEAL

200 mm (7-7/8 inch) long, Cut From 187874C1 Bulk Seal, Blower Plate, Upper

4шт.

3

1340072C1

SEAL

530 mm (20-7/8 inch) long, Cut From 187874C1 Bulk Seal, Blower Plate, Lower

4шт.

4

1339685C2

LARGE PLATE

PLATE, LARGE blower mounting

1шт.

5

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

4шт.

6

495-21031

WASHER,1/4"

5/16 x 3/4 x 1/16 inch

4шт.

7

1971238C1

VENT

Louver, cab, and air conditioning

3шт.

8

1999765C1

HOSE

Hose, 163 mm (6-13/32 inch) long, Cut From 236559A1 Bulk Hose, Air Flow, Upper, At Center Louver

1шт.

9

1999754C1

AIR HOSE

535 mm (21-1/16 inch) long, Cut From 236559A1 Bulk Hose, Air Flow, Upper, At Side Louver

2шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

4шт.

11

1999763C1

HOSE

Hose, 305 mm (12 inch) long, Cut From 1999759C1 Bulk Hose, Air Flow, Side

1шт.

12

214-1484

HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm

adj., 4-7/8 - 5-3/4 inch dia., side air hose

2шт.

13

1999767C1

DUCT

Plenum, Pressure Chamber, Heat and Air

1шт.

14

492-11025

LOCK WASHER,1/4"

If used

4шт.

15

425-104

NUT,1/4"-20, Cl 5

4шт.

16

F44903

RESISTOR

blower speed, 24 volt

1шт.

17

280-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

No. 10-16 x 1/2 inch

2шт.

18

1546537C1

GROMMET

blower mounting plate

1шт.

19

96901C1

GROMMET

Blower Motor Wire, Blower Mounting Plate

1шт.

187874C1

GASKET

Bulk, Adhesive Backed, 3 (1/8) X 10 (3/8) x 15240 mm (600 inch) long

1шт.

236559A1

HOSE,63.5mm ID x 1270mm L

Replaces 1999764C1 hose

1шт.

1999759C1

PLASTIC-RUBBER TUBE

bulk, 127 (5) ID x 7620 mm (300 inch) long

1шт.
