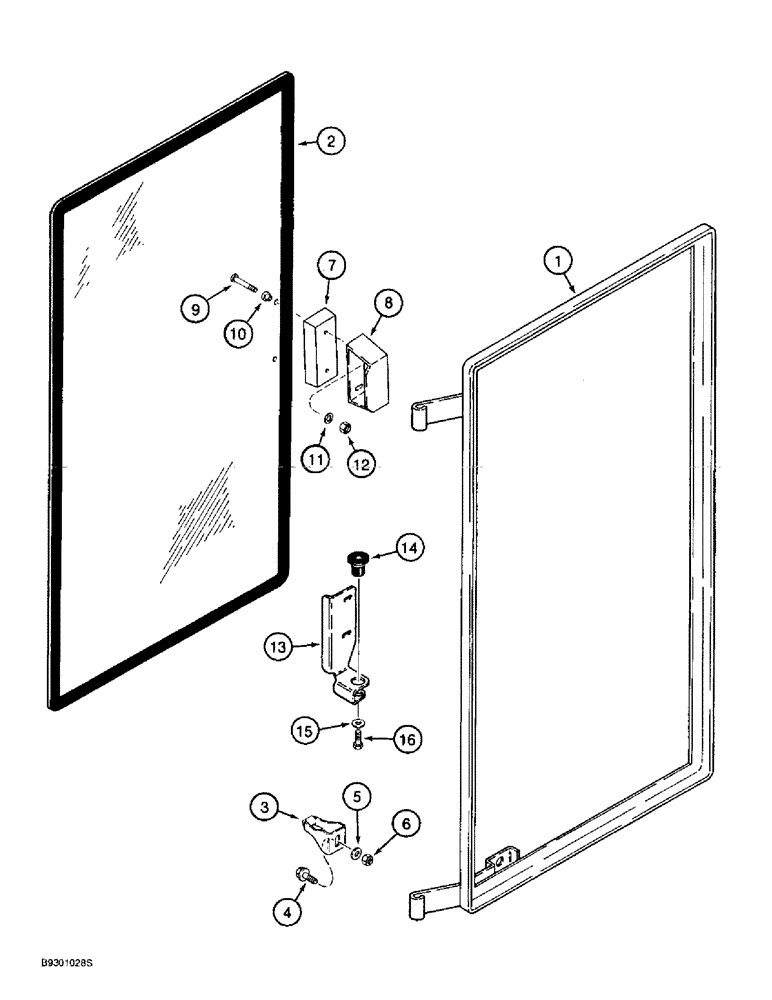

Запчасти Case 621B (9-070) - CAB DOOR WINDOW (09) - CHASSIS/ATTACHMENTS

108195A1

WINDOW ASSY

cab door, tan, Includes: Ref. 1 and 2

1шт.

193343A1

WINDOW

ASSEMBLY cab door, gray, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

Frame, window, cab door

1шт.

2

1999631C1

GLASS

Window, Left Hand, 108195A1 and 193343A1 windows

1шт.

3

1981896C1

STOP

CATCH male, open window retainer

1шт.

See Figure 9-072, P/N 1340187C2 for female catch

1шт.

4

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1шт.

6

231-1446

NUT,3/8" - 16, Gr 5

1шт.

7

1340417C1

BLOCK ASSY.

Bracket, handle mounting

1шт.

8

97399C1

HANDLE

door window

1шт.

9

117068A1

SELF-TAP SCREW,Cross Oval Hd, #10 - 24 x 2"

No. 10 NC x 2 inch

2шт.

10

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

Nylon, black

2шт.

11

195-81023

WASHER,5.94mm ID x 14.28mm OD x 1.25mm Thk

(1/4 x 9/16 x 3/64")

2шт.

12

F45165

SPECIAL NUT,#10-24

hex, self-locking, special, No. 10 NC, Teflon coated

2шт.

13

116288A1

SUPPORT

BRACKET latch, left-hand

1шт.

14

D75755

ISOLATOR

rubber

1шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1шт.

16

426-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 8

1шт.
