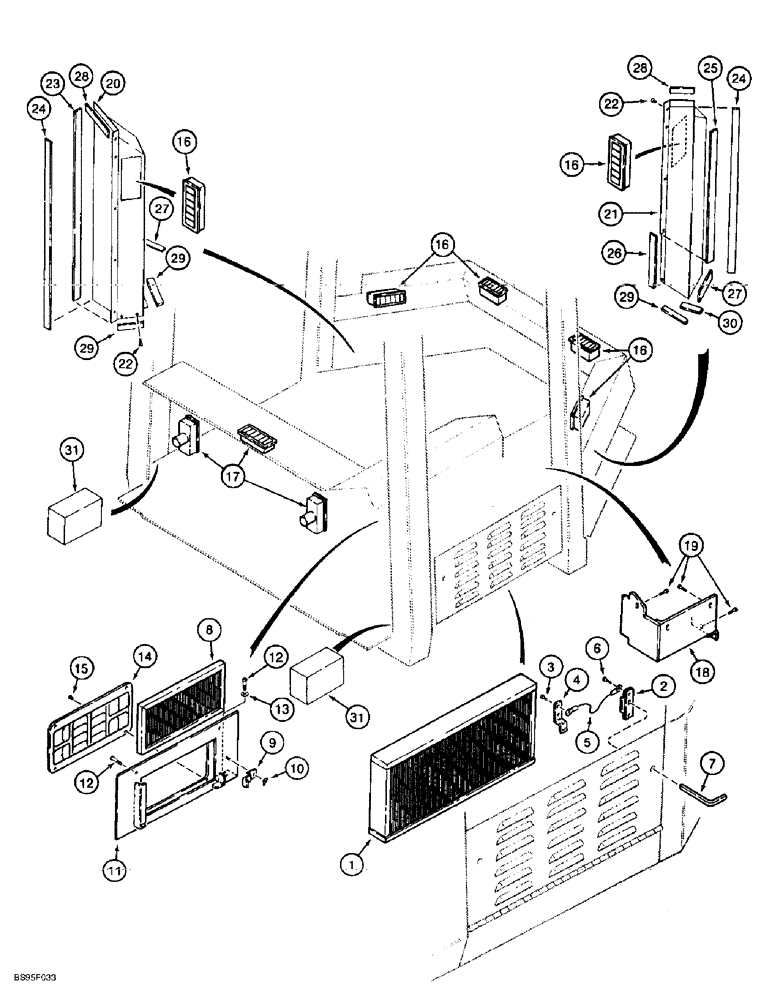

Запчасти Case 621B (9-064) - CAB FILTERS, VENTS, AND LOUVERS (09) - CHASSIS/ATTACHMENTS

1

1970006C2

AIR CLEANER,Cab, 508mm L x 228.6mm W x 55.8mm Thk

Filter, Cab

1шт.

2

1339773C1

LOCK

Latch, filter door

2шт.

3

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

4шт.

4

1339848C2

SUPPORT

Catch, filter door

2шт.

5

1339924C1

CABLE

filter door stop

1шт.

6

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

4шт.

7

S115083

KEY

lock, access door

1шт.

The panel that this key goes thru is P/N 223667A1.

1шт.

8

1970098C1

FILTER

air, recirculating

1шт.

9

1977780C1

SUPPORT

BRACKET mounting, filter

1шт.

10

129-409

WING NUT,1/4"-20

1шт.

11

1977783C2

SUPPORT

Frame, Recirculation, Filter and Louver, Tan, No Longer Used, for Service Order 193656A1

1шт.

11

193656A1

SUPPORT

Frame, Recirculation, Filter and Louver, Gray

1шт.

12

1276051C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1"

1/4 NC x 1 inch

3шт.

13

1990502C1

WASHER

17/64 x 13/16 x 5/64

1шт.

14

1970073C1

ORIFICE RING

Louver, air, recirculating

1шт.

15

265-18312

SELF-TAP SCREW,Cross Oval Hd, #6 x 3/4"

No. 6-20 x 3/4 inch

4шт.

16

1990950C2

VENT

Louver, bezel, with locking tab

6шт.

17

1971238C1

VENT

Louver, cab, rear window

3шт.

18

1339900C5

PANEL

COVER seal, air recirculating

1шт.

19

281-14712

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4 NC x 3/4 inch

4шт.

20

1344366C2

DUCT

Vent, Air, High Rise, Double Louver, Left Hand, Tan, No Longer Used, For Service Order 243609A1

1шт.

20

193655A1

COVER

Vent, Air, High Rise, Double Louver, Left Hand, Gray, No Longer Used, For Service Order 243609A1

1шт.

20

243609A1

DUCT

Vent, Air, High Rise, Double Louver, Left Hand, Gray, Not Illustrated, Replaces 193655A1 Vent

1шт.

21

1344280C2

DUCT

Vent, Air, High Rise, Double Louver, Right Hand, Tan, No Longer Used, For Service Order 258494A1

1шт.

21

193654A1

COVER

Vent, Air, High Rise, Double Louver, Right Hand, Gray, No Longer Used, For Service Order 258494A1

1шт.

21

258494A1

DUCT

Vent, Air, High Rise, Double Louver, Right Hand, Gray, Not Illustrated, Replaces 193654A1 Vent

1шт.

22

143309C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 16 x 1/2"

No. 10-16 x 1/2 inch

16шт.

23

1344322C1

SEAL

550 mm (21-11/16 inch) long, Cut From 195917C1 Bulk Seal, Air Vent, No Longer Used, For Service Order 114328A1 Sealant, Ref 32

1шт.

24

1344323C1

SEAL

540 mm (21-1/4 inch) long, Cut From 195917C1 Bulk Seal, Air Vent, No Longer Used, For Service Order 114328A1 Sealant, Ref 32

2шт.

25

1344324C1

SEAL

350 mm (13-3/4 inch) long, Cut From 195917C1 Bulk Seal, Air Vent, No Longer Used, For Service Order 114328A1 Sealant, Ref 32

1шт.

26

1344325C1

SEAL

170 mm (6-11/16 inch) long, Cut From 195917C1 Bulk Seal, Air Vent, No Longer Used, For Service Order 114328A1 Sealant, Ref 32

1шт.

27

1344326C1

SEAL

95 mm (3-3/4 inch) long, Cut From 195917C1 Bulk Seal, Air Vent, No Longer Used, For Service Order 114328A1 Sealant, Ref 32

2шт.

28

1344327C1

SEAL

85 mm (3-3/8 inch) long, Cut From 195917C1 Bulk Seal, Air Vent, No Longer Used, For Service Order 114328A1 Sealant, Ref 32

2шт.

29

1344328C1

SEAL

60 mm (2-3/8 inch) long, Cut From 195917C1 Bulk Seal, Air Vent, No Longer Used, For Service Order 114328A1 Sealant, Ref 32

2шт.

30

1344329C1

SEAL

50 mm (2 inch) long, Cut From 195917C1 Bulk Seal, Air Vent, No Longer Used, For Service Order 114328A1 Sealant, Ref 32

1шт.

31

1981764C1

FOAM

BLOCK, 75 (3) x 50 (2) x 125 mm (5 inch), Used on Floor in Rear Corners of Cab

2шт.

32

114328A1

SEALANT

silicone, not shown

1шт.

195917C1

GASKET

bulk, foam, adhesive backed, 15240 mm (600 inch) long

1шт.
