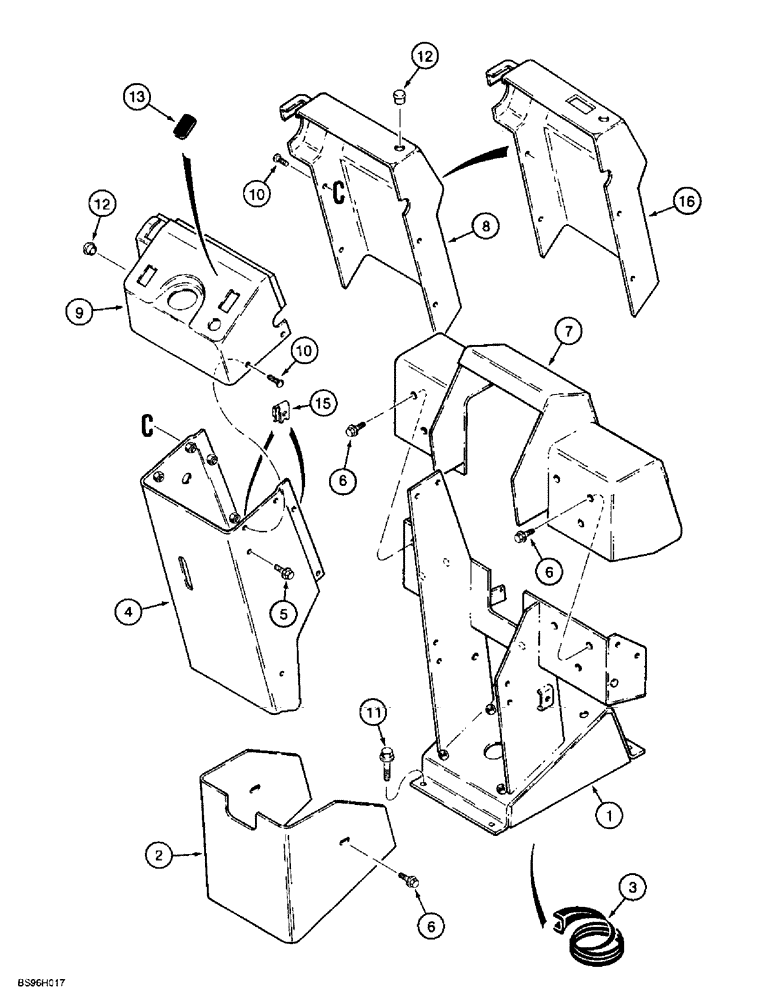

Запчасти Case 621B (9-062) - PEDESTAL AND COVERS, PEDESTAL WITH TAN COVERS (09) - CHASSIS/ATTACHMENTS

1

113656A1

PEDESTAL

Base, no longer available, order 193336A1 gray base shown below

1шт.

2

1344318C2

COVER

pedestal, lower left-hand side, no longer available, order 193325A1 gray cover shown below

1шт.

3

1970021C1

GROMMET

TRIM flexible, 324 mm (12-3/4 inch) long, pedestal

2шт.

4

1344080C4

COVER

pedestal, covers upper rear and right-hand and left-hand sides, no longer available, order 1344079C4 gray cover shown below

1шт.

5

1327574C1

FLANGE BOLT,Hex Serr, 5/16" - 18 x 1/2", Gr 5

hex flange, polyseal, 5/16 NC x 1/2 inch

4шт.

6

100142A1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 3/4", Gr 5

Special

6шт.

7

1344314C2

COVER

brake shaft, no longer available, order 193324A1 gray cover shown below

1шт.

8

1344379C1

COVER

pedestal, steering column, front

1шт.

9

1344380C1

COVER

steering column, rear, see Figure 4-14 for warning lamp and transmission speed selector control

1шт.

10

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

pan Phillips, special, 1/4 NC x 3/4 inch

8шт.

11

1327799C2

FLANGE BOLT,Hex, 3/8" - 16 x 1.25", Gr 5, Coated

hex washer head, special, 3/8 NC x 1-1/4 inch

4шт.

12

353-406

PLUG,Dome, .625" hole, Nylon

button, 5/8 inch, if used

2шт.

13

245918C1

LENS

rectangular, steering column cover, if used

2шт.

15

131-837

SPRING NUT,Tinn, U, 1/4"-20

8шт.

1

193336A1

SUPPORT

Base, pedestal, w/gray covers

1шт.

2

193325A1

COVER

pedestal, lower left-hand side, gray

1шт.

3

1970021C1

GROMMET

TRIM flexible, 324 mm (12-3/4 inch) long, pedestal w/gray covers

2шт.

4

1344079C4

COVER

upper pedestal, covers upper rear and right-hand and left-hand sides, gray, replaces 193337A1 cover

1шт.

5

1327574C1

FLANGE BOLT,Hex Serr, 5/16" - 18 x 1/2", Gr 5

hex flange, polyseal, 5/16 NC x 1/2 inch, pedestal w/gray covers

4шт.

6

100142A1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 3/4", Gr 5

Special, Pedestal w/gray covers

6шт.

7

193324A1

COVER

brake shaft, gray, pedestal

1шт.

8

242586A1

COVER

pedestal, steering column, front, gray, replaces 176769A1 cover

1шт.

9

176765A1

DOOR COVER

steering column, rear, gray, pedestal, see Figure 4-14 for warning lamp and transmission speed selector control

1шт.

10

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

pan Phillips, special, 1/4 NC x 3/4 inch, pedestal w/gray covers

4шт.

11

1327799C2

FLANGE BOLT,Hex, 3/8" - 16 x 1.25", Gr 5, Coated

hex washer head, special, 3/8 NC x 1-1/4 inch, pedestal w/gray covers

4шт.

12

353-406

PLUG,Dome, .625" hole, Nylon

button, 5/8 inch, if used, pedestal w/gray covers

2шт.

13

245918C1

LENS

rectangular, steering column cover, if used, gray, pedestal

2шт.

15

131-837

SPRING NUT,Tinn, U, 1/4"-20

Pedestal w/gray covers

8шт.

16

242586A1

COVER

pedestal, steering column, front, gray JEE0052701 to

1шт.
