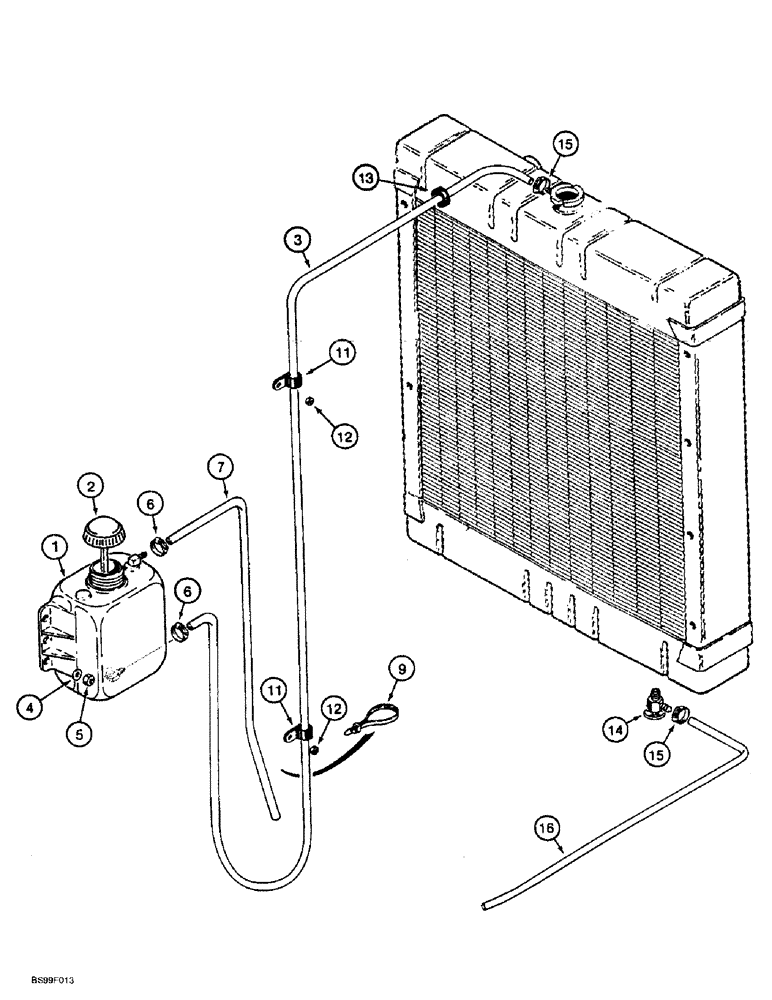

Запчасти Case 621B (2-08) - COOLANT RECOVERY SYSTEM (02) - ENGINE

1

103846A1

CONTAINER

RESERVOIR coolant recovery, 3.7 liters

1шт.

2

1547924C1

CAP

Recovery bottle

1шт.

3

L125870

HOSE,7.9 mm ID x 1370.00 mm, SAE 30R6

1шт.

4

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

2шт.

5

231-1445

NUT,5/16"-18, GB

2шт.

6

A171099

HOSE CLAMP,13.2mm - 15.4mm

spring type, overflow, Serial Range: hose-reservoir

1шт.

7

L115506

HOSE,7.9 mm ID x 1219.00 mm, SAE 30R1

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, hose

1шт.

11

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

2шт.

12

231-1406

LOCK NUT,3/8"-16, GB

2шт.

13

248-13107

GROMMET,3/4" ID x 1 1/16" Groove Dia, Str Cut

Rubber

1шт.

14

A27862

COCK, DRAIN

VALVE radiator

1шт.

15

A171099

HOSE CLAMP,13.2mm - 15.4mm

spring type, radiator overflow drain valve

3шт.

16

D71599

HOSE,6.40 mm ID x 1016.00 mm, SAE 30R6 or SAE 30R7

Cut From P/N A21561X

1шт.

A21561X

HOSE,6.35mm ID x 7620mm L

6 (1/4) x 13 (1/2) x 7620 mm (300 in)

1шт.
