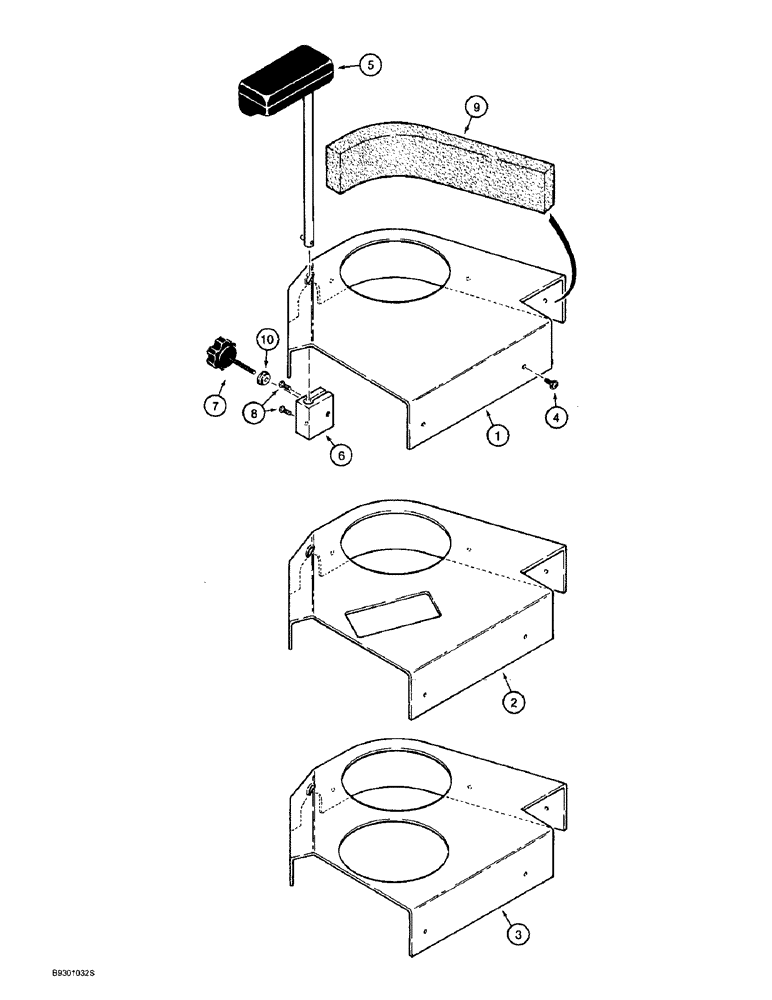

Запчасти Case 621B (9-060) - CONSOLE COVERS AND WRIST SUPPORT, COVERS, TAN (09) - CHASSIS/ATTACHMENTS

1

1977942C2

BRACKET

Cover, console, models with single or dual lever remote control valve, Black

1шт.

2

1977944C2

BRACKET

Cover, console, models with single or dual lever remote control and single lever auxiliary control

1шт.

3

1977943C2

BRACKET

Cover, console, models with two single lever remote controls

1шт.

4

265-16512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

No. 10-16 x 3/4 inch

5шт.

1

179359A1

DOOR COVER

console, models with single or dual lever remote control valve, gray

1шт.

2

179357A1

DOOR COVER

console, models with single or dual lever remote control and single lever auxiliary control, gray

1шт.

3

179358A1

BRACKET

Cover, console, models with two single lever remote controls, gray

1шт.

4

265-16512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

No. 10-16 x 3/4 inch, covers, gray

5шт.

5

1338223C1

PAD

wrist support, brown, adjustment knob

1шт.

5

179356A1

PADDING

wrist support, black, adjustment knob

1шт.

6

1338240C1

BASIC BLOCK

adjustment, wrist support and knob

1шт.

7

1999723C1

BUTTON

Knob, adjustment, wrist support

1шт.

8

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

Wrist support and adjustment knob

2шт.

9

1981910C1

INSULATION,61mm W x 365mm L x 25mm Thk

adhesive-backed, 365 mm (14-3/8 inch) long, models with canopy, wrist support and adjustment knob

1шт.

10

700711545

CUP WASHER

SPACER adjustment knob, wrist support

1шт.
