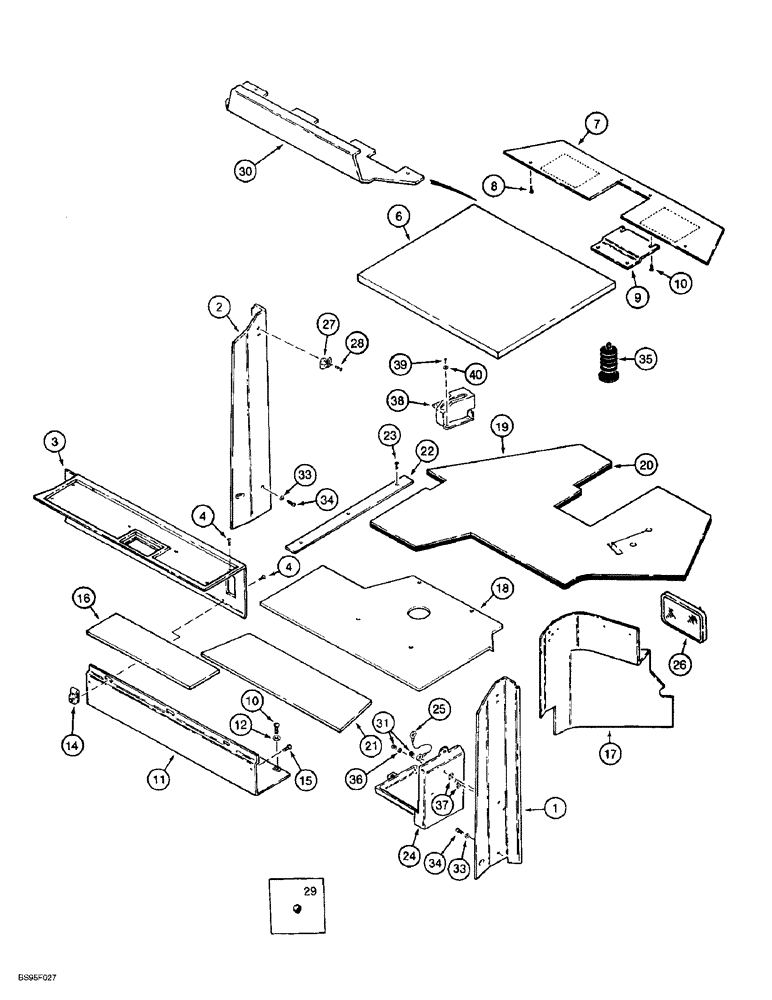

Запчасти Case 621B (9-059A) - CAB INTERIOR, GRAY (09) - CHASSIS/ATTACHMENTS

1

179326A1

PADDING

Cover, vinyl, right-hand rear

1шт.

2

179327A1

PADDING

Cover, vinyl, left-hand rear

1шт.

3

179463A1

DOOR COVER

formed, rear deck

1шт.

4

265-16512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

No. 10-16 x 3/4 inch

9шт.

6

179302A1

PADDING

Headliner, vinyl, center

1шт.

7

179304A1

PADDING

Headliner, vinyl, front

1шт.

8

265-16512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

No. 10-16 x 3/4 inch

2шт.

9

193320A1

DOOR COVER

mounting, use on units without radio

1шт.

10

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

1/4 NC x 3/4 inch

8шт.

11

193653A1

HOOD

Cover, rear enclosure, behind seat

1шт.

12

1990502C1

WASHER

17/64 x 13/16 x 5/64 inch

4шт.

14

60-6708T1

NUT

U-type, special

3шт.

15

143309C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 16 x 1/2"

No. 10-16 x 1/2 inch

2шт.

16

1339754C3

FOAM INSULATION

PAD insulation, rear panel

1шт.

17

179308A1

PADDING

Cover, vinyl, right-hand console

1шт.

18

1999639C1

CARPET

Floormat, seat support

1шт.

19

L129442

FLOOR MAT

cab

1шт.

20

L129443

PADDING

insulation, floormat

1шт.

21

1339755C4

NOISE PROTECTION

PAD insulation, rear floor

1шт.

22

1339790C1

COVER

seal channel

1шт.

23

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

1/4 NC x 3/4 inch

3шт.

24

R46464

CASE

Box, operators manual

1шт.

25

D126821

CABLE

manual retaining

1шт.

26

A177462

MIRROR

rear view, includes mounting hardware, replaces L74714 mirror assembly

1шт.

27

114549A1

COAT HOOK

2шт.

28

260-14412

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/4"

No. 8-18 x 3/4 inch

2шт.

29

353-408

PLUG,Dome, .750" hole, Nylon

button, 3/4 inch, cab floor

4шт.

29

353-409

PLUG,Dome, .812" hole, Nylon

button, cab floor, inside cab door

1шт.

29

353-411

PLUG,Dome, 1.000" hole, Nylon

Upper RH front and seat pedestal, LH side

2шт.

30

179297A1

PAD

PANEL front insulation, fits in headliner area between Ref. 6 and 7

1шт.

31

1276051C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1"

1/4 NC x 1 inch

2шт.

33

1990502C1

WASHER

17/64 x 13/16 x 5/64 inch

2шт.

34

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

1/4 NC x 3/4 inch

2шт.

35

113833A1

BOOT

rubber, accelerator pedal rod

1шт.

36

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

2шт.

37

131-610

SPRING NUT,U, Ret, 1/4"-20

2шт.

38

224510A1

COVER

lever, parking brake, replaces 193723A1 cover

1шт.

39

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

1/4 NC x 3/4 inch

4шт.

40

195-81004

WASHER,0.31" ID x 0.75" OD x 0.07" Thk

5/16 x 3/4 x 1/16 inch

4шт.
