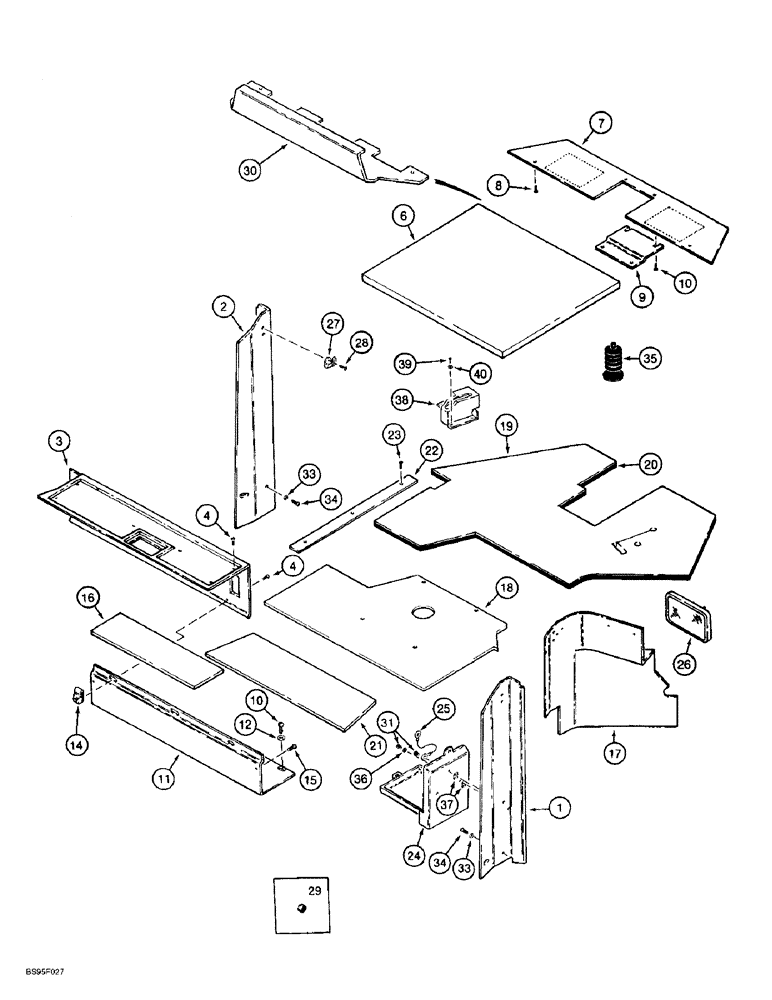

Запчасти Case 621B (9-058) - CAB INTERIOR, TAN (09) - CHASSIS/ATTACHMENTS

1

114919A1

COWL

Cover, padded vinyl, right-hand rear

1шт.

2

114920A1

COWL

Cover, padded vinyl, left-hand rear

1шт.

3

1999768C1

COVER

formed, rear deck

1шт.

4

265-16512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

No. 10-16 x 3/4 inch

9шт.

6

1973533C2

PADDING

Headliner, vinyl, center

1шт.

7

1339946C4

PADDING

Headliner, vinyl, front

1шт.

8

265-16512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

No. 10-16 x 3/4 inch

2шт.

9

193320A1

DOOR COVER

mounting, use on units without radio, replaces 1339883C1 cover

1шт.

10

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

1/4 NC x 3/4 inch

8шт.

11

193653A1

HOOD

Cover, rear enclosure, behind seat, replaces 1339895C4 cover

1шт.

12

1990502C1

WASHER

17/64 x 13/16 x 5/64 inch

4шт.

14

131-143

SPRING NUT,Tinn, U, #10-24

3шт.

15

143309C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 16 x 1/2"

No. 10-16 x 1/2 inch

2шт.

16

1339754C3

FOAM INSULATION

Pad, insulation, rear panel

1шт.

17

1339941C3

PADDING

Cover, vinyl, right-hand console

1шт.

18

1339951C2

MAT

Floor, seat support

1шт.

19

113835A1

MAT

Floor, cab

1шт.

20

113834A1

PADDING

Insulation, floormat

1шт.

21

1339755C4

NOISE PROTECTION

PAD insulation, rear floor

1шт.

22

1339790C1

COVER

seal channel

1шт.

23

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

1/4 NC x 3/4 inch

3шт.

24

R46464

CASE

Box, operators manual

1шт.

25

D126821

CABLE

manual retaining, replaces R46465 cord

1шт.

26

A177462

MIRROR

rear view, includes mounting hardware, replaces L74714 mirror

1шт.

27

114549A1

COAT HOOK

2шт.

28

260-14412

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/4"

No. 8-18 x 3/4 inch

2шт.

29

353-404

PLUG,Dome, .500" hole, Nylon

Upper RH panel above window, if used

1шт.

29

353-408

PLUG,Dome, .750" hole, Nylon

button, 3/4 inch, cab floor

1-4шт.

29

353-409

PLUG,Dome, .812" hole, Nylon

button, cab floor, inside cab floor

1шт.

29

353-411

PLUG,Dome, 1.000" hole, Nylon

Seat pedestal, LH side and upper

1-2шт.

30

1999753C1

PANEL

front insulation, fits in headliner area between Ref. 6 and 7

1шт.

31

1276051C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1"

1/4 NC x 1 inch

2шт.

33

1990502C1

WASHER

17/64 x 13/16 x 5/64 inch

2шт.

34

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

1/4 NC x 3/4 inch

2шт.

35

113833A1

BOOT

rubber, accelerator pedal rod

1шт.

36

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

2шт.

37

131-610

SPRING NUT,U, Ret, 1/4"-20

2шт.

38

101714A1

COVER

lever, parking brake

1шт.

39

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

1/4 NC x 3/4 inch

4шт.

40

195-81004

WASHER,0.31" ID x 0.75" OD x 0.07" Thk

5/16 x 3/4 x 1/16 inch

4шт.
