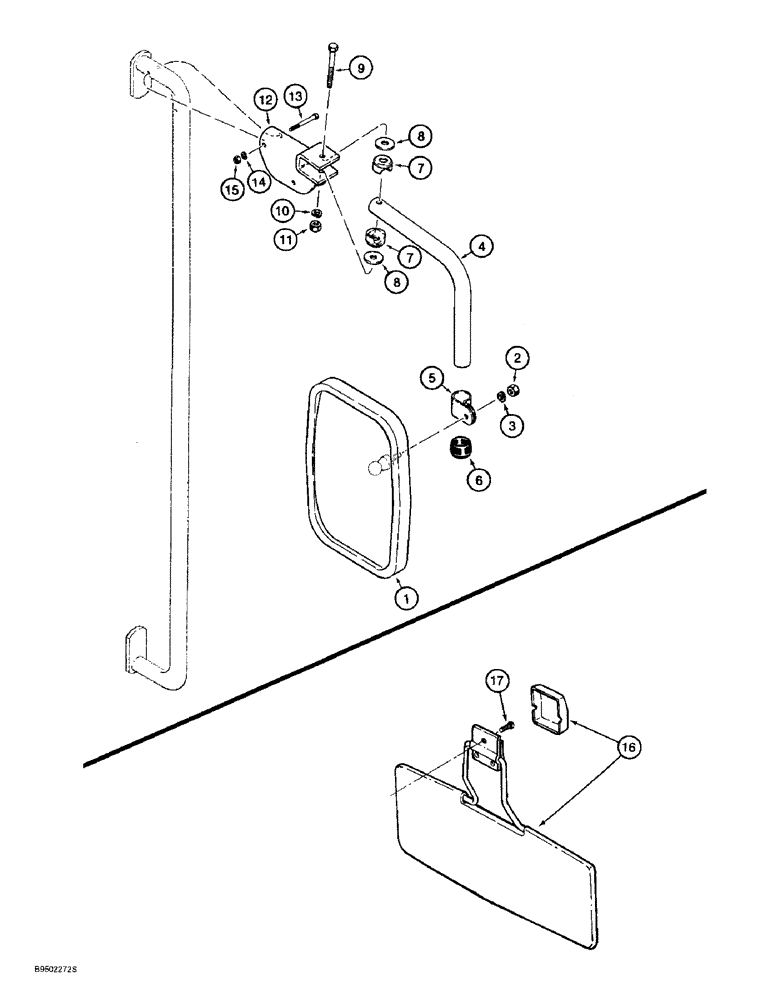

Запчасти Case 621B (9-056) - OUTER MIRROR AND SUN VISOR (09) - CHASSIS/ATTACHMENTS

1

1283403C1

MIRROR

rear view, outer

2шт.

2

825-1410

NUT,M10, Cl 8

Outer mirror

2шт.

3

892-11010

LOCK WASHER,M10

Outer mirror

2шт.

4

1977805C1

ARM

mirror mounting, outer

2шт.

5

1977834C1

MOUNTING CLIP

mirror, outer

2шт.

6

1977833C1

CAP

plug, outer mirror

2шт.

7

1977831C1

MOUNTING CLIP

mirror, outer

4шт.

8

1977832C1

WASHER

brass, special, outer mirror

4шт.

9

113-2267

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Outer mirror

2шт.

10

192-81003

LOCK WASHER,3/8"

Outer mirror

2шт.

11

231-1446

NUT,3/8" - 16, Gr 5

Outer mirror

2шт.

12

1977802C1

SUPPORT

BRACKET mirror mounting, outer

2шт.

13

113-70

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Outer mirror

4шт.

14

192-81007

LOCK WASHER,1/4"

Outer mirror

4шт.

15

129-119

NUT,1/4"-20, G5

Outer mirror

4шт.

16

E47027

VISOR, SUN

shade

1шт.

17

99997C1

SELF-TAP SCREW,Cross Pan Hd, #10-24 x 3/4"

pan head, No. 10 NC x 3/4 inch, sun visor

3шт.
