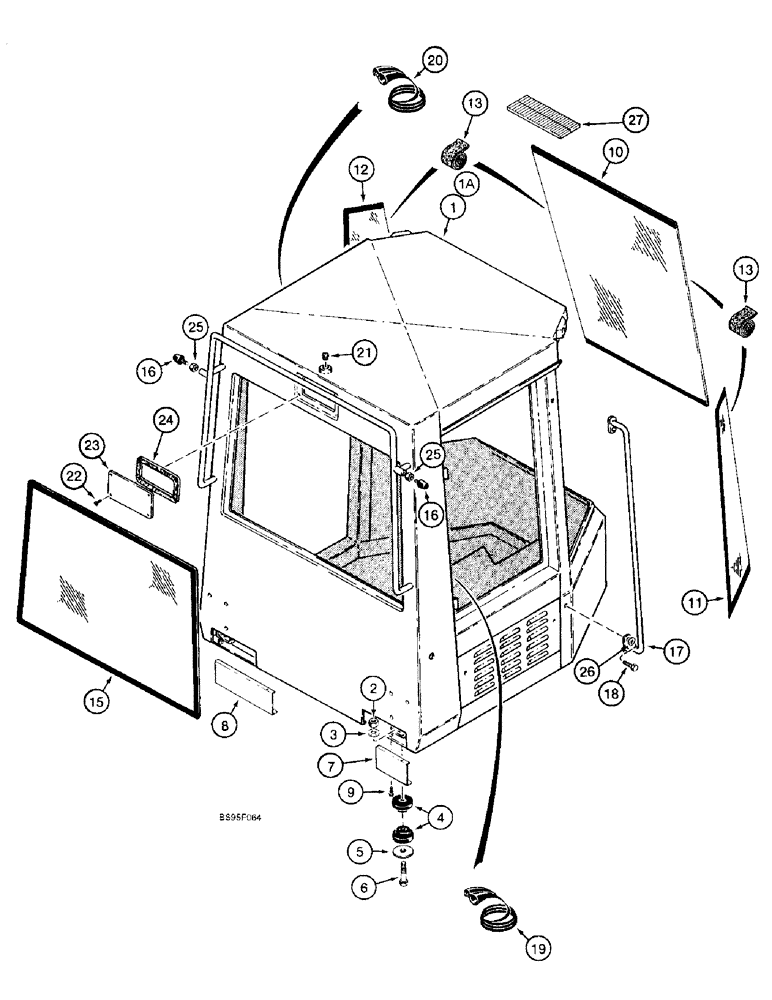

Запчасти Case 621B (9-053A) - CAB MOUNTING AND GLASS, GRAY (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CAB ASSEMBLY, ROPS, gray, machinery item, order from Machinery Price List

1шт.

1a

197810A1

CAB

Assy, shell, service replacement, gray

1шт.

The cab shell includes Ref. 10 - 27 on this figure, Ref. 8 - 11 on Figure 4-16, Ref. 1 - 24, 39 and 40 on Figure 4-54, Ref. 6 and 29 (353-411) on Figure 9-059A, Ref. 2 - 6, 21 -22 on Figure 9-064, and all items on Figures 9-066 - 9-070. Cab shell is not heater or air conditioning dependent. It does not contain steering pedestal, harnesses, seat, floor mats or any plastics and vinyl, except for the center headliner.

1шт.

2

329-1014

NUT,7/8"-9, G8

4шт.

3

27914R1

WASHER,15/16" x 2 1/4" x .219", HDN

15/16 x 1-3/4 x 7/32 inch, hardened

4шт.

4

R54331

HITCH DAMPER

Mount, rubber, cab support

8шт.

5

1332154C1

WASHER,23mm ID x 95.3mm OD x 12.7mm Thk

spacer, special

4шт.

6

326-1488

BOLT,Hex, 7/8" - 9 x 5-1/2", Gr 8

4шт.

7

193322A1

COVER

rear, right hand mounting access

1шт.

8

193321A1

COVER

rear, left hand mounting access

1шт.

9

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

10

108425A2

GLASS

front, center, also order Ref. 13 and 14

1шт.

11

108427A2

GLASS

front, right hand side, also order Ref. 13 and 14

1шт.

12

108426A2

GLASS

front, left hand side, also order Ref. 13 and 14

1шт.

13

114327A1

TAPE

polyester, 1350 mm (53-1/8 inch) long

2шт.

14

114328A1

SEALANT

silicone, used with Ref. 13 tape, not shown

1шт.

15

1340425C1

GLASS,CAB

rear

1шт.

16

N7673

BUMPER

2шт.

17

193338A1

HANDLE

RAIL front

2шт.

18

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

hex serrated flange, 1/2 NC x 1 inch

4шт.

19

1344165C1

SEAL

right hand cab, 3510 mm (138-3/16 inch) long

1шт.

20

1987253C1

DOOR SEAL

door, left hand cab, 4191 mm (165 inch) long

1шт.

21

221-846

PLUG,Hex Soc, 1"-11 1/2

hex socket, 1 inch PT

1шт.

22

140-112

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

4шт.

23

197808A1

COVER

rear wiper mounting hole, Includes: Ref. 24, gray, use on units without rear wipers

1шт.

24

1345074C1

GASKET,5mm Thk

cover, one piece

1шт.

25

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

26

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 7/64 inch

4шт.

27

97268C1

SPACER

bonded glass

6шт.
