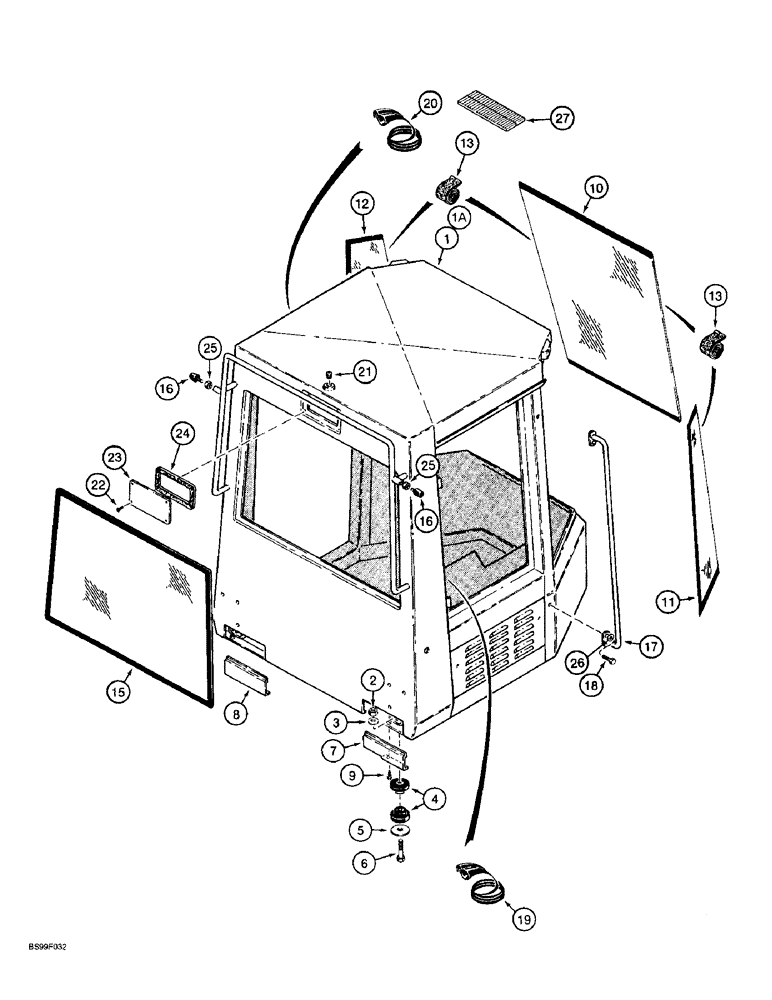

Запчасти Case 621B (9-052) - CAB MOUNTING AND GLASS, TAN (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CAB ASSEMBLY, ROPS, machinery item, order from Machinery Price List

1шт.

1a

197028A1

CAB

ASSEMBLY shell, service replacement, tan

1шт.

The cab shell includes Ref. 10 - 27 on this figure, Ref. 8 - 11 on Figure 4-16, Ref. 1 - 24, 39 and 40 on Figure 4-54, Ref. 6 and 29 (353-411) on Figure 9-059A, Ref. 2 - 6, 20 and 21 on Figure 9-064, and all items on Figures 9-066 - 9-070. Cab shell is not heater or air conditioning dependent. It does not contain steering pedestal, harnesses, seat, floor mats or any plastics and vinyl, except for the center headliner.

1шт.

2

329-1014

NUT,7/8"-9, G8

4шт.

3

27914R1

WASHER,15/16" x 2 1/4" x .219", HDN

15/16 x 1-3/4 x 7/32

4шт.

4

R54331

HITCH DAMPER

Mount, rubber, cab support

8шт.

5

1332154C1

WASHER,23mm ID x 95.3mm OD x 12.7mm Thk

spacer, special

4шт.

6

326-1488

BOLT,Hex, 7/8" - 9 x 5-1/2", Gr 8

4шт.

7

1977687C3

COVER

Rear, Right Hand Mounting Access

1шт.

8

1339928C2

COVER

rear, mounting access

1шт.

9

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

10

108425A2

GLASS

Front, Center, Also Order Ref. 13 and 14

1шт.

11

108427A2

GLASS

Front, Right Hand Side, Also Order Ref. 13 and 14

1шт.

12

108426A2

GLASS

Front, Left Hand Side, Also Order Ref. 13 and 14

1шт.

13

114327A1

TAPE

Polyester, 1350 mm (53-1/8 inch) long

2шт.

14

114328A1

SEALANT

Silicone, Used With Ref. 13 Tape, Not Illustrated

1шт.

15

1340425C1

GLASS,CAB

rear

1шт.

16

N7673

BUMPER

2шт.

17

1339767C2

HANDLE

front

2шт.

18

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

1/2 x 1

4шт.

19

1344165C1

SEAL

3510 mm (138-3/16 inch) long, Right Hand Cab

1шт.

20

1987253C1

DOOR SEAL

4191 mm (165 inch) long, Door, Left Hand Cab

1шт.

21

353-679

PLUG,Hex Soc, 1"-11 1/2 NPT

1 in PT

1шт.

22

140-112

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

4шт.

23

1345260C1

PLATE

Cover, Rear Wiper Mounting Hole, Tan, Use On Units Without Rear Wipers, Includes: Ref. 24

1шт.

24

1345074C1

GASKET,5mm Thk

cover, one piece

1шт.

25

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

26

495-21056

WASHER,1/2"

9/16 x 1-3/8 x 7/64

4шт.

27

97268C1

SPACER

bonded glass

6шт.
