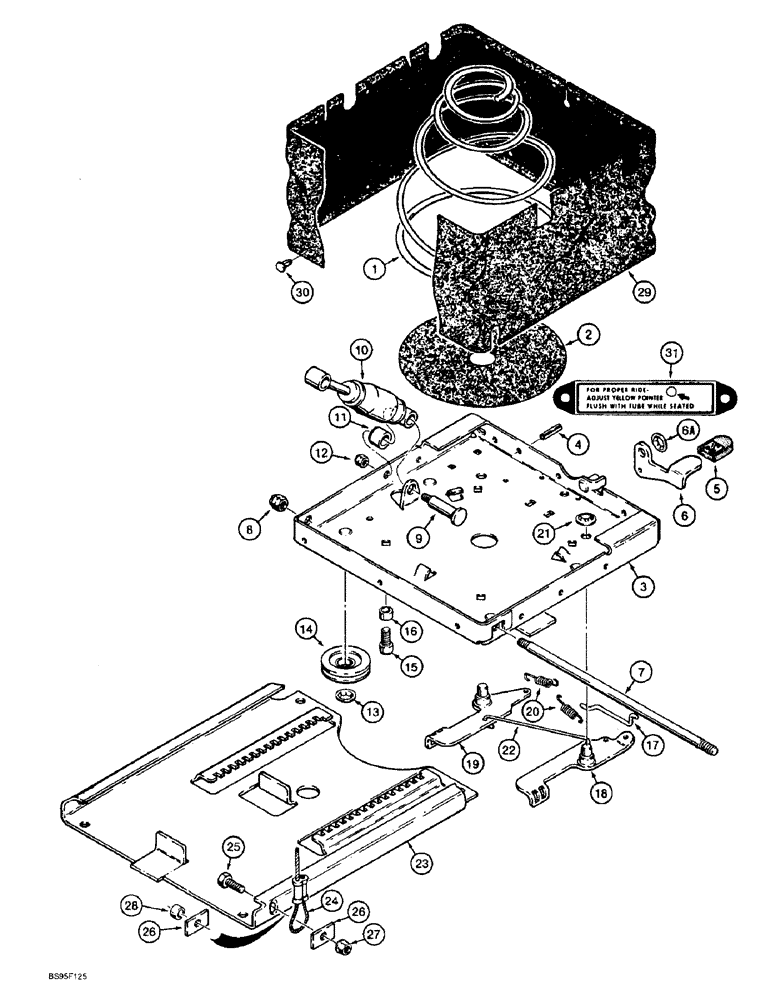

Запчасти Case 621B (9-051G) - SUSPENSION SEATS, GRAY (09) - CHASSIS/ATTACHMENTS

177639A1

SEAT

ASSEMBLY suspension, gray, vinyl, cab or canopy codels, Includes: Ref. 1 - 31 on this figure and parts on Figures 9-051A and 9-051E

1шт.

177638A1

SEAT

ASSEMBLY suspension, gray cloth, cab models, Includes: Ref. 1 - 31 on this figure and parts on Figures 9-051A and 9-051E

1шт.

130676A1

KIT

KIT spring, Includes: Ref. 1, 2 and (2) 230-4218 nuts and (1) 230-4216 nut, not illustrated

1шт.

1

NSS

NOT SOLD SEPARAT

Spring, conical

1шт.

2

NSS

NOT SOLD SEPARAT

Pad, spring

1шт.

3

188248A1

HOUSING

lower

1шт.

4

38-11616

LOCK PIN,1/4" x 1", Slotted

1шт.

5

D82819

CAP

slide lever

1шт.

6

D82817

LEVER

slide

1шт.

6a

131-425

PUSH-ON NUT,Push, 1/2"

1шт.

7

112884A1

SHAFT,368mm L

bearing

1шт.

64918C1

SHOCK ABSORBER

KIT, Includes: Ref. 8 - 12

1шт.

8

230-4218

LOCK NUT,1/2"-13, GA

1/2 NC

1шт.

9

NSS

NOT SOLD SEPARAT

Bolt shoulder, special

1шт.

10

NSS

NOT SOLD SEPARAT

Absorber, shock, seat

1шт.

11

NSS

NOT SOLD SEPARAT

Bearing

2шт.

11a

NSS

NOT SOLD SEPARAT

Spacer, Not Illustrated

2шт.

12

230-4216

LOCK NUT,3/8"-16, GA

1шт.

1977726C1

SLIDE

KIT track, no longer available, order Ref. 13 and 14

1шт.

13

131-425

PUSH-ON NUT,Push, 1/2"

4шт.

14

D82820

ROLLER

slide track

4шт.

15

165-181

BOLT,1/2" - 13 x 7/8"

1/2 NC x 7/8

1шт.

16

N6713

SPACER

bolt

1шт.

17

D82814

ROD

latch

1шт.

188246A1

KIT

slide latch, Includes: Ref. 18 - 21

1шт.

18

NSS

NOT SOLD SEPARAT

Latch, right-hand

1шт.

19

NSS

NOT SOLD SEPARAT

Latch, left-hand

1шт.

20

D82815

SPRING

latch

2шт.

21

131-425

PUSH-ON NUT,Push, 1/2"

2шт.

22

D82816

LINK

latch

1шт.

23

188249A1

PLATE

slide base, seat

1шт.

188247A1

KIT

Tether Cable, Includes: Ref. 24 - 28 on this figure and Ref. 22 - 26 on Figure 9-051A

1шт.

24

NSS

NOT SOLD SEPARAT

Cable, plate

2шт.

25

326-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

2шт.

26

NSS

NOT SOLD SEPARAT

Washer, special

4шт.

27

230-4216

LOCK NUT,3/8"-16, GA

2шт.

28

NSS

NOT SOLD SEPARAT

Spacer, cable mounting

2шт.

1977727C1

BOOT

KIT vinyl cover, Includes: Ref. 29 - 31

1шт.

29

N6295

BOOT

Cover, vinyl

1шт.

30

151-705

CLIP,Rd 1/2" Hd, 1/4" Hole

Retainer, Plastic, 1/4 hole size x 1/2 inch head dia

21шт.

31

A47778

DECAL

for proper ride

1шт.

1977722C1

SUSPENSION BLOCK

KIT seat support, Includes: Ref. 1, 2, 4 - 6, 7 - 11, 12 - 20, 22, 29 - 31 on this figure and parts on Figures 9-051A and 9-051E

1шт.
