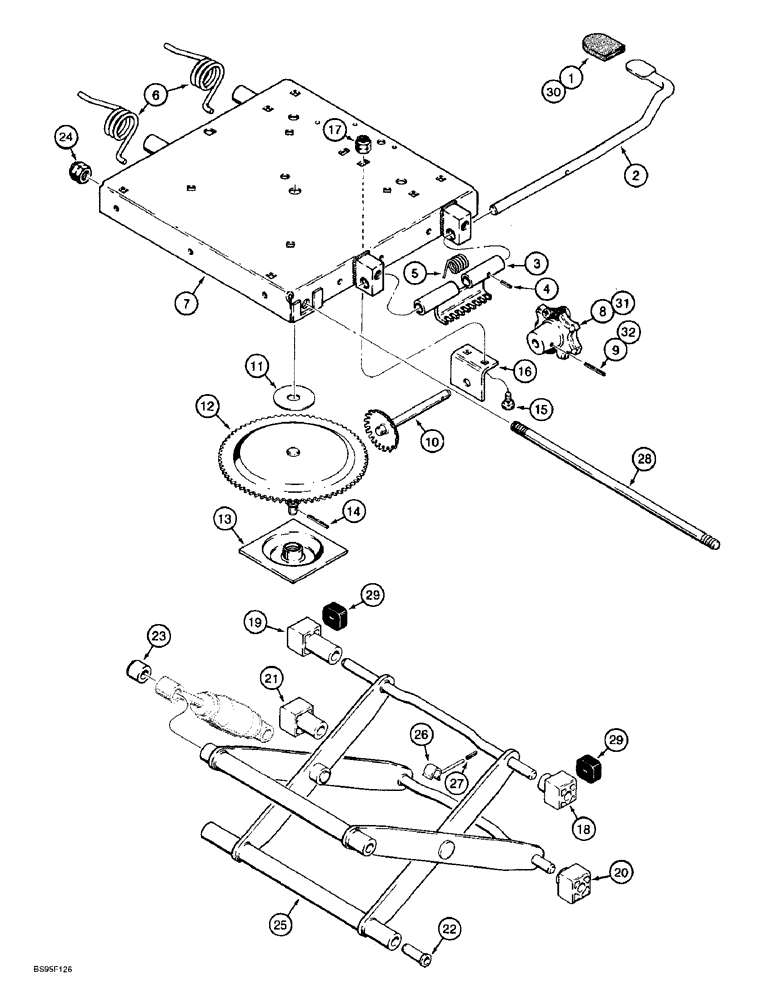

Запчасти Case 621B (9-051E) - SUSPENSION SEATS, GRAY (09) - CHASSIS/ATTACHMENTS

177639A1

SEAT

ASSEMBLY suspension, gray, vinyl, cab or canopy models, Includes: Ref. 1 - 32 on this figure and parts on Figures 9-051A and 9-051G

1шт.

177638A1

SEAT

ASSEMBLY suspension, gray cloth, cab models, Includes: Ref. 1 - 32 on this figure and parts on Figures 9-051A and 9-051G

1шт.

130672A1

KIT

height adjustment, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

Cap, height adjustment lever

1шт.

2

NSS

NOT SOLD SEPARAT

Lever, height adjustment

1шт.

3

NSS

NOT SOLD SEPARAT

Latch, lever

1шт.

4

38-31012

PIN,3.96mm OD x 19.05mm L, Coiled

1шт.

5

A47382

SPRING

latch

1шт.

6

A47384

SPRING

housing

2шт.

7

A47761

PLATE

Housing, upper

1шт.

123969A1

SEAT ACCESSORY

Kit, Knob and shaft assy, Incl Ref. 8, 9 and shaft portion of Ref 10

1шт.

8

NSS

NOT SOLD SEPARAT

Knob, Weight Adjusting, Includes Handle and Decals, Which Are Not Serviced Separately

1шт.

9

38-31016

PIN,5/32" x 1", Coiled

2шт.

130674A1

SET

KIT weight adjustment, Includes: Ref. 10 - 14

1шт.

10

NSS

NOT SOLD SEPARAT

Shaft, Gear, Adjustment, Weight

1шт.

11

NSS

NOT SOLD SEPARAT

Washer, thrust

1шт.

12

NSS

NOT SOLD SEPARAT

Gear, suspension plate

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER spring

1шт.

14

38-11616

LOCK PIN,1/4" x 1", Slotted

1шт.

15

411-48

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 2

1/4 NC x 1/2, grade 2

2шт.

16

A45531

BRACKET

shaft

1шт.

17

231-1444

NUT,1/4"-20, GB

2шт.

1250509C1

BUSHING

KIT slider block, Includes: Ref. 18 - 24

1шт.

18

NSS

NOT SOLD SEPARAT

Block, Slider 2-9/16 inch wide

1шт.

19

NSS

NOT SOLD SEPARAT

Block, Slider 1-9/16 inch wide

1шт.

20

NSS

NOT SOLD SEPARAT

Block, Slider 2-3/16 inch wide

1шт.

21

NSS

NOT SOLD SEPARAT

Block, Slider 1-3/16 inch wide

1шт.

22

NSS

NOT SOLD SEPARAT

TUBE bearing

4шт.

23

NSS

NOT SOLD SEPARAT

Bearing, shock absorber

2шт.

24

230-4218

LOCK NUT,1/2"-13, GA

1/2 NC

2шт.

25

A47759

ARM

Suspension

1шт.

130673A1

SET OF PARTS

KIT height indicator, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

Indicator, ride height

1шт.

27

38-11616

LOCK PIN,1/4" x 1", Slotted

1шт.

28

112884A1

SHAFT,368mm L

bearing

1шт.

29

A45054

BUMPER,Neoprene

seat

2шт.

130921A1

KNOB

KIT, Includes: Ref. 30 - 32 on this figure and Ref. 16 on Figure 9-051A

1шт.

30

NSS

NOT SOLD SEPARAT

Cap, height adjustment lever

1шт.

31

NSS

NOT SOLD SEPARAT

Knob, Weight Adjusting, Includes Handle and Decals, Which Are Not Serviced Separately

1шт.

32

38-31016

PIN,5/32" x 1", Coiled

1шт.

1977722C1

SUSPENSION BLOCK

KIT seat support, Includes 2 - 25, 27 - 29, 31 and 32 on this figure and parts on Figures 9-051A and 9-051G

1шт.
