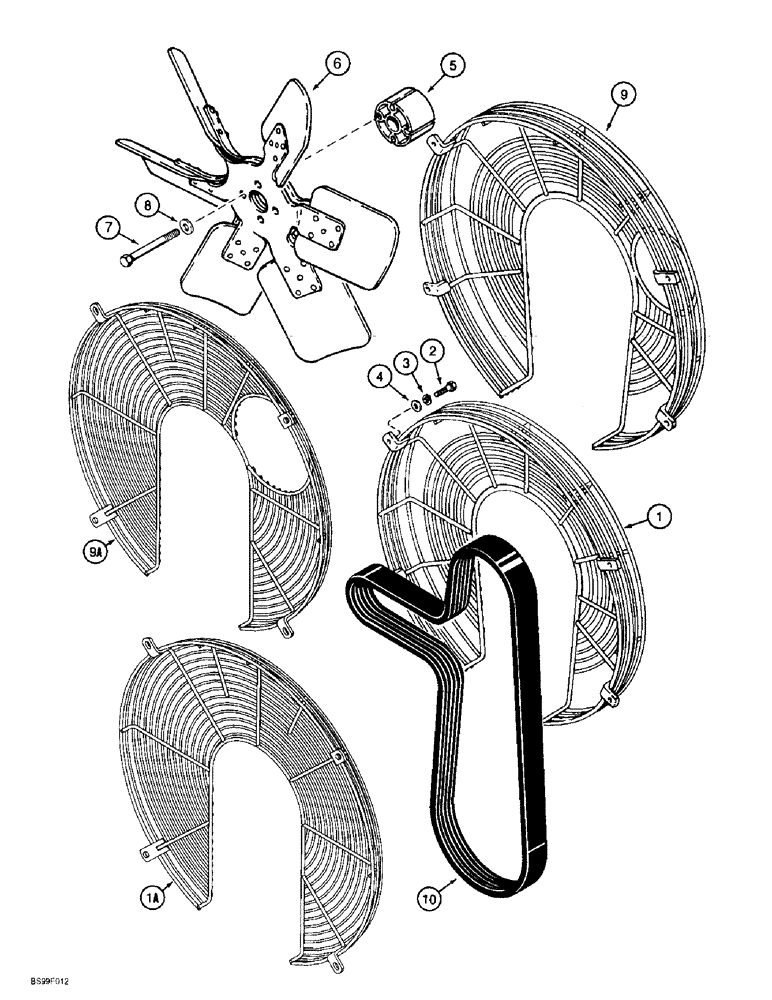

Запчасти Case 621B (2-06) - FAN AND FAN BELTS (02) - ENGINE

1

L127678

SIEVE

GUARD Fan, used on models without air conditioning, Serial Range: -JEE0053350

1шт.

1a

255748A1

GUARD

Fan, used on models without air conditioning, Start Serial: JEE0053350

1шт.

2

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

3

892-11008

LOCK WASHER,8mm ID

4шт.

4

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

4шт.

5

A184524

SPACER

fan

1шт.

6

A189402

FAN

Pusher

1шт.

7

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

4шт.

8

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

9

L127463

GUARD

Fan, used on models with air conditioning, Serial Range: -JEE0053350

1шт.

9a

255749A1

GUARD

Fan, used on models with air conditioning, Start Serial: JEE0053350

1шт.

10

J911566

V-BELT,27.92mm W x 1612.9mm L, 8 Ribs

Fan

1шт.
