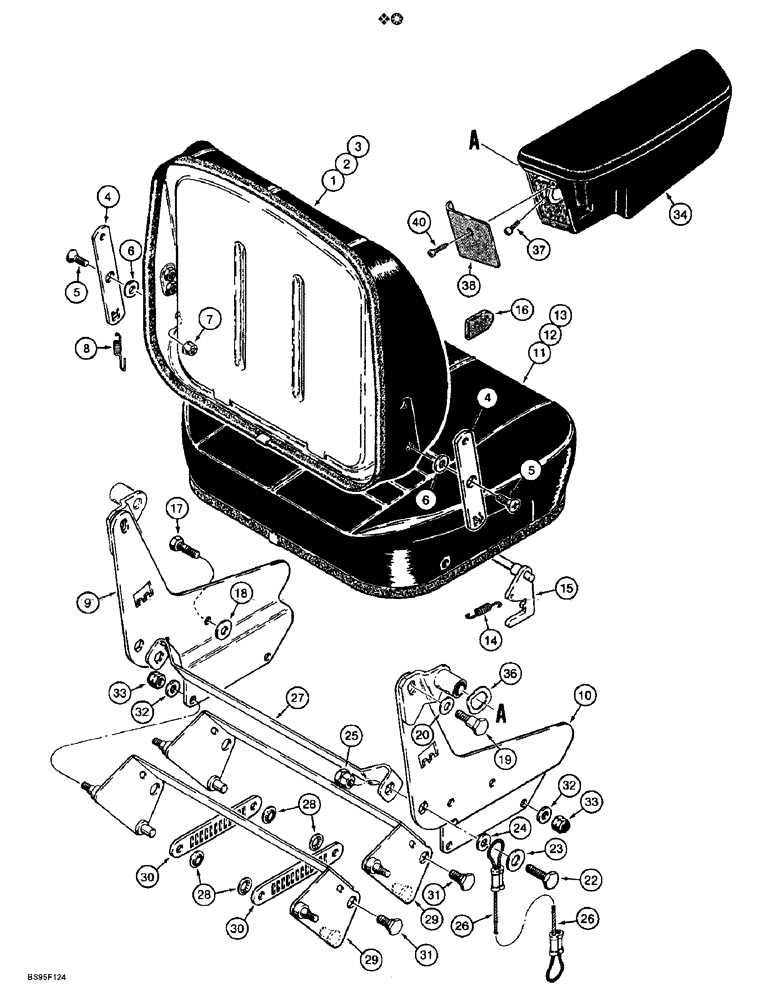

Запчасти Case 621B (9-051A) - SUSPENSION SEATS, GRAY (09) - CHASSIS/ATTACHMENTS

177639A1

SEAT

ASSEMBLY suspension, gray, vinyl, cab or canopy models, Includes: Ref. 1 - 40 on this figure and parts on Figures 9-051E and 9-051G

1шт.

177638A1

SEAT

ASSEMBLY suspension, gray cloth, cab models, Includes: Ref. 1 - 40 on this figure and parts on Figures 9-051E and 9-051G

1шт.

185369A1

KIT

CUSHION ASSEMBLY backrest, vinyl, Includes: Ref. 1 - 3, used on 177639A1 seat assy

1шт.

185367A1

KIT

CUSHION ASSEBMLY backrest, cloth, Includes: Ref. 1 - 3, used on 177638A1 seat assy

1шт.

1

NSS

NOT SOLD SEPARAT

Cushion, Seat Back, includes Pad, Pan and Cover

1шт.

2

N9034

SEAT

Trim, retaining, cushion

1шт.

3

N6674

CLIP

trim

1шт.

4

N8679

LINK

seat back

2шт.

5

473-13816

SCREW,FLAT, 3/8" - 16 x 1"

3/8 NC x 1 inch

2шт.

6

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

7

231-5306

FLANGE NUT,Flg, 3/8"-16

2шт.

8

N8680

SPRING

seat back link

2шт.

9

NSS

NOT SOLD SEPARAT

Bracket, seat, left-hand

1шт.

10

NSS

NOT SOLD SEPARAT

Bracket, seat, right-hand

1шт.

185368A1

KIT

CUSHION ASSEMBLY seat, vinyl, 177639A1 seat assy, Includes: Ref. 11 - 13

1шт.

185366A1

CUSHION

ASSEMBLY seat, cloth, 177638A1 seat assy, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

Cushion, Seat Bottom, Includes Pad, Pan and Cover

1шт.

12

N9034

SEAT

Trim, retaining, cushion

1шт.

13

N6674

CLIP

trim

1шт.

14

D82815

SPRING

tilt shaft

2шт.

15

D82868

SHAFT

seat tilt

1шт.

130921A1

KNOB

KIT, Includes: Ref. 16 on this figure and Ref. 30 - 32 on Figure 9-051E

1шт.

16

A47347

CAP

Tilt Lever, No Longer Availabe, Order 130921A1 Kit

1шт.

17

328-716

BOLT,Hex, 7/16" - 20 x 1", Gr 8

2шт.

18

A45110

WASHER

special

2шт.

19

N14251

BOLT

3/8 NC x 1-21/32 in, Back, Tilt

2шт.

20

495-11066

WASHER,5/8", SAE

21/32 x 1-5/16 x 3/32

2шт.

21

230-4216

LOCK NUT,3/8"-16, GA

4шт.

188247A1

KIT

tether cable, Includes: Ref. 22 - 26 on this figure and Ref. 24 - 28 on Figure 9-051G

1шт.

22

NSS

NOT SOLD SEPARAT

Bolt, special

2шт.

23

NSS

NOT SOLD SEPARAT

Washer, flat, large

4шт.

24

NSS

NOT SOLD SEPARAT

Washer, flat, small

2шт.

25

NSS

NOT SOLD SEPARAT

Nut, hex, special

2шт.

26

NSS

NOT SOLD SEPARAT

Cable, side brackets

2шт.

27

D82871

BAR

spacer

1шт.

188250A1

LINK ASSY.

KIT cross, Includes: Ref. 28 - 30

2шт.

28

131-425

PUSH-ON NUT,Push, 1/2"

4шт.

Part of Seat Suspension Support Kit P/N 1977722C1

1шт.

29

NSS

NOT SOLD SEPARAT

Bracket, tie

2шт.

Part of Seat Suspension Support Kit P/N 1977722C1

1шт.

30

NSS

NOT SOLD SEPARAT

Lever, adjusting

2шт.

Part of Seat Suspension Support Kit P/N 1977722C1

1шт.

31

180627A1

LOCK BOLT,Shldr, Hex, 1/2" - 13 x 19mm

Shoulder, Tie Bracket Retaining, Replaces A45473

4шт.

32

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

33

231-5346

FLANGE NUT,Flg, 3/8"-16

4шт.

A45489

ARMREST

KIT right hand, Includes: Ref. 34, 36, 37, 38, 40

1шт.

A45488

ARMREST

KIT left hand, Includes: Ref. 35, 36, 37, 39, 40

1шт.

34

NSS

NOT SOLD SEPARAT

ARMREST seat, right-hand

1шт.

35

NSS

NOT SOLD SEPARAT

ARMREST seat, left hand

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER wave, 1-1/8 inch ID

2шт.

37

413-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

hex, 3/8 NC x 4-1/4 inch

1шт.

38

NSS

NOT SOLD SEPARAT

Plate, Cover, Right Hand Armrest

1шт.

39

NSS

NOT SOLD SEPARAT

Plate, Cover, Left Hand Armrest, Not Illustrated

1шт.

40

263-50510

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

1шт.

1977722C1

SUSPENSION BLOCK

KIT seat support, Includes: Ref. 28, 29, 30 on this figure and parts on Figures 9-051E and 9-051G

1шт.
