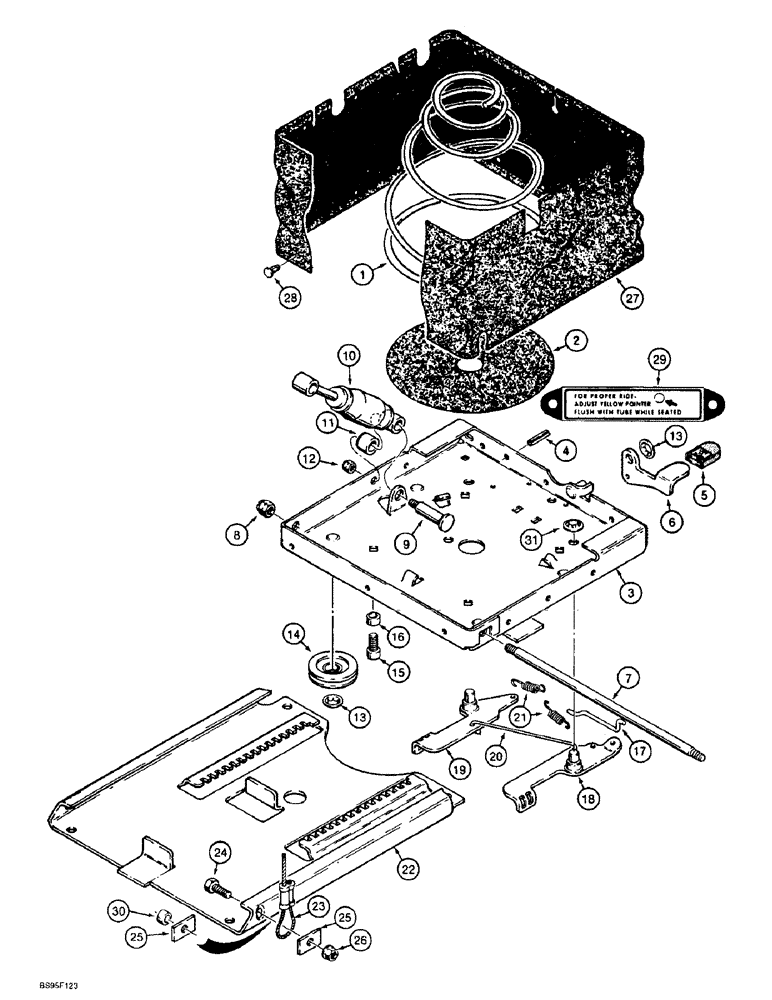

Запчасти Case 621B (9-050) - SUSPENSION SEATS, BLACK (09) - CHASSIS/ATTACHMENTS

1954778C1

SEAT ASSY.

suspension, vinyl, cab or canopy models, Includes: Ref. 1 - 31 on this figure and parts on Figures 9-046 and 9-048

1шт.

97150C1

SEAT ASSY.

suspension, cloth, cab models, Includes: Ref. 1 - 31 on this figure and parts on Figures 9-046 and 9-048, no longer available, order seat assy 1954778C1

1шт.

130676A1

KIT

KIT spring, Includes: Ref. 1 and 2 and (2) 230-4218 nuts and (1) 230-4216 nut, Not Illustrated

1шт.

1

A45497

SPRING

Conical, No Longer Available, Order 130676A1

1шт.

2

A45530

PAD

Spring, No Longer Available, Order 130676A1

1шт.

3

NSS

NOT SOLD SEPARAT

Housing, lower

1шт.

4

38-11616

LOCK PIN,1/4" x 1", Slotted

1шт.

5

D82819

CAP

slide lever

1шт.

6

D82817

LEVER

slide

1шт.

7

112884A1

SHAFT,368mm L

bearing

1шт.

8

230-4218

LOCK NUT,1/2"-13, GA

1/2 NC

1шт.

9

A45056

STEP BOLT

shoulder, special

1шт.

10

A45503

SHOCK ABSORBER

seat

1шт.

11

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

BEARING shock absorber

1шт.

12

230-4216

LOCK NUT,3/8"-16, GA

1шт.

1977726C1

SLIDE

KIT track, no longer available, order Ref. 13 and 14

1шт.

13

131-425

PUSH-ON NUT,Push, 1/2"

4шт.

14

D82820

ROLLER

Slide Track, Replaces N8674 Roller

4шт.

15

165-181

BOLT,1/2" - 13 x 7/8"

1/2 NC x 7/8

1шт.

16

N6713

SPACER

bolt

1шт.

17

D82814

ROD

latch

1шт.

18

D82813

LATCH

right-hand

1шт.

19

D82812

LATCH

left-hand

1шт.

20

D82816

LINK

latch

1шт.

21

D82815

SPRING

latch

2шт.

22

NSS

NOT SOLD SEPARAT

Plate and Track, Seat

1шт.

23

REF

INSTRUCTION

Cable, Plate, see Ref. 22, Figure 9-046

2шт.

24

326-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

2шт.

25

N6874

WASHER

special

4шт.

26

230-4216

LOCK NUT,3/8"-16, GA

2шт.

1977727C1

BOOT

KIT vinyl cover, Includes: Ref. 27 - 29

1шт.

27

N6295

BOOT

Cover, vinyl

1шт.

28

151-705

CLIP,Rd 1/2" Hd, 1/4" Hole

Retainer, Plastic, 1/4 Hole Size x 1/2 inch head dia

22шт.

29

A47778

DECAL

for proper ride

1шт.

30

N6713

SPACER

cable mounting

2шт.

31

131-425

PUSH-ON NUT,Push, 1/2"

2шт.

1977722C1

SUSPENSION BLOCK

KIT seat support, Includes: Ref. 1, 2, 4 - 8, 10, 12 - 21 and 27 - 29 on this figure and parts on Figures 9-046 and 9-048

1шт.
