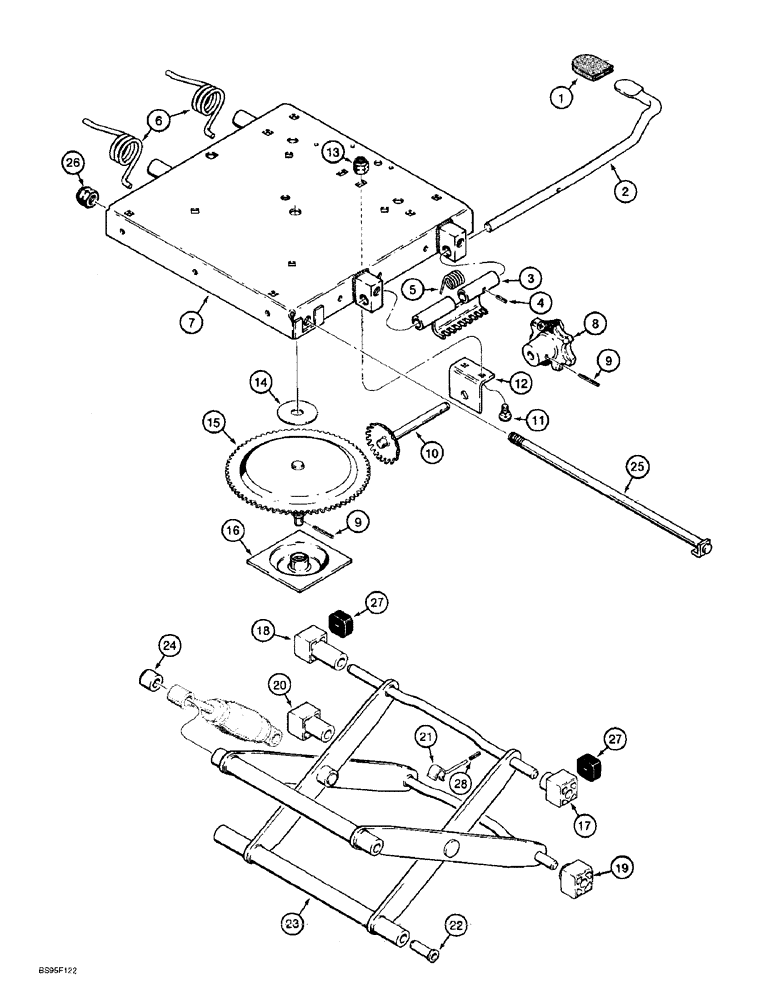

Запчасти Case 621B (9-048) - SUSPENSION SEATS, BLACK (09) - CHASSIS/ATTACHMENTS

1954778C1

SEAT ASSY.

suspension, vinyl, cab or canopy models, Includes: Ref. 1 - 28 on this figure and parts on Figures 9-046 and 9-050

1шт.

97150C1

SEAT ASSY.

suspension, cloth, cab models, Includes: Ref. 1 - 28 on this figure and parts on Figures 9-046 and 9-050, no longer available, order seat assy 1954778C1

1шт.

1

A45472

CAP

height adjustment lever

1шт.

2

D82857

LEVER

height adjustment

1шт.

3

A47381

LATCH

lever

1шт.

4

38-21010

PIN,3.96mm OD x 15.88mm L, Coiled

1шт.

5

A47382

SPRING

latch

1шт.

6

A47384

SPRING

Housing, Replaces D82863 spring

2шт.

7

A47761

PLATE

Housing, Upper, Replaces N6870

1шт.

8

123969A1

SEAT ACCESSORY

Kit, Knob and shaft assy, Incl Ref 9 and Handle, Decals and Shaft Portion of Ref 10, Replaces 118578C1 Knob

1шт.

9

38-31016

PIN,5/32" x 1", Coiled

2шт.

130674A1

SET

KIT weight adjustment, Includes: Ref. 10 and Also Ref. 14 Thrust Washer

1шт.

10

A45513

GEAR

Shaft, Adjustment, Weight, No Longer Available, Order 130674A1 Kit

1шт.

11

411-48

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 2

1/4 NC x 1/2, grade 2

2шт.

12

A45531

BRACKET

shaft

1шт.

13

231-1444

NUT,1/4"-20, GB

2шт.

14

D82834

WASHER

thrust

1шт.

15

A45505

GEAR

suspension plate

1шт.

16

A45504

SPRING WASHER

spring

1шт.

1977725C1

SLIDER

KIT block Includes: Ref.17 - 22

1шт.

1250509C1

BUSHING

KIT slider block, Includes: Ref. 17 - 22

1шт.

17

CASA45517

BLOCK

Block, Slider 2-9/16 inch wide

1шт.

18

A45515

BLOCK

Slider, 1-9/16 inch wide

1шт.

19

A45516

BLOCK

Slider, 2-3/16 inch wide

1шт.

20

A45512

BLOCK

Slider, 1-3/16 inch wide

1шт.

21

A49160

INDICATOR

ride height

1шт.

22

A47760

BUSHING

TUBE bearing

4шт.

23

A47759

ARM

suspension

1шт.

24

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

BEARING shock absorber

1шт.

25

112884A1

SHAFT,368mm L

bearing

1шт.

26

230-4218

LOCK NUT,1/2"-13, GA

1/2 NC

1шт.

27

A45054

BUMPER,Neoprene

seat

2шт.

28

38-11010

LOCK PIN,5/32" x 5/8", Slotted

5/32" x 5/8", Slotted

1шт.

1977722C1

SUSPENSION BLOCK

KIT seat support, Includes: Ref. 2 - 28 on this figure and parts on Figures 9-046 and 9-050

1шт.
