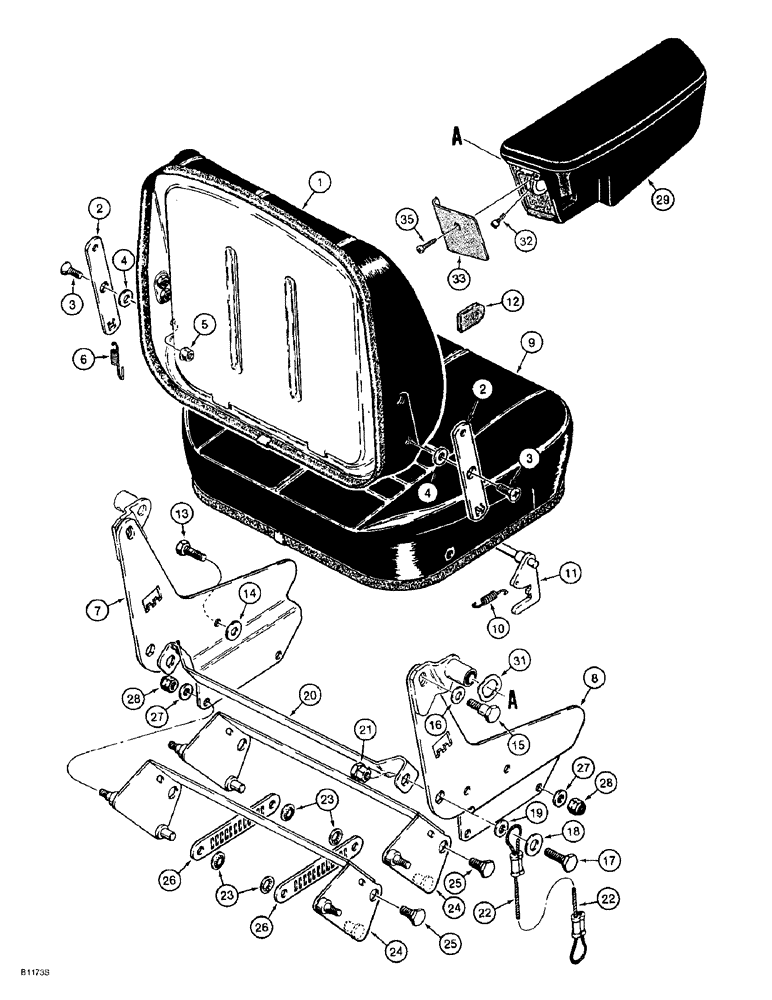

Запчасти Case 621B (9-046) - SUSPENSION SEATS, BLACK (09) - CHASSIS/ATTACHMENTS

1954778C1

SEAT ASSY.

suspension, vinyl, cab or canopy models, Includes: Ref. 1 - 35 on this figure and parts on Figures 9-048 and 9-050

1шт.

97150C1

SEAT ASSY.

suspension, cloth, cab models, Includes: Ref. 1 - 35 on this figure and parts on Figures 9-048 and 9-050, no longer available, order seat assy. 1954778C1

1шт.

233513A1

CUSHION

ASSEMBLY seat back, vinyl, Includes: Ref. 1 - 5, used on 1954778C1 seat assy, Replaces N9208 cushion assy

1шт.

N9203

CUSHION

ASSEMBLY seat back, cloth, Includes: Ref. 1 - 5, used on 97150C1 seat assy, no longer available, for service order 233513A1 cushion assy

1шт.

1

NSS

NOT SOLD SEPARAT

CUSHION, seat back

1шт.

2

N8679

LINK

seat back, if used

2шт.

3

473-13816

SCREW,FLAT, 3/8" - 16 x 1"

3/8 NC x 1 inch

2шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

5

231-5306

FLANGE NUT,Flg, 3/8"-16

2шт.

6

N8680

SPRING

seat back link

2шт.

7

NSS

NOT SOLD SEPARAT

BRACKET, seat, left-hand

1шт.

8

NSS

NOT SOLD SEPARAT

BRACKET, seat, right-hand

1шт.

9

N9207

CUSHION

Seat Bottom, Vinyl, 1954778C1 Seat Assy

1шт.

9

N9202

CUSHION

Seat Bottom, Cloth, 97150C1 Seat Assy, No Longer Available, Order N9207

1шт.

10

D82815

SPRING

Title Shaft, Replaces D82869

2шт.

11

D82868

SHAFT

seat tilt

1шт.

12

A47347

CAP

Tilt Lever, No Longer Available, for Service Order 130921A1 Kit on Figure 9-051E

1шт.

13

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

2шт.

14

A45110

WASHER

special

2шт.

15

N14251

BOLT

3/8 NC x 1-21/32 inch, Back Tilt

2шт.

16

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

17

D82872

BOLT

special

2шт.

18

495-11066

WASHER,5/8", SAE

21/32 x 1-5/16 x 3/32

2шт.

19

195-533

WASHER,1/2", SAE

(17/32 x 1-1/16 x 3/32")

2шт.

20

D82871

BAR

spacer

1шт.

21

D82873

SPECIAL NUT

hex, special

2шт.

22

D82874

CABLE

side brackets

2шт.

23

131-425

PUSH-ON NUT,Push, 1/2"

4шт.

Part of Seat Suspension Support Kit P/N 1977722C1

1шт.

24

N6857

LINK

BRACKET tie

2шт.

Part of Seat Suspension Support Kit P/N 1977722C1

1шт.

25

180627A1

LOCK BOLT,Shldr, Hex, 1/2" - 13 x 19mm

Shoulder, Tie Bracket Retaining, Replaces A45473

4шт.

26

A47383

LINK

LEVER adjusting

2шт.

Part of Seat Suspension Support Kit P/N 1977722C1

1шт.

27

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

28

131-542

LOCK NUT,3/8"-16

3/8

4шт.

1977724C1

ARM

KIT right Hand, Incudes: Ref. 29, 31, 32, 33, and 35

1шт.

1977723C1

ARMREST ASSY.

KIT left Hand, Includes: Ref. 30, 31, 32, 34, 35

1шт.

29

N8536

ARMREST

seat, right-hand

1шт.

30

N9032

ARM

Seat, Left Hand, Not Shown, No Longer Available, Order1977723C1

1шт.

31

A47352

WASHER

wave, 1-1/8 inch ID

2шт.

32

61-3256

HEX SOC SCREW,1/4"-20 x 3/8"

Armrest

2шт.

33

A45584

COVER

Plate, Right Hand Armrest

1шт.

34

A45583

PLATE

Cover, Left Hand Armrest, Not Illustrated

1шт.

35

273-10510

SELF-TAP SCREW,Slotted Flat Hd, #10 x 5/8"

No. 10-16 x 5/8 in

2шт.

1977722C1

SUSPENSION BLOCK

KIT seat support, Includes: Ref. 23, 24 and 26 on this figure and parts on Figures 9-048 and 9-050

1шт.
