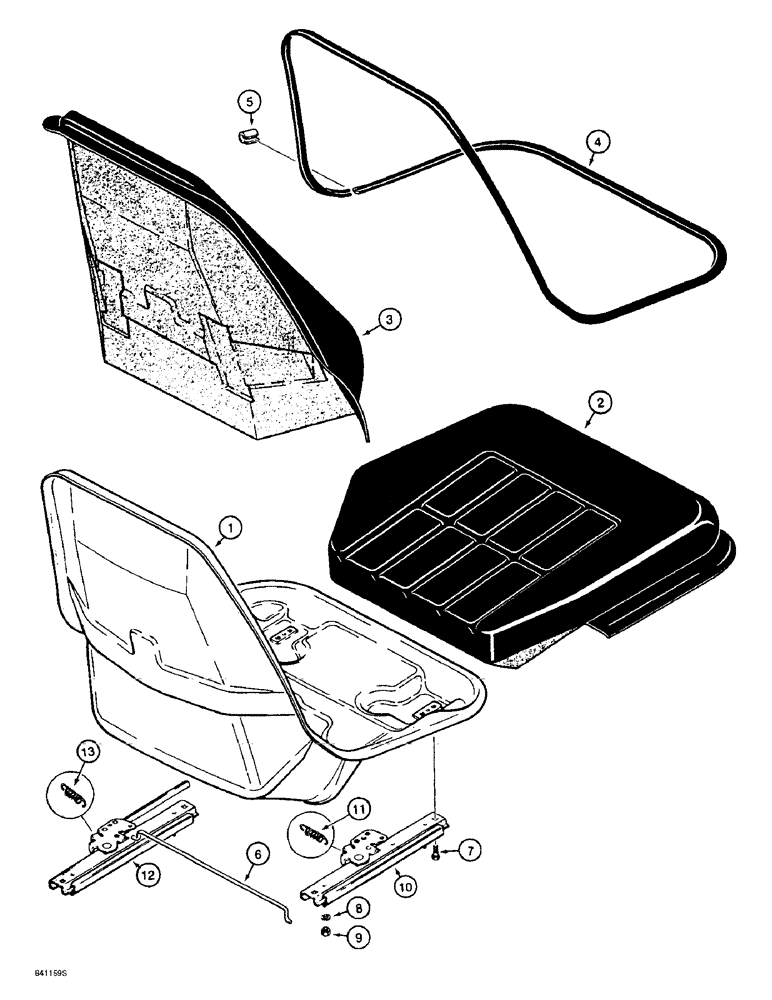

Запчасти Case 621B (9-044) - NON-SUSPENSION SEAT, BROWN (09) - CHASSIS/ATTACHMENTS

L108783

SEAT

ASSEMBLY non-suspension, brown, Includes: Ref. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL, seat

1шт.

2

N8462

CUSHION

KIT seat, includes N7802 clip kit, brown vinyl

1шт.

3

N8461

CUSHION

KIT backrest, includes N7802 clip kit, brown vinyl

1шт.

4

176924A1

SET OF PARTS

TRIM edging, gray, cushion to shell, strip, cushion and shell, Replaces N14614 trim

1шт.

5

NSS

NOT SOLD SEPARAT

Clip, Retainer, order N7802 Clip Kit

1шт.

6

L35492

ROD

connecting

1шт.

7

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

8

492-11031

LOCK WASHER,5/16"

4шт.

9

425-105

NUT,5/16"-18, G5

4шт.

10

A64818

ADJUSTER

Slide, seat, right-hand, Includes: Ref. 11

1шт.

11

L35503

SPRING

slide

1шт.

12

D59688

SLIDE

Seat, Left Hand, With Handle, Includes: Ref. 13

1шт.

13

L35503

SPRING

slide

1шт.

N7802

CLIP

KIT, Includes: Ref. 5 and six additional narrow clips

1шт.
