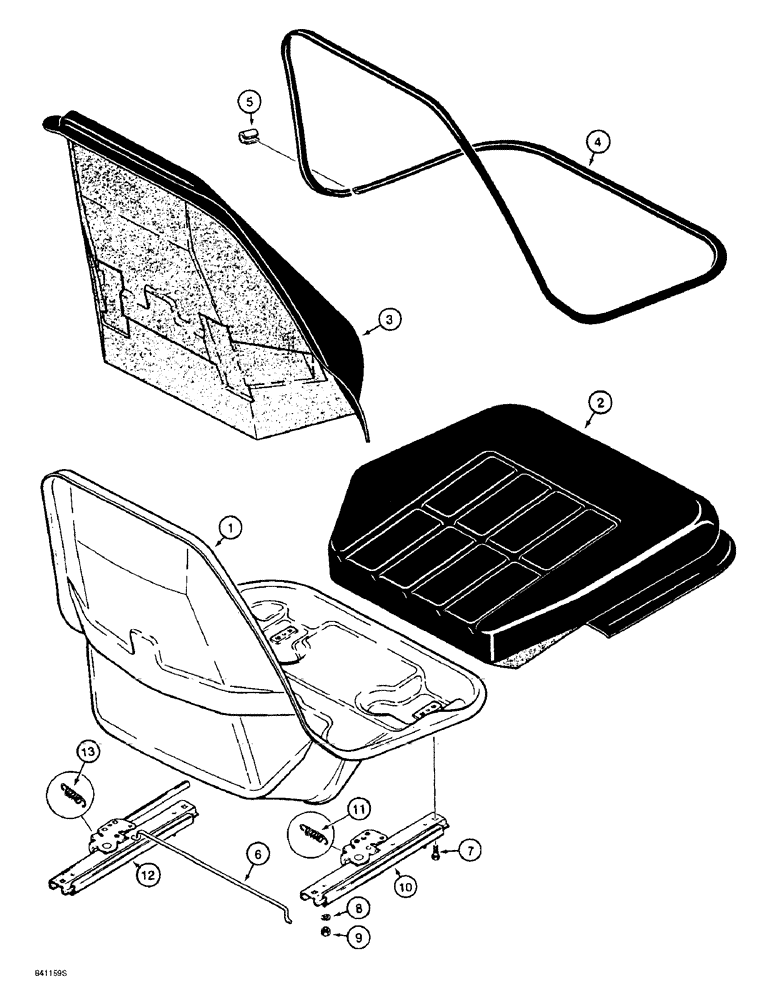

Запчасти Case 621B (9-044[1]) - NON-SUSPENSION SEAT, GRAY (09) - CHASSIS/ATTACHMENTS

178765A1

SEAT

ASSEMBLY non-suspension, gray, Incudes: Ref. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL, seat

1шт.

2

190875A1

CUSHION, SEAT

Kit, includes N7802 Clip Kit, gray vinyl

1шт.

3

190874A1

BACKREST COVER

Kit cushion, includes N7802 Clip Kit, gray vinyl

1шт.

4

NSS

NOT SOLD SEPARAT

Trim, Edge, Strip, Cushion and Shell

1шт.

5

NSS

NOT SOLD SEPARAT

CLIP retainer, order N7802 clip kit

1шт.

6

L35492

ROD

connecting

1шт.

7

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

8

492-11031

LOCK WASHER,5/16"

4шт.

9

425-105

NUT,5/16"-18, G5

4шт.

10

A64818

ADJUSTER

SLIDE, seat, right-hand, Includes: Ref. 11

1шт.

11

L35503

SPRING

slide

1шт.

12

D59688

SLIDE

Seat, Left Hand, With Handle, Includes: Ref. 13

1шт.

13

L35503

SPRING

slide

1шт.

N7802

CLIP

KIT, Includes: Ref. 5 and six additional narrow clips

1шт.
