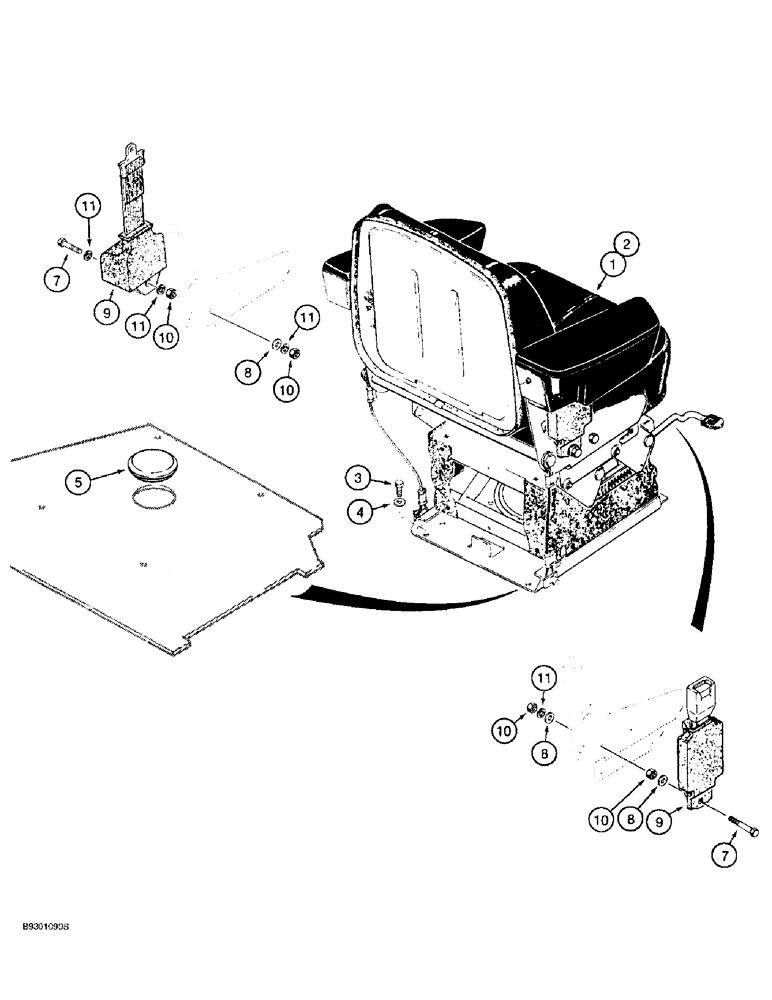

Запчасти Case 621B (9-042) - SEAT AND MOUNTING PARTS, SUSPENSION SEAT, SEAT MOUNTING (09) - CHASSIS/ATTACHMENTS

1

1954778C1

SEAT ASSY.

suspension, vinyl, brown, cab or canopy, see Figures 9-046 - 9-050

1шт.

1

177639A1

SEAT

ASSEMBLY suspension, vinyl, gray, cab or canopy, see Figures 9-051A - 9-051G

1шт.

2

97150C1

SEAT ASSY.

suspension, cloth, brown, cab only, see Figures 9-046 - 9-050, no longer available, for service order 1954778C1 seat assembly

1шт.

2

177638A1

SEAT

ASSEMBLY suspension, cloth, gray, cab only, see Figures 9-051A - 9-051G

1шт.

3

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

4

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

4шт.

5

353-255

PLUG,3 1/2"

button, 3-1/2 inch

1шт.

7

414-728

BOLT,Hex, 7/16" - 20 x 1-3/4", Gr 5

7/16 NF x 1-3/4 inch, 51 mm (2 inch) wide retractable seat belt

2шт.

8

495-21050

WASHER,7/16"

(1/2 x 1-1/4 x 5/64"), 51 mm (2 inch) wide retractable seat belt

3шт.

9

R58339

SAFETY BELT ,2.00" W

Retractable

1шт.

10

425-117

NUT,7/16"-20, G5

51 mm (2 inch) wide retractable seat belt

4шт.

11

492-11044

LOCK WASHER,7/16"

51 mm (2 inch) wide retractable seat belt

4шт.

7

414-728

BOLT,Hex, 7/16" - 20 x 1-3/4", Gr 5

7/16 NF x 1-3/4 inch, 76 mm (3 inch) wide retractable seat belt

2шт.

8

495-21050

WASHER,7/16"

(1/2 x 1-1/4 x 5/64"), 76 mm (3 inch) wide retractable seat belt

3шт.

9

R58418

SAFETY BELT ,3.00" W

Retractable

1шт.

10

425-117

NUT,7/16"-20, G5

76 mm (3 inch) wide retractable seat belt

4шт.

11

492-11044

LOCK WASHER,7/16"

76 mm (3 inch) wide retractable seat belt

4шт.
