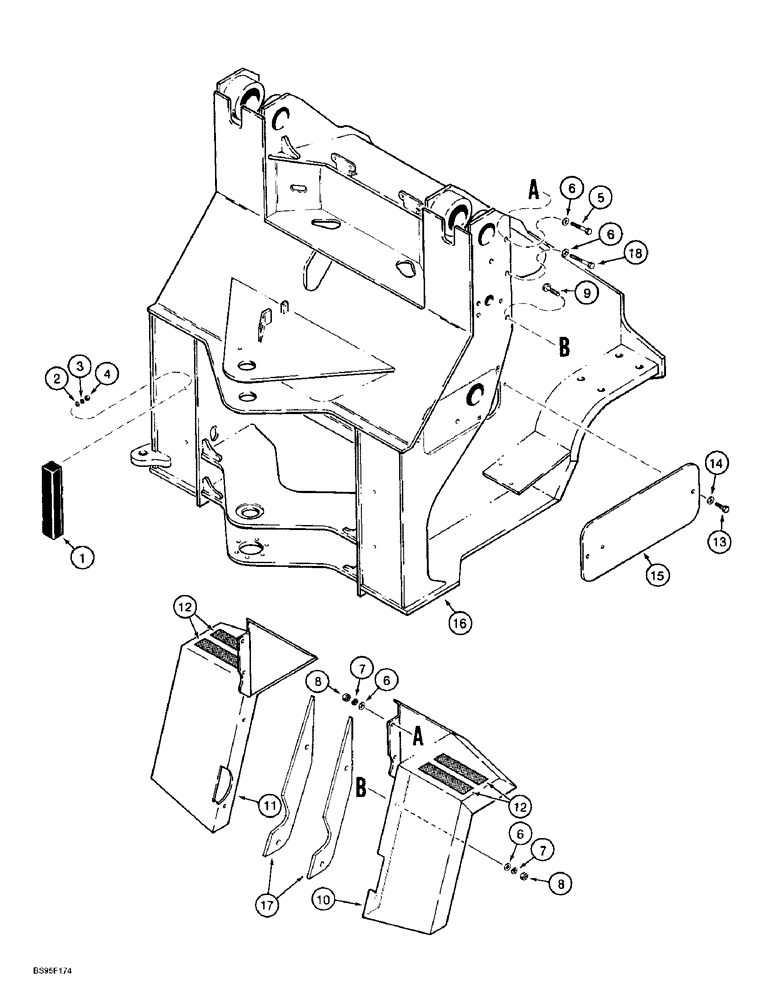

Запчасти Case 621B (9-039A) - FRONT FRAME AND FENDERS, XT LOADER, P.I.N. JEE0041109 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

L127077

HITCH DAMPER

BUMPER chassis

2шт.

2

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch)

4шт.

3

492-11038

LOCK WASHER,3/8"

4шт.

4

425-106

NUT,3/8"-16, Cl 5

4шт.

5

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

2шт.

6

495-21056

WASHER,1/2"

9/16 x 1-3/8 x 7/64 inch

12шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

8

425-108

NUT,1/2" - 13, Gr 5

8шт.

9

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

4шт.

10

123165A1S

SPLASH SHIELD

FENDER front, right-hand, replaces L128918 fender

1шт.

11

123164A1S

SPLASH SHIELD

FENDER front, left-hand, replaces L128922 fender

1шт.

12

D55216

PAD,2" x 9"

front fender

4шт.

13

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

14

187563A1

SPACER

13 x 25 x 28 mm

4шт.

15

L125240

LARGE PLATE

PLATE, LARGE COVER access, front frame

2шт.

16

137080A1

CHASSIS

FRAME front chassis, see Figure 8-15A for tilt circuit conversion kit, used to convert 3/4 inch tube lines to 1.0 inch on bucket cylinder circuit

1шт.

17

122577A1

SPACER

fender

2шт.

18

426-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

2шт.
