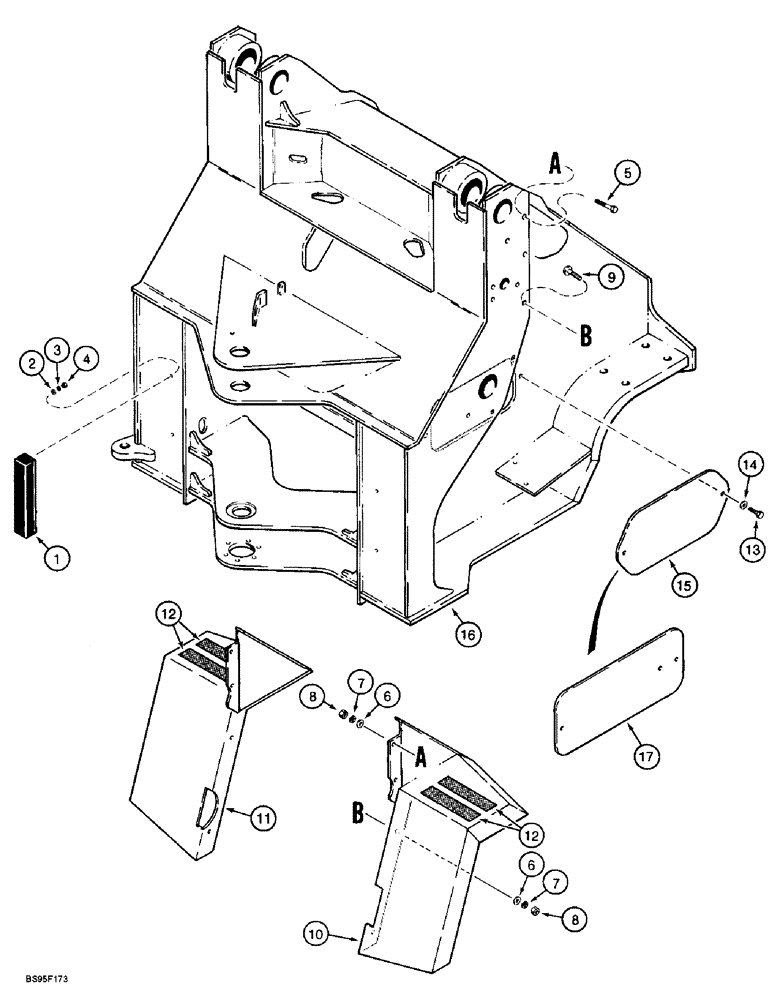

Запчасти Case 621B (9-036) - FRONT FRAME AND FENDERS, Z-BAR LOADER (09) - CHASSIS/ATTACHMENTS

1

L127077

HITCH DAMPER

BUMPER chassis

2шт.

2

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch)

4шт.

3

492-11038

LOCK WASHER,3/8"

4шт.

4

425-106

NUT,3/8"-16, Cl 5

4шт.

5

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

4шт.

6

495-21056

WASHER,1/2"

9/16 x 1-3/8 x 7/64 inch

8шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

8

425-108

NUT,1/2" - 13, Gr 5

8шт.

9

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

4шт.

10

123165A1S

SPLASH SHIELD

FENDER front, right-hand, replaces L128918 fender

1шт.

11

123164A1S

SPLASH SHIELD

FENDER front, left-hand, replaces L128922 fender

1шт.

12

D55216

PAD,2" x 9"

front fender

4шт.

13

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

14

187563A1

SPACER

13 x 25 x 28 mm

4шт.

15

L119249

COVER

access, front frame, no longer available, order Ref.17, L125240 cover

2шт.

16

109470A1

CHASSIS

FRAME front chassis

1шт.

17

L125240

LARGE PLATE

PLATE, LARGE COVER access, front frame

2шт.

18

109470A2

FRAME front chassis, not shown

1шт.
