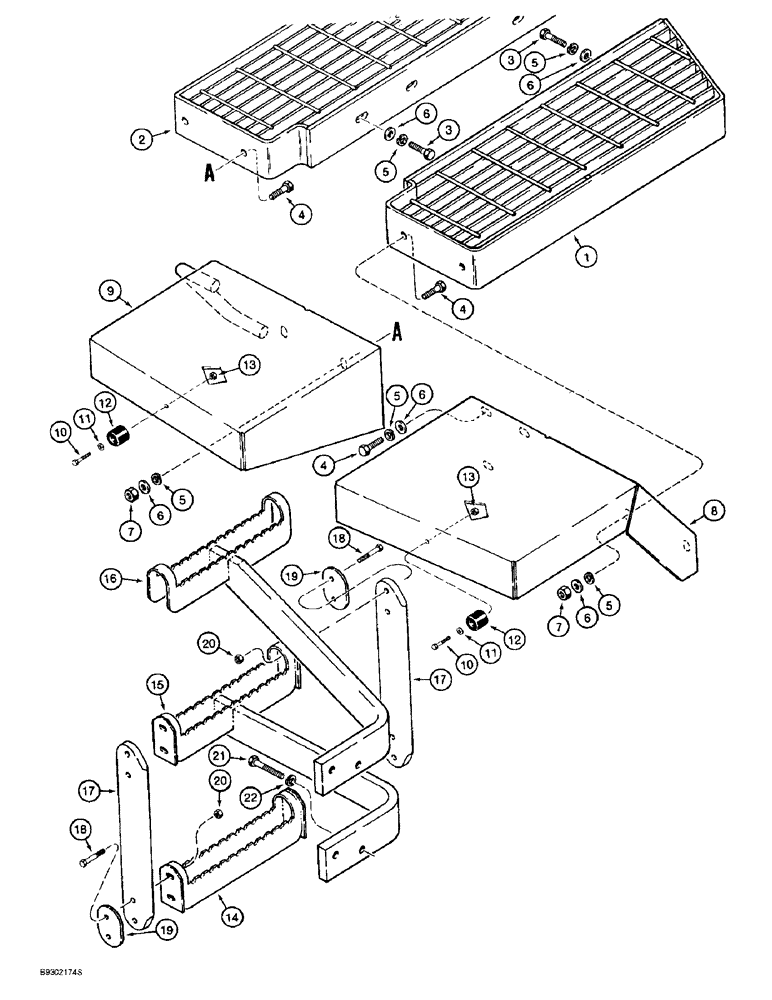

Запчасти Case 621B (9-034) - REAR FENDERS AND STEPS (09) - CHASSIS/ATTACHMENTS

1

L126892

GRATING

STEP platform, right-hand, operators compartment

1шт.

2

L126950

STEP

platform, left-hand, operators compartment

1шт.

3

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

6шт.

4

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

10шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

16шт.

6

495-21056

WASHER,1/2"

9/16 x 1-3/8 x 7/64 inch

16шт.

7

425-108

NUT,1/2" - 13, Gr 5

4шт.

8

L128539

FENDER

rear, right-hand

1шт.

9

L128541

FENDER

rear, left-hand

1шт.

10

426-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 8

1/4 NC x 1-1/2 inch, grade 8

2шт.

11

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

2шт.

12

L126483

BUMPER

rubber, door

2шт.

13

131-461

LOCK NUT,1/4"-20

2шт.

14

135822A1

STEP

rear frame, replaces L128543 step

1шт.

15

L128544

STEP

rear frame

1шт.

16

L126167

STEP

rear frame

1шт.

17

108751A1

SUPPORT

STRAP step hanger

2шт.

18

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

8шт.

19

108753A1

LARGE PLATE

PLATE, LARGE support, attaches on outside of step hangers at middle and lower steps

4шт.

20

231-1446

NUT,3/8" - 16, Gr 5

8шт.

21

426-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

4шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

4шт.
