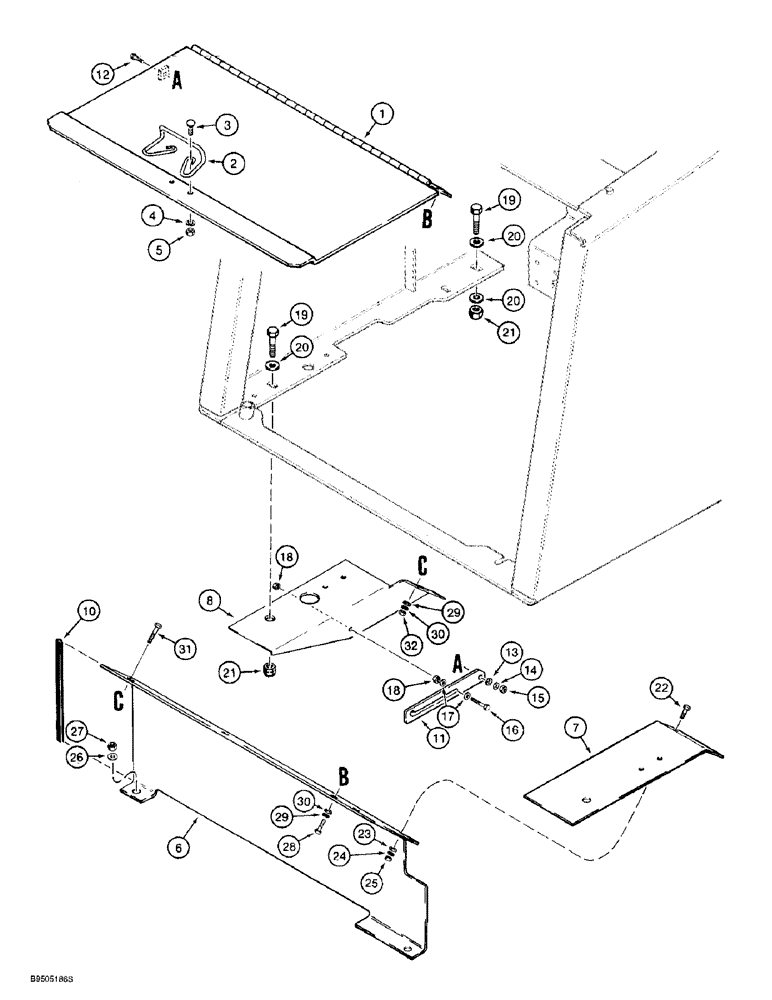

Запчасти Case 621B (9-032) - BATTERY COMPARTMENT COVERS (09) - CHASSIS/ATTACHMENTS

1

L127331

COVER ASSY

battery compartment

1шт.

2

L125636

HANDLE

hold down

1шт.

3

11-310

CARRIAGE BOLT,Short NK, 3/16"-24 x 5/8", G2, Full Thd

BOLT, CARRIAGE, Short NK, 3/16"-24 x 5/8", G2, Full Thd

2шт.

4

492-11010

LOCK WASHER,#10

2шт.

5

225-14110

NUT,#10-24

2шт.

6

L128101

BAFFLE ASSY.

battery compartment

1шт.

7

L128192

PLATE

support, cover, right-hand

1шт.

8

L128172

PLATE

support, cover, left-hand

1шт.

10

L127454

LINING

Trim, Edge, 220 mm (8-3/4 in) long, Cut From F64277X bulk Trim shown below

1шт.

11

L125491

LARGE PLATE

PLATE, LARGE BRACKET cover support

1шт.

12

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

1шт.

13

S69662

WASHER

flat, special

1шт.

14

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

1шт.

15

231-1445

NUT,5/16"-18, GB

1шт.

16

426-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 8

BOLT hex, 5/16 NC x 1-1/4 inch, grade 8

1шт.

17

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

2шт.

18

329-105

NUT,5/16"-18, G8

2шт.

19

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

BOLT hex, 5/8 NC x 2 inch, grade 8

4шт.

20

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

8шт.

21

232-14110

LOCK NUT,5/8"-11, GC

4шт.

22

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

1шт.

23

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch)

1шт.

24

492-11038

LOCK WASHER,3/8"

1шт.

25

425-106

NUT,3/8"-16, Cl 5

1шт.

26

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

2шт.

27

231-1446

NUT,3/8" - 16, Gr 5

2шт.

28

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

3шт.

29

492-11038

LOCK WASHER,3/8"

4шт.

30

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

4шт.

31

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

32

425-106

NUT,3/8"-16, Cl 5

1шт.

F64277X

SEAL

TRIM, Edge, Bulk, 14478 mm (570 in) long

1шт.
