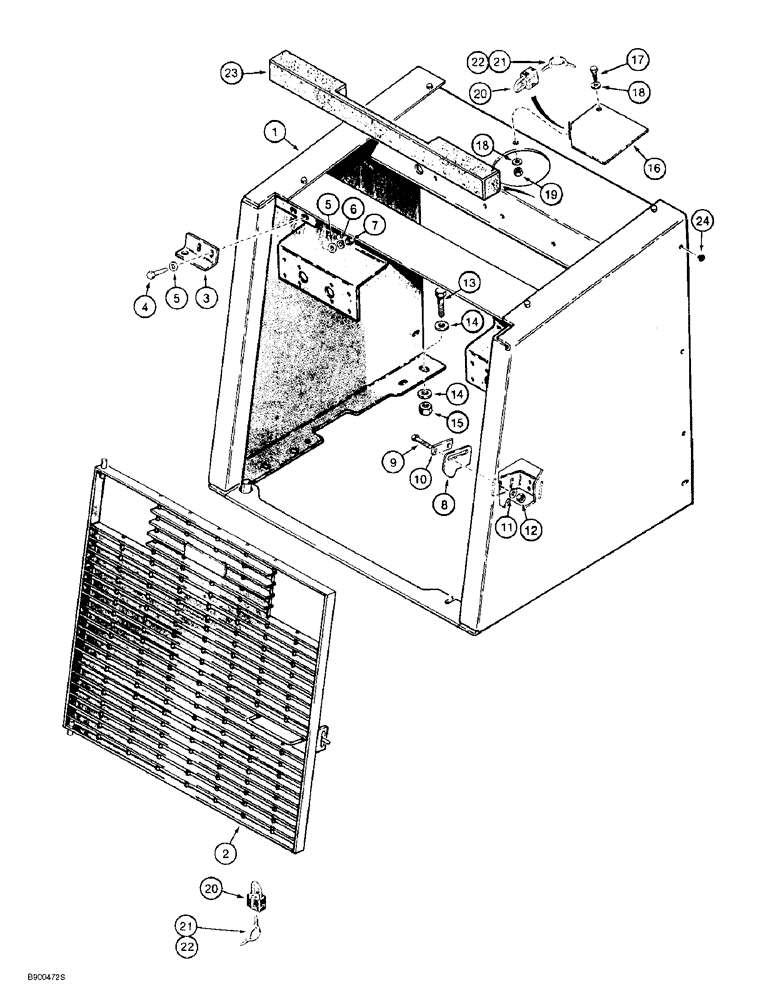

Запчасти Case 621B (9-030) - RADIATOR GUARD AND GRILLE (09) - CHASSIS/ATTACHMENTS

1

111037A1

GUARD ASSY.

radiator, includes lamp brackets

1шт.

2

L118925

SIEVE

GRILLE - radiator, tan, if used

1шт.

2

194197A1

SIEVE

GRILLE, radiator, black, if used

1шт.

3

L118936

SUPPORT

BRACKET upper grille

1шт.

4

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

2шт.

5

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

4шт.

6

492-11038

LOCK WASHER,3/8"

2шт.

7

425-106

NUT,3/8"-16, Cl 5

2шт.

8

L126920

LATCH

lever, grille

1шт.

9

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

2шт.

10

L126841

LARGE PLATE

PLATE, LARGE support, lever catch

1шт.

11

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

2шт.

12

231-1446

NUT,3/8" - 16, Gr 5

2шт.

13

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

5/8 NC x 2 inch, grade 8

4шт.

14

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

Hardened

8шт.

15

131-219

LOCK NUT

5/8 inch NC

4шт.

16

L126779

LARGE PLATE

PLATE, LARGE radiator

1шт.

17

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

1шт.

18

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch)

2шт.

19

231-1446

NUT,3/8" - 16, Gr 5

1шт.

20

D93753

PADLOCK

Includes: Ref. 21 and 22, if used

2шт.

21

D93751

SET OF 2 KEYS

for Yale padlock only, if used

2шт.

22

R29555

KEY

for Master padlock only, if used

2шт.

23

L127462

SEAL

adhesive backed, 730 mm (28-3/4 inch) long, radiator, Serial Range: guard-hood

1шт.

24

L126856

RIVET

CUSHION, rubber

6шт.
