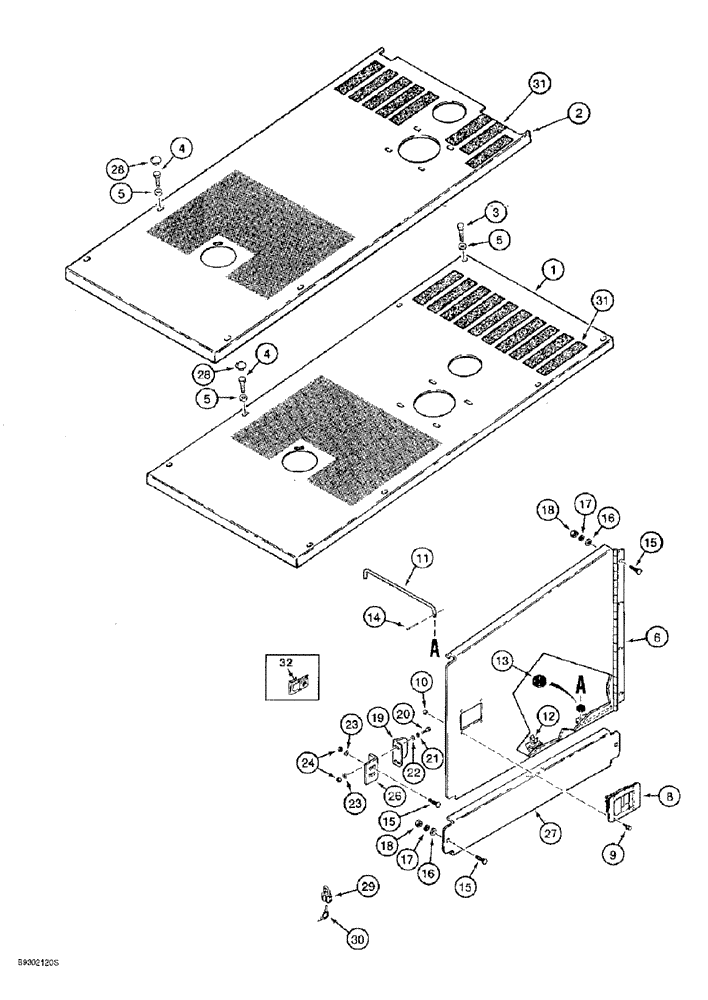

Запчасти Case 621B (9-028) - HOOD AND SIDE DOORS (09) - CHASSIS/ATTACHMENTS

1

L128266

TOP

HOOD engine, with perforations, models without air conditioning, brown

1шт.

1

194196A1

TOP

HOOD engine, with perforations, models without air conditioning, tan

1шт.

2

L128268

HOOD ASSY.

engine top, with perforations, models with air conditioning, brown

1шт.

2

193193A1

HOOD ASSY.

engine top, with perforations, models with air conditioning, tan

1шт.

3

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

Models without air conditioner

2шт.

4

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

4-6шт.

5

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

4-8шт.

6

L127685

DOOR

hood side, right hand

1шт.

7

L127686

DOOR

hood side, left hand, not shown

1шт.

8

R56221

LATCH

LATCH door handle

2шт.

9

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

10

231-5344

FLANGE NUT,Flg, 1/4"-20

8шт.

11

L128467

ROD

door, open latching

2шт.

12

L128879

CLIP,ELECTRICAL

rod retainer

2шт.

13

248-2397

GROMMET,5/16" ID x 3/4" Groove Dia, Str Cut

Rubber

2шт.

14

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

15

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

12шт.

16

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

12шт.

17

492-11038

LOCK WASHER,3/8"

12шт.

18

425-106

NUT,3/8"-16, Cl 5

12шт.

19

L127958

LARGE PLATE

PLATE, LARGE striker, door

2шт.

20

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

4шт.

21

492-11031

LOCK WASHER,5/16"

4шт.

22

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

4шт.

23

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

4шт.

24

231-1446

NUT,3/8" - 16, Gr 5

4шт.

25

L126856

RIVET

CUSHION rubber, not shown

8шт.

26

L12924A1

BRACKET catch

2шт.

27

L128574

COVER

PANEL lower

2шт.

28

353-413

PLUG,Dome, 1.187" hole, Nylon

button, 1-3/16 inch

4-8шт.

29

D93753

PADLOCK

Includes: Ref. 30, if used

2шт.

30

D93751

SET OF 2 KEYS

for Yale padlock only, if used

2шт.

30

R29555

KEY

for Master padlock only, if used

2шт.

31

D55216

PAD,2" x 9"

upper hood, front

8шт.

32

131-637

SPRING NUT,Ret, J, 5/16"-18

4шт.
