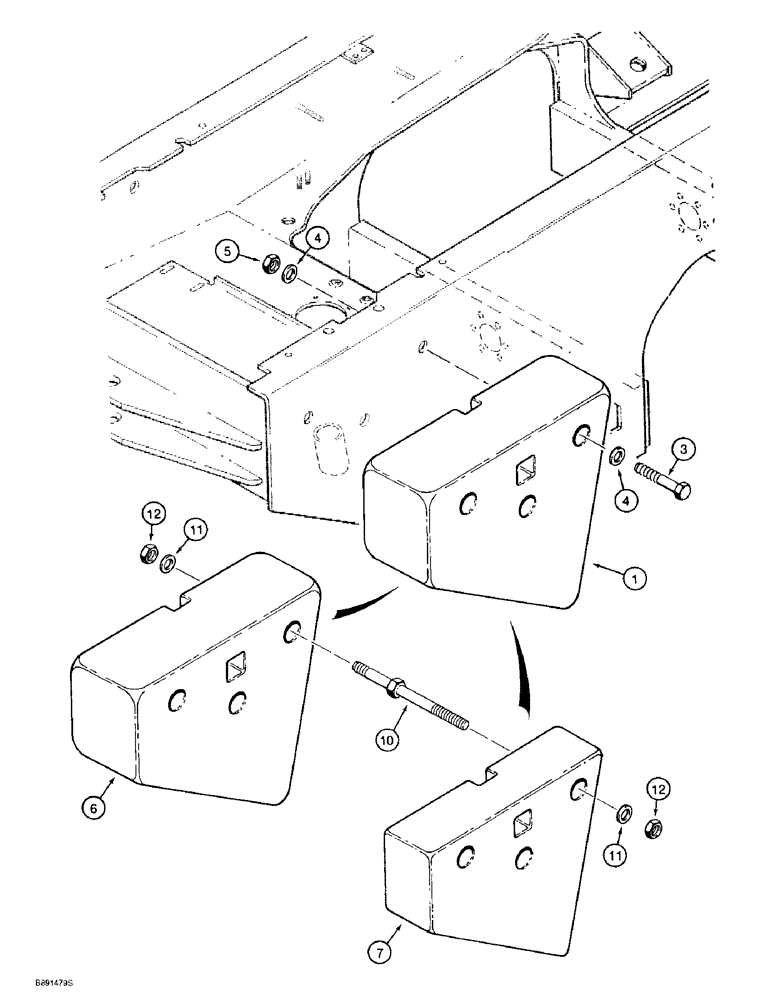

Запчасти Case 621B (9-024) - COUNTERWEIGHTS, 1500 POUND TOTAL WEIGHT (09) - CHASSIS/ATTACHMENTS

1

L127841

WEIGHT

750 pound, right-hand rear

1шт.

2

L127842

WEIGHT

750 pound, left-hand rear, not shown

1шт.

3

426-1680

BOLT,Hex, 1" - 8 x 5", Gr 8

1 NC x 5 inch, grade 8

6шт.

4

496-21106

WASHER,1 1/16" x 2" x .209", HDN

12шт.

5

429-1016

NUT,1"-8, G8

6шт.

6

L127841

WEIGHT

750 pound, right-hand rear, 2500 pound total weight

1шт.

7

L125468

BALANCER

COUNTERWEIGHT, 500 pound, right-hand rear, 2500 pound total weight

1шт.

8

L127842

WEIGHT

750 pound, left-hand rear, not shown, 2500 pound total weight

1шт.

9

L125469

BALANCER

COUNTERWEIGHT, 500 pound, left-hand rear, not shown, 2500 pound total weight

1шт.

10

L129903

STUD

special, counterweight mounting, 2500 pound total weight

6шт.

11

496-21106

WASHER,1 1/16" x 2" x .209", HDN

2500 pound total weight

12шт.

12

429-1016

NUT,1"-8, G8

2500 pound total weight

6шт.
