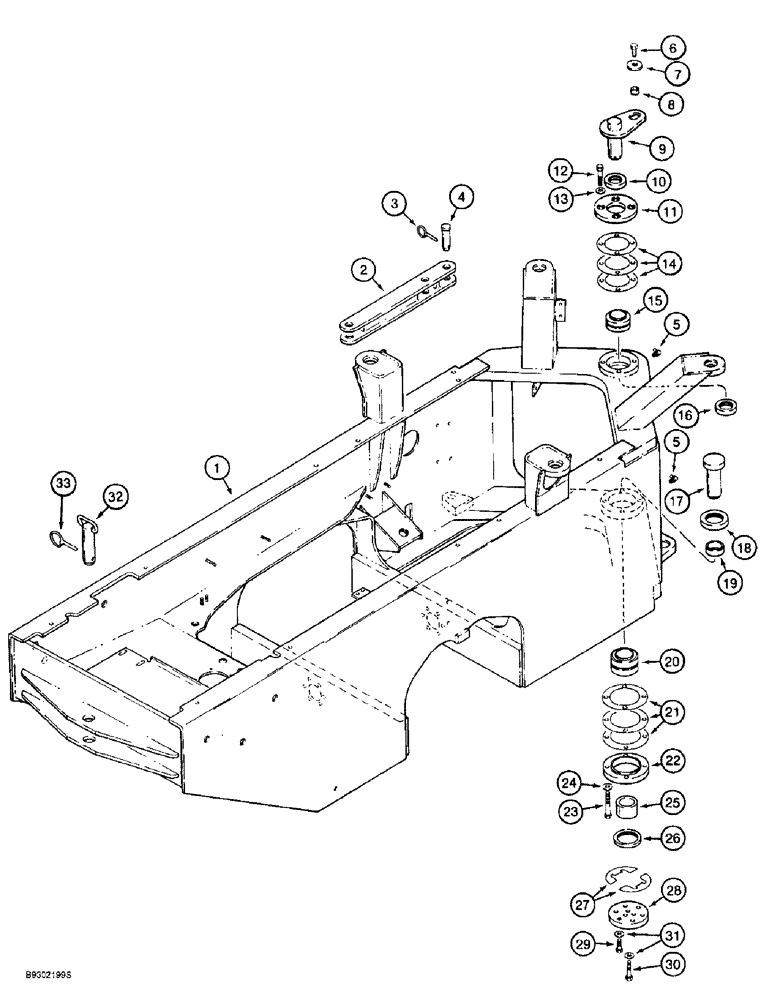

Запчасти Case 621B (9-022) - REAR FRAME AND PIVOT (09) - CHASSIS/ATTACHMENTS

1

108209A2

CHASSIS

FRAME rear, includes fuel tank, replaces 108209A1 frame, Serial Range: -JEE0053350

1шт.

1a

248253A1

CHASSIS

FRAME rear, includes fuel tank, not shown JEE0053350 to

1шт.

2

L124505

PITMAN ASSY.

LINK - transport/service

1шт.

3

A30338

PIN

lock

2шт.

4

A164277

PIN,31.75mm OD x 107.95mm L

lock, transport/service link

2шт.

5

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

6

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

1шт.

7

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

Replaces D35009 washer

1шт.

8

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

14.3 mm (9/16 inch), upper pin

1шт.

9

L118861

HANDLED SHAFT

PIN - upper pivot

1шт.

10

L118973

SEAL,57.15mm ID x 89.03mm OD x 12.7mm Thk

upper, upper articulation plate

1шт.

11

L118901

COVER

RETAINER upper pivot

1шт.

12

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

4шт.

13

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

14

L118987

SHIM,0.1mm Thk

Upper pivot

1шт.

14

L119202

SHIM,0.25mm Thk

Upper pivot

1шт.

14

L118986

SHIM,0.5mm Thk

Upper pivot

1шт.

15

L118856

TAPERED BEARING,57.15mm ID x 100mm OD x 42mm W

tapered

1шт.

16

L126169

SEAL,57.15mm ID x 89.03mm OD x 12.7mm Thk

lower, upper articulation plate

1шт.

17

L118857

PIVOT PIN,63.48mm OD x 191.75mm L

lower pivot

1шт.

18

L118978

SEAL,79.38mm ID x 108.05mm OD x 12.7mm Thk

upper, lower articulation plate

1шт.

19

L118862

SPACER,63.55mm ID x 79.4mm OD x 28.6mm L

upper, lower pivot bearing

1шт.

20

L118868

TAPERED BEARING,63.51mm ID x 122.24mm OD x 76.71mm W

lower pivot

1шт.

21

L118990

SHIM,124mm ID x 190mm OD x 0.11mm Thk

Lower pivot

1шт.

21

L119203

SHIM,124mm ID x 190mm OD x 0.28mm Thk

0.25 mm thick, lower pivot

1шт.

21

L118989

SHIM,124mm ID x 190mm OD x 0.54mm Thk

Lower pivot

1шт.

22

L118902

COVER

RETAINER lower pivot

1шт.

23

426-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

4шт.

24

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

25

L118858

SPACER,63.54mm ID x 79.4mm OD x 56.45mm L

lower, lower pivot bearing

1шт.

26

L126168

SEAL,79.38mm ID x 108.05mm OD x 11.89mm Thk

lower, lower pivot

1шт.

27

L118983

SHIM,90mm ID x 160mm OD x 0.11mm Thk

One half, Lower plate

1шт.

27

L118980

SHIM,90mm ID x 160mm OD x 0.28mm Thk

One half, Lower plate

1шт.

27

L118982

SHIM,90mm ID x 160mm OD x 0.54mm Thk

One half; Lower plate

1шт.

28

L128375

PLATE

lower pin

1шт.

29

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

6шт.

30

426-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

3шт.

31

187563A1

SPACER

13 ID x 25.4 OD x 28.7 mm lg; If Used

9шт.

31

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened; If Used

9шт.

32

L104989

STOP

PIN drawbar, if used

1шт.

33

D33805

PIN

locking, if used

1шт.
