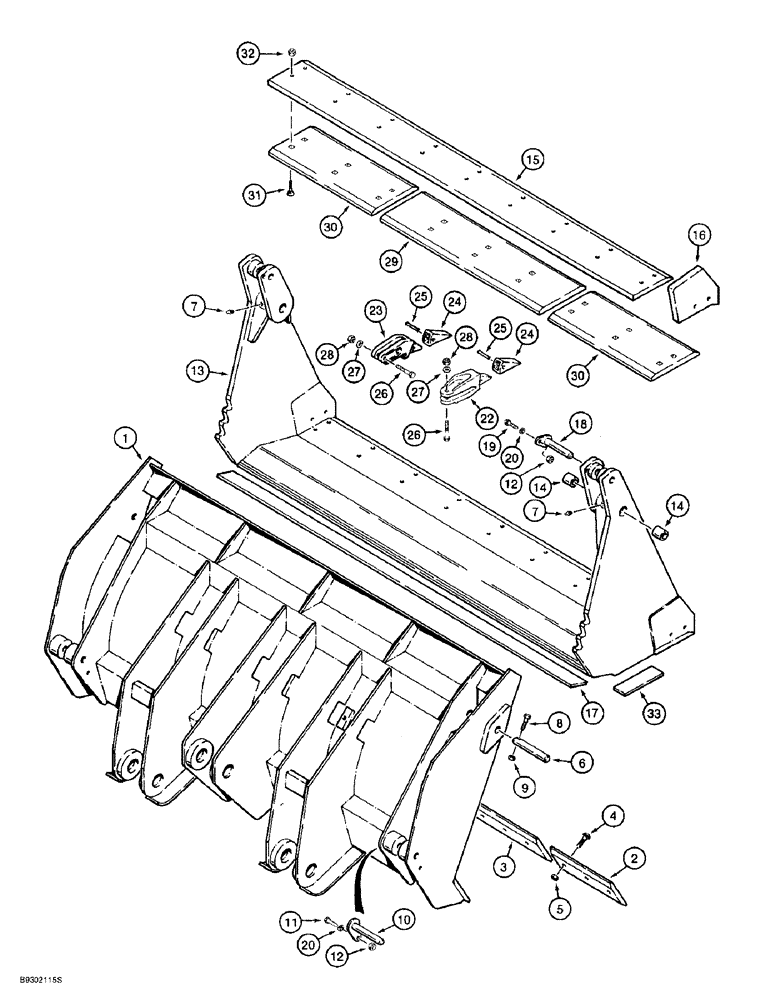

Запчасти Case 621B (9-020) - AUXILIARY BUCKET, Z-BAR LOADER (09) - CHASSIS/ATTACHMENTS

L128263

KIT

BUCKET ASSEMBLY clam, Includes: Ref. 1 - 20 on this figure and Ref. 1 - 15 on Figure 8-18, order from Machinery Price List, 1.5 cubic meter (2 cubic yard)

1шт.

See Figure 08-18 For Loader Auxiliary Cylinder Hydraulics and Figure 08-56 for the Loader Auxiliary Cylinder Assembly Included With This Bucket Assy.

1шт.

1

NSS

NOT SOLD SEPARAT

BLADE - bucket

1шт.

2

S301632

END

EDGE - cutting, outer

2шт.

3

S300144

EDGE, CUTTING

center

1шт.

4

20-21232

PLOW BOLT,#3, 3/4" - 10 x 2", Gr 8

16шт.

5

329-1012

NUT,3/4"-10, G8

16шт.

6

S300141

PIVOT PIN

, Serial Range: Clam-blade

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

8

426-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

2шт.

9

425-148

JAM NUT,Jam, 1/2"-13, G5

2шт.

10

S300143

PIN

Mounting, lower

2шт.

11

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

2шт.

12

425-108

NUT,1/2" - 13, Gr 5

4шт.

13

181808A1

CLAW

ASSEMBLY - bucket

1шт.

14

S300154

BUSHING

clam

4шт.

15

S301972

EDGE

cutting, clam, weld-on, front

1шт.

16

S300157

EDGE, CUTTING

BRACE - corner

2шт.

17

S301633

LARGE PLATE

PLATE, LARGE compaction, rear

1шт.

18

S301631

PIN

mounting, upper

2шт.

19

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

2шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

L129666

TOOTH

ASSEMBLY bucket, center, Includes: Ref. 22 - 25, marked H and L, if used

7шт.

For ESCO teeth, see Figure 9-21A. ESCO teeth and H and L teeth should not be mixed on the same bucket.

1шт.

L126938

TOOTH

ASSEMLBY bucket, corner, Includes: Ref. 22 - 25, marked H and L, if used

2шт.

For ESCO teeth, see Figure 9-21A. ESCO teeth and H and L teeth should not be mixed on the same bucket.

1шт.

22

NSS

NOT SOLD SEPARAT

TOOTH - bucket, center

1шт.

23

NSS

NOT SOLD SEPARAT

TOOTH - bucket, corner

1шт.

24

D55468

TOOTH

tooth, standard forged, bucket

1шт.

25

L32090

PIN

PIN - flex, point retaining

1шт.

26

326-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

Bucket teeth

18шт.

27

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

Flat, Bucket teeth

18шт.

28

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

Bucket teeth

18шт.

29

L128264

EDGE

cutting, center, bolt-on, clam

1шт.

30

L128265

END

EDGE cutting, corner, bolt-on, clam

2шт.

31

L127054

PLOW BOLT,#3, Dome Hd, 3/4" - 10 x 3", Gr 8

plow, 3/4 NC x 3 inch, grade 8, bolt-on cutting edge

18шт.

32

329-1012

NUT,3/4"-10, G8

Bolt-on cutting edge

18шт.

33

L128303

LARGE PLATE

PLATE, LARGE skid, bolt-on cutting edge

4шт.
