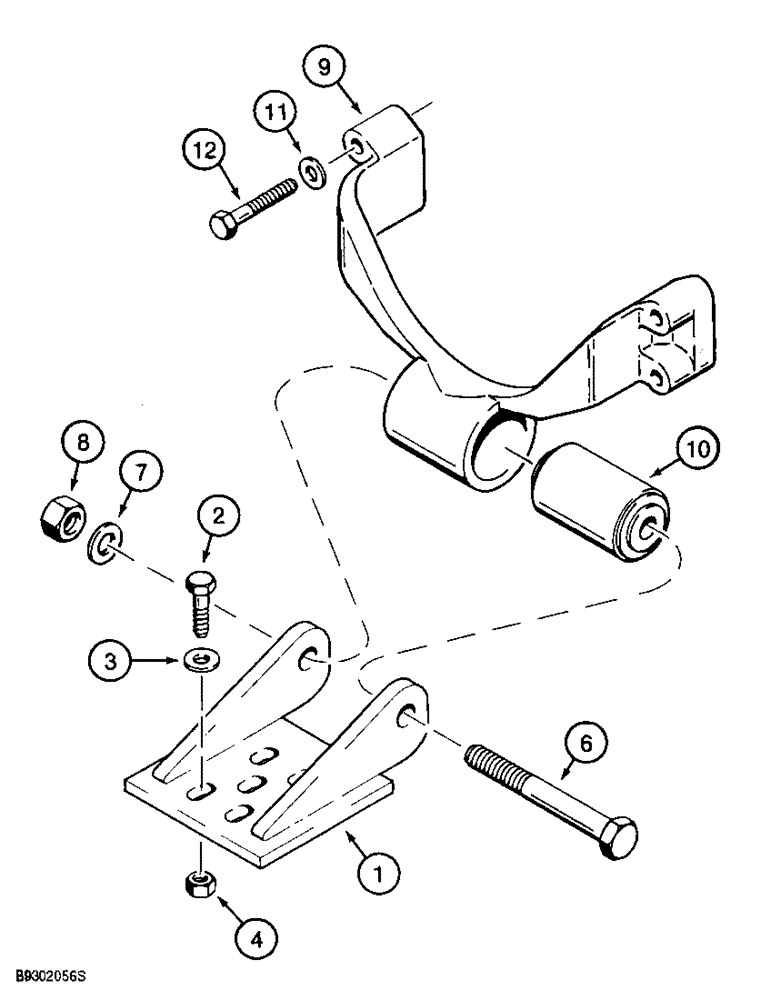

Запчасти Case 621B (2-02) - ENGINE MOUNT AND RELATED PARTS (02) - ENGINE

1

L128273

SUPPORT

MOUNT Engine

1шт.

2

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

4шт.

3

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

4шт.

4

231-1448

NUT,1/2"-13, GB

hex, NC

4шт.

6

426-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 8

1шт.

7

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

1шт.

8

131-450

NUT,3/4"-10

heavy hex, self-locking, 3/4 inch NC

1шт.

L127411

SUPPORT ASSY.

Engine, Front, No Longer Available As An Assembly, For Service Order Components Separately Ref. 9 and 10

1шт.

9

J916664

SUPPORT

engine

1шт.

10

L124020

SHOCK ABSORBER

SPACER engine mount to support, phosphate coated

1шт.

11

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

12

814-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

4шт.
