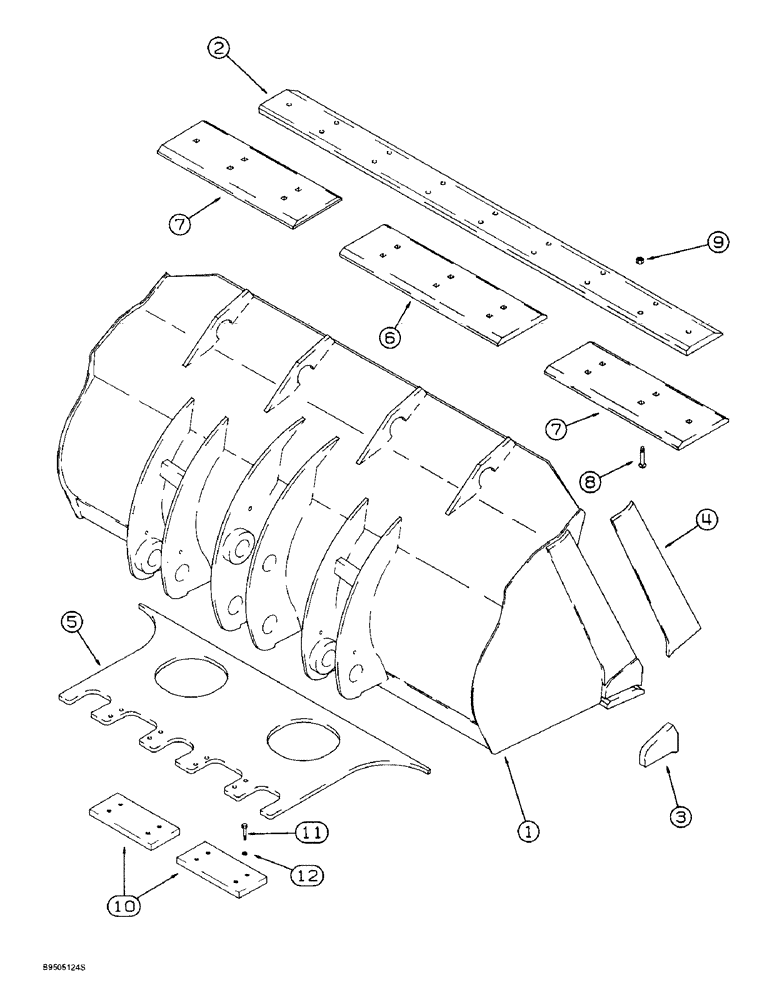

Запчасти Case 621B (9-019C) - LOADER BUCKETS AND CUTTING EDGES, 2.75 CUBIC YARD (2.1 CUBIC METER) BUCKET, Z-BAR LOADER (09) - CHASSIS/ATTACHMENTS

131238A1

BUCKET

BUCKET ASSEMBLY loader, Includes: Ref. 1 - 5, order from Machinery Price List, 2.1 cubic meter (2.75 cubic yard)

1шт.

No bucket teeth are available for 131238A1 bucket

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

L127426

EDGE, CUTTING

Bolt on

1шт.

3

131241A1

EDGE

cutting, bucket corner, weld-on

2шт.

4

131240A1

EDGE

cutting, bucket side, weld-on

2шт.

5

112104A1

LARGE PLATE

PLATE, LARGE wear

1шт.

6

L127038

EDGE, CUTTING

center, bolt-on

1шт.

7

L127429

EDGE, CUTTING

bucket corner, bolt-on

2шт.

8

L127054

PLOW BOLT,#3, Dome Hd, 3/4" - 10 x 3", Gr 8

plow, 3/4 NC x 3 inch, grade 8, bolt-on cutting edge

16шт.

9

429-1012

NUT,3/4"-10, G8

hex, NC, bolt-on cutting edge

16шт.

10

131994A1

PLATE

wear, rear, bolt-on cutting edge

2шт.

11

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

Bolt-on cutting edge

8шт.

12

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

flat, special, hardened, bolt-on cutting edge

8шт.
