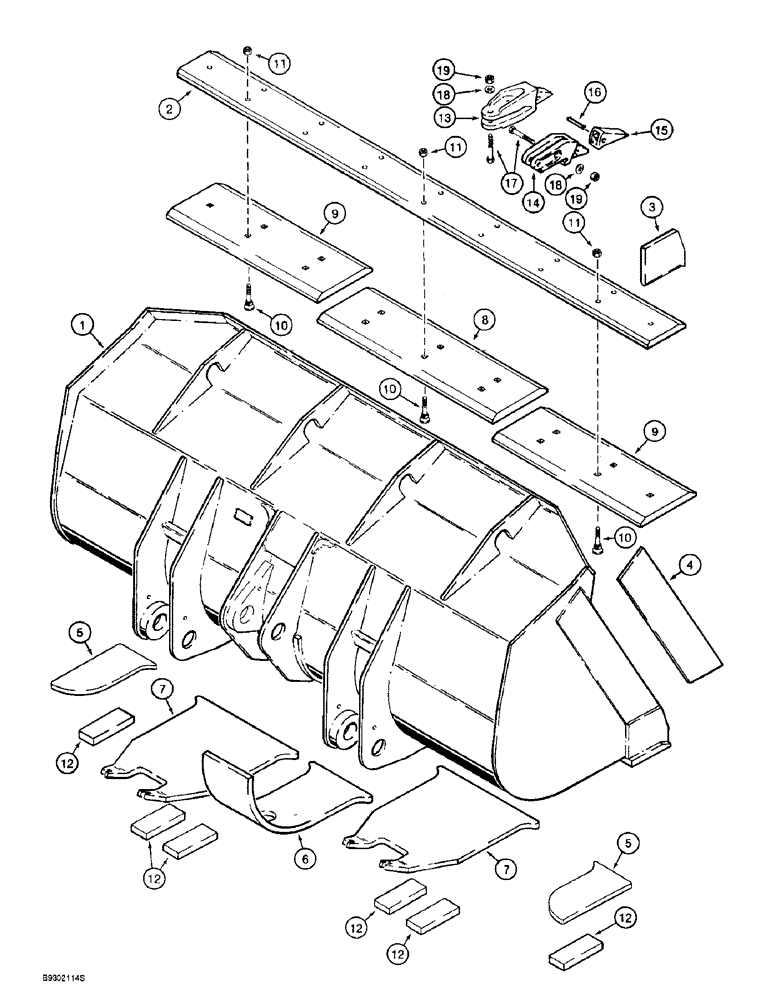

Запчасти Case 621B (9-018) - LOADER BUCKETS & CUTTING EDGES, 2.50 (1.9 ) & 2.75 CUBIC YD (2.1 CUBIC METER) BUCKETS, Z-BAR LOADER (09) - CHASSIS/ATTACHMENTS

L127460

BUCKET

ASSEMBLY loader, Includes: Ref. 1 - 7, order from Machinery Price List, 1.9 cubic meter (2.5 cubic yard), no longer available, order 130257A1 shown on Figure 9-019A

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

L127427

EDGE, CUTTING

bucket, weld-on

1шт.

3

L126115

EDGE, CUTTING

bucket corner, weld-on

2шт.

4

L127472

EDGE, CUTTING

bucket side, weld-on

2шт.

5

L127468

LARGE PLATE

PLATE, LARGE wear, outer

2шт.

6

L127470

STIFFENER

PLATE wear, center

1шт.

7

L127469

LARGE PLATE

PLATE, LARGE wear, bucket ear

2шт.

L127251

BUCKET

ASSEMBLY loader, Includes: Ref. 1 - 7 below, order from Machinery Price List, 2.1 cubic meter (2.75 cubic yard), no longer available, order 131238A1 shown on Figure 9-019C

1шт.

No bucket teeth are available for L127251 bucket

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

L127426

EDGE, CUTTING

bucket, weld-on

1шт.

3

L127292

EDGE, CUTTING

bucket corner, weld-on

2шт.

4

L127266

EDGE, CUTTING

bucket side, weld-on

2шт.

5

L125741

LARGE PLATE

PLATE, LARGE wear, outer

2шт.

6

L127049

STIFFENER

PLATE wear, center

1шт.

7

L126129

LARGE PLATE

PLATE, LARGE wear, bucket ear

2шт.

8

L127038

EDGE, CUTTING

center, bolt on, L127460 or L127251 bucket

1шт.

9

L127429

EDGE, CUTTING

bucket corner, bolt on, L127460 or L127251 bucket

2шт.

10

L127054

PLOW BOLT,#3, Dome Hd, 3/4" - 10 x 3", Gr 8

plow, 3/4 NC x 3 inch, grade 8, bolt on cutting edge, L127460 or L127251 bucket

16шт.

11

429-1012

NUT,3/4"-10, G8

hex, NC, bolt on cutting edge, L127460 or L127251 bucket

16шт.

12

L128081

LARGE PLATE

PLATE, LARGE wear, bolt on cutting edge, L127460 or L127251 bucket

6шт.

L129666

TOOTH

ASSEMBLY bucket, center, marked H and L, if used, Includes: Ref. 13, 15 and 16, L127460 bucket

7шт.

For ESCO teeth, see Figure 9-21A. ESCO teeth and H and L teeth should not be mixed on the same bucket.

1шт.

No bucket teeth are available for L127251 bucket

1шт.

L126938

TOOTH

ASSEMBLY bucket, corner, marked H and L, if used, Includes: Ref. 14 - 16, L127460 bucket

2шт.

For ESCO teeth, see Figure 9-21A. ESCO teeth and H and L teeth should not be mixed on the same bucket.

1шт.

No bucket teeth are available for L127251 bucket

1шт.

13

NSS

NOT SOLD SEPARAT

SHANK - bucket, center, L129666 tooth assembly, L127460 bucket

1шт.

14

NSS

NOT SOLD SEPARAT

SHANK - bucket, corner, L126938 tooth assembly, L127460 bucket

1шт.

15

D55468

TOOTH

tooth, standard forged, L127460 bucket

1шт.

16

L32090

PIN

PIN - flex, point retaining, bucket teeth, L127460 bucket

1шт.

17

326-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

Bucket teeth, L127460 bucket

18шт.

18

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

Bucket teeth, L127460 bucket

18шт.

19

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

Bucket teeth, L127460 bucket

18шт.
