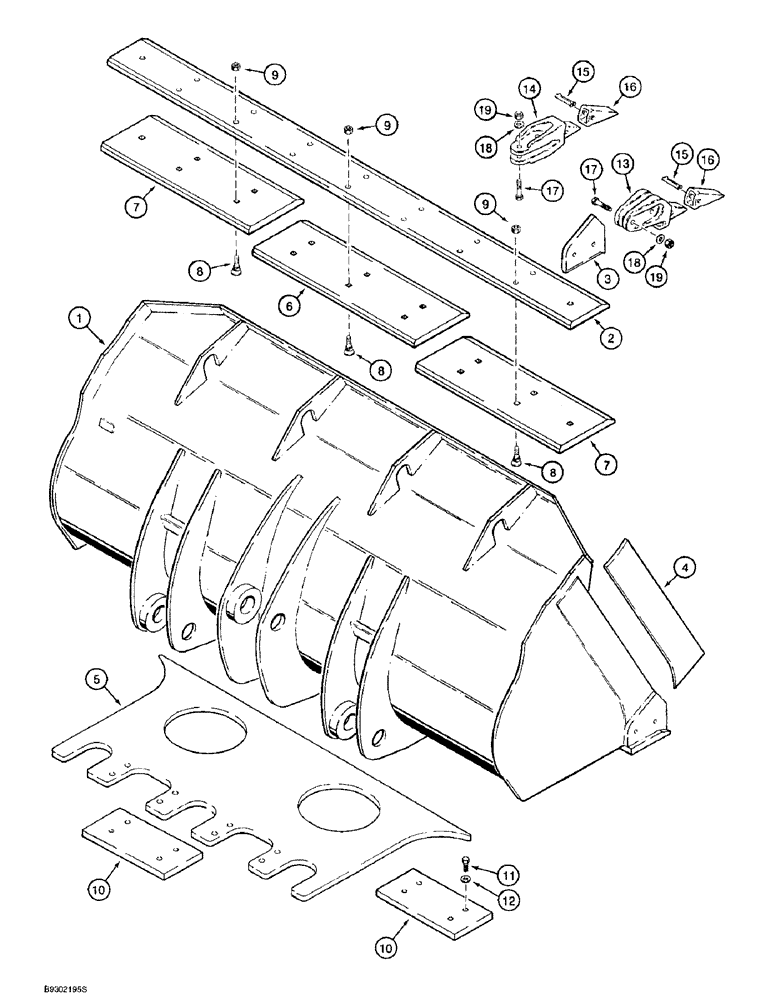

Запчасти Case 621B (9-016) - LOADER BUCKET AND CUTTING EDGES, 2.25 CUBIC YARD (1.7 CUBIC METER) BUCKET, Z-BAR LOADER (09) - CHASSIS/ATTACHMENTS

109297A1

BUCKET

ASSEMBLY loader, Includes: Ref. 1 - 5, order from Machinery Price List, 1.7 cubic meter (2.25 cubic yard)

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

L127359

EDGE, CUTTING

bucket front, weld-on

1шт.

3

116167A1

EDGE, CUTTING

bucket corner, weld-on

2шт.

4

106298A1

EDGE, CUTTING

bucket side, weld-on

1шт.

5

106300A1

PLATE

wear, skid, bucket bottom, weld-on

1шт.

6

L127366

EDGE, CUTTING

center, bolt-on

1шт.

7

L127367

EDGE, CUTTING

end, bolt-on

2шт.

8

R56474

PLOW BOLT

plow, 3/4 NC x 2-1/2 inch, grade 8, bolt-on cutting edge

16шт.

9

429-1012

NUT,3/4"-10, G8

hex, NC, bolt-on cutting edge

16шт.

10

113946A1

PLATE

wear, bolt-on, cutting edge

2шт.

11

426-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

On cutting edge

8шт.

12

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

flat, special, hardened, bolt-on cutting edge

8шт.

R54275

TOOTH

ASSEMBLY bucket, center, marked H and L, Includes: Ref. 14 - 16, if used

7шт.

For ESCO teeth, see Figure 9-21A. ESCO teeth and H and L teeth should not be mixed on the same bucket.

1шт.

L126897

TOOTH

ASSEMBLY bucket, corner, marked H and L, Includes: Ref. 13, 15 and 16, if used

2шт.

For ESCO teeth, see Figure 9-21A. ESCO teeth and H and L teeth should not be mixed on the same bucket.

1шт.

13

NSS

NOT SOLD SEPARAT

SHANK - bucket, corner, L126897 tooth assembly

1шт.

14

NSS

NOT SOLD SEPARAT

SHANK - bucket, center, R54275 tooth assembly

1шт.

15

D39448

PIN

flex, point retaining, bucket teeth

1шт.

16

L55608

POINT

tooth, bucket

1шт.

17

426-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

Bucket teeth

18шт.

18

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

Bucket teeth

18шт.

19

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

Bucket teeth

18шт.
