(9-006) - LOADER BUCKET HEIGHT CONTROL, AND RETURN-TO-TRANSPORT, Z-BAR LOADER

Запчасти Case 621B (9-006) - LOADER BUCKET HEIGHT CONTROL, AND RETURN-TO-TRANSPORT, Z-BAR LOADER (09) - CHASSIS/ATTACHMENTS

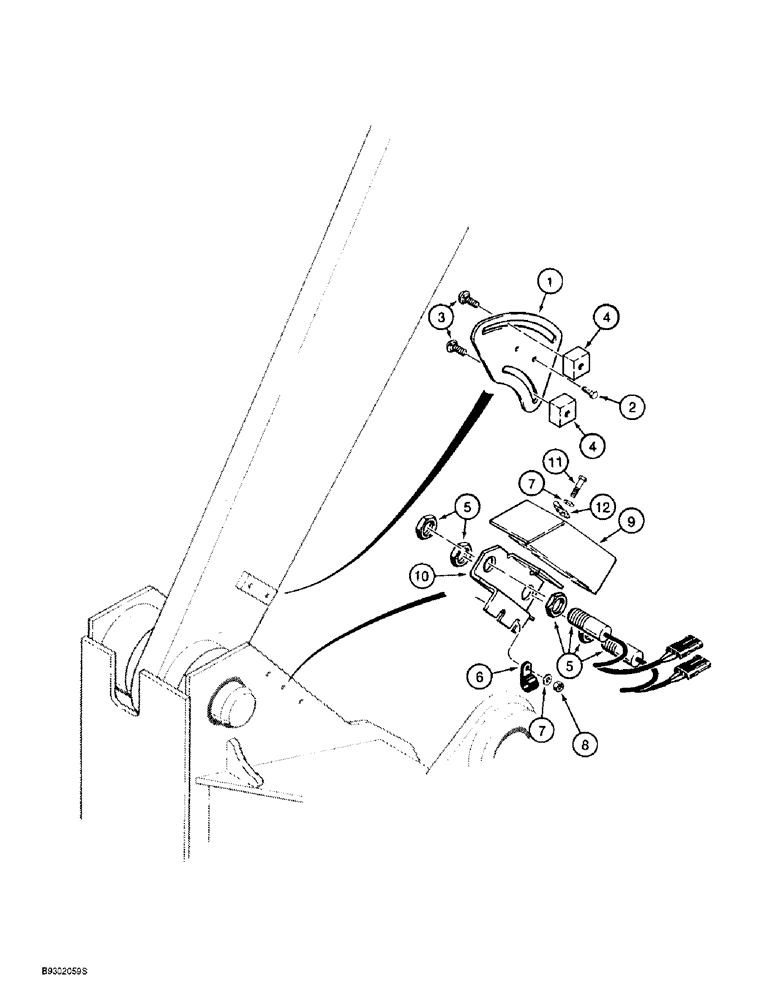

Схема запчастей Case 621B - (9-006) - LOADER BUCKET HEIGHT CONTROL, AND RETURN-TO-TRANSPORT, Z-BAR LOADER (09) - CHASSIS/ATTACHMENTS
1
8
6
10
5
12
3
4
2
4
11
9
5
7
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

L124660

PLATE

mounting, actuator switches

1шт.

2

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

2шт.

3

411-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 2

2шт.

4

L125976

SWITCH

ACTUATOR - switch, proximity

2шт.

5

1546498C1

SWITCH

proximity, includes nuts, height control and, Serial Range: return-transport

2шт.

6

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

7

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

8

231-1406

LOCK NUT,3/8"-16, GB

2шт.

9

L125258

COVER

proximity switches

1шт.

10

L128899

SUPPORT

BRACKET mounting, proximity switches

1шт.

11

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

2шт.

12

131-856

SPRING NUT,Ret, J, 3/8"-16

2шт.
