(9-004) - LOADER BUCKET RETURN-TO-DIG, XT LOADER

Запчасти Case 621B (9-004) - LOADER BUCKET RETURN-TO-DIG, XT LOADER (09) - CHASSIS/ATTACHMENTS

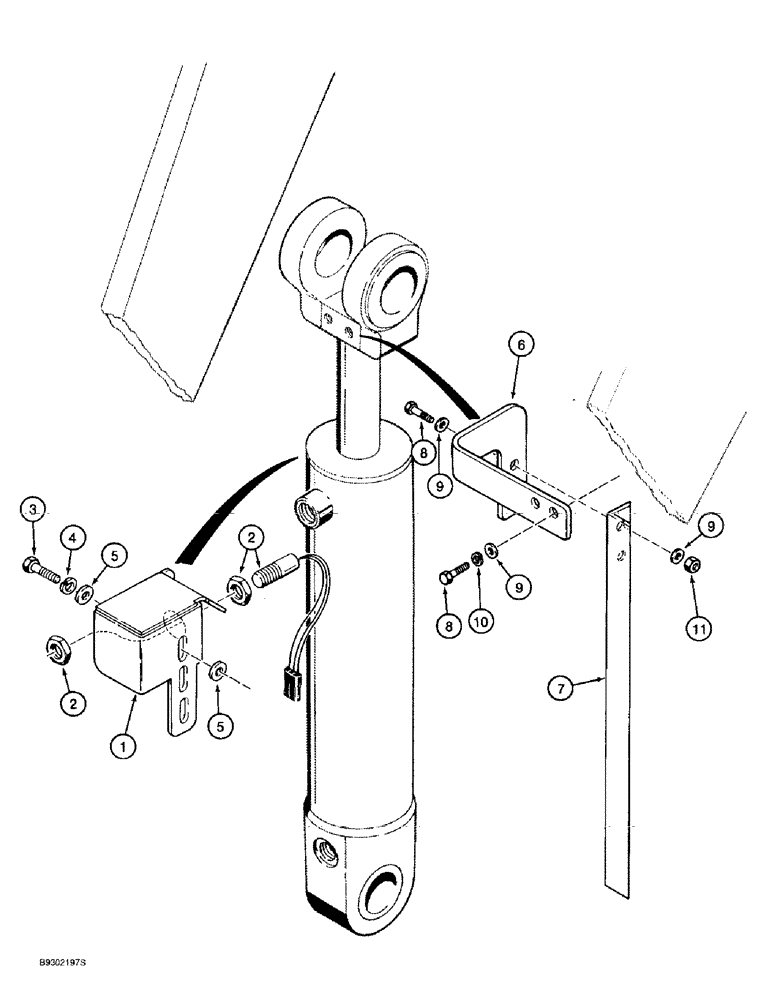

Схема запчастей Case 621B - (9-004) - LOADER BUCKET RETURN-TO-DIG, XT LOADER (09) - CHASSIS/ATTACHMENTS
4
1
11
2
7
8
9
9
3
6
10
5
2
5
8
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

114525A1

SUPPORT

BRACKET mounting

1шт.

2

1546498C1

SWITCH

proximity, return-to-dig

1шт.

3

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

6

114539A1

SUPPORT

BRACKET formed, mounting

1шт.

7

116334A1

ANGLE BAR

mounting bracket

1шт.

8

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

9

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch)

6шт.

10

492-11038

LOCK WASHER,3/8"

2шт.

11

231-1446

NUT,3/8" - 16, Gr 5

2шт.
