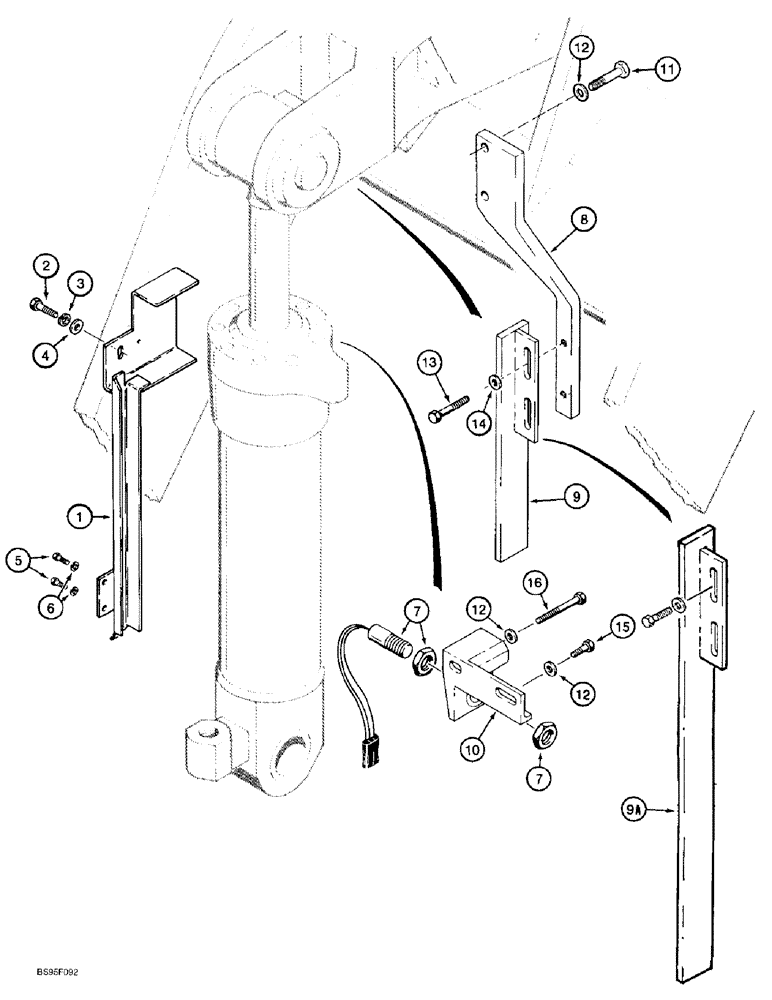

Запчасти Case 621B (9-002) - LOADER BUCKET RETURN-TO-DIG, Z-BAR LOADER (09) - CHASSIS/ATTACHMENTS

1

L127182

PROTECTOR

harness, return-to-dig

1шт.

2

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

1шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

4

495-21056

WASHER,1/2"

9/16 x 1-3/8 x 7/64 inch

1шт.

5

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

2шт.

6

492-11038

LOCK WASHER,3/8"

2шт.

7

1546497C1

SWITCH

proximity, includes nuts, return-to-dig

1шт.

8

L128809

SUPPORT

BRACKET return-to-dig

1шт.

9

L128837

SUPPORT

BAR sensing, return-to-dig, models with standard reach

1шт.

9a

L303368

INDICATOR

BAR sensing, return-to-dig, models with extended reach

1шт.

10

L125983

SUPPORT

BRACKET mounting, proximity switch

1шт.

11

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

2шт.

12

187563A1

SPACER

13 x 25 x 28 mm

4шт.

13

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

2шт.

14

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

2шт.

15

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1шт.

16

426-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

1шт.
