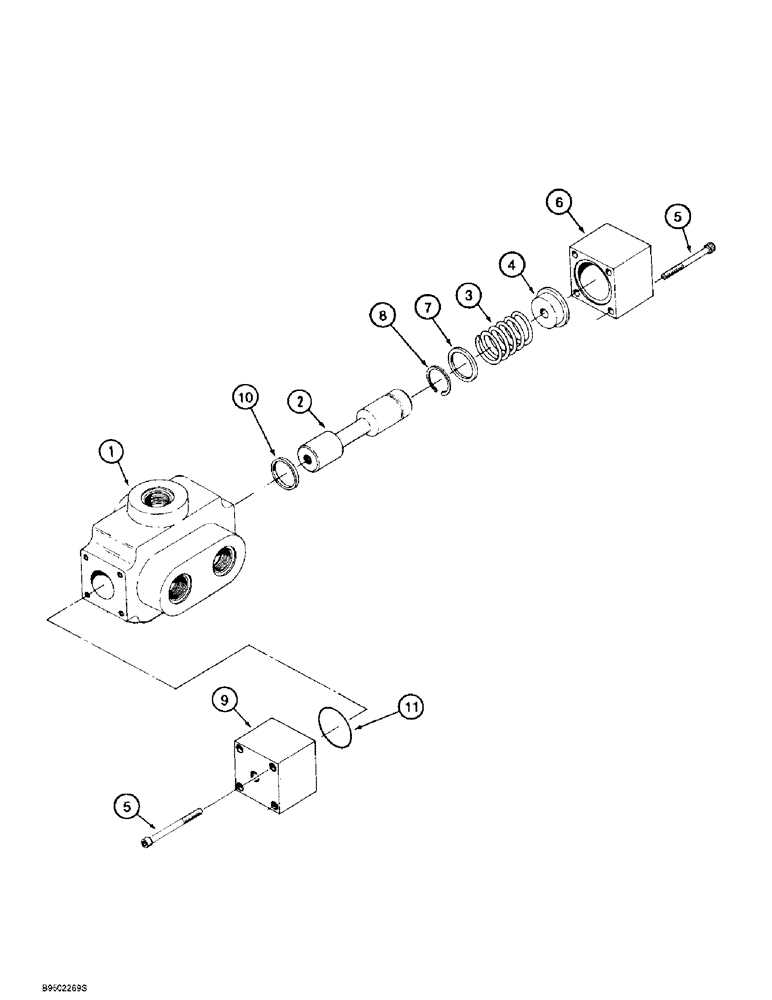

Запчасти Case 621B (8-99A) - RIDE CONTROL DIRECTIONAL VALVE ASSEMBLY (08) - HYDRAULICS

106488A1

VALVE

ASSEMBLY directional control, ride control, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve, order 106488A1 valve assembly

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve, order 106488A1 valve assembly

1шт.

3

33-1165T1

COMPRESSION SPRING

1шт.

4

33-1171T1

SPACER

spring

1шт.

5

33-1168T1

HEX SOC SCREW

hex socket, special, 1/4 NC x 2 inch, grade 8

8шт.

6

33-1170T1

CAP

End

1шт.

7

33-1164T1

WASHER

spool

1шт.

8

D23692

SNAP RING,#100, Ext, Crescent

#100, Ext, Crescent

1шт.

9

123253A1

VALVE BODY

CAP - end pilot

1шт.

123254A1

SEAL KIT

valve, Includes: Ref. 10, 11 and dust seal not used in this application

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - quad, order 123254A1 kit

2шт.

11

NSS

NOT SOLD SEPARAT

O-RING - valve, order 123254A1 kit

1шт.
