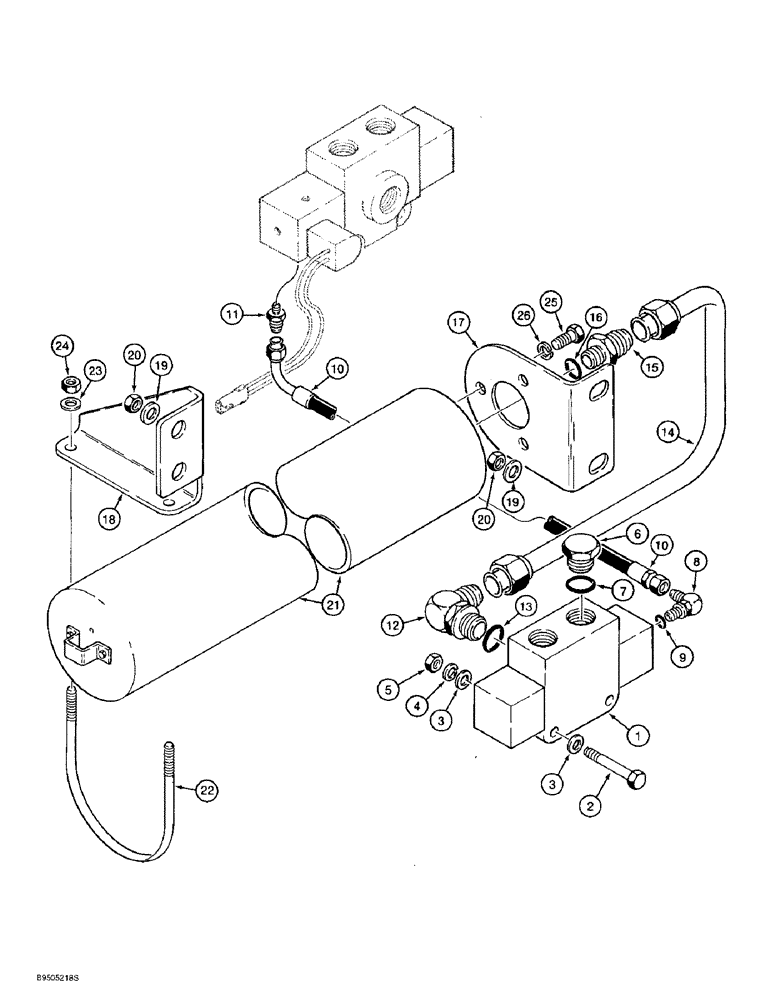

Запчасти Case 621B (8-96) - RIDE CONTROL HYDRAULIC CIRCUIT, DIRECTIONAL VALVE TO MASTER VALVE AND ACCUMULATOR (08) - HYDRAULICS

1

106488A1

VALVE

ASSEMBLY directional control, see Figure 8-99A

1шт.

2

326-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

2шт.

3

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

425-106

NUT,3/8"-16, Cl 5

2шт.

6

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Includes: Ref. 7

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

50-3561T1

FITTING

ELBOW, 90 degree, 9/16-18 flare x 7/16-20 inch O-ring boss, forged, Includes: Ref. 9

1шт.

9

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

10

131235A1

HOSE ASSY.

830 mm (32-5/8 inch) long, directional valve to master directional valve

1шт.

11

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

Straight

1шт.

12

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 13

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

14

131204A1

TUBE,19.04 mm OD, 284, 204 mm Length

directional valve to accumulator

1шт.

15

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

Straight, Includes Ref 16

2шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

17

130133A1

SUPPORT

BRACKET mounting, accumulator, front

1шт.

18

130134A1

SUPPORT

BRACKET mounting, accumulator, rear

1шт.

19

187563A1

SPACER

13 x 25 x 28 mm

4шт.

20

231-1448

NUT,1/2"-13, GB

NC

4шт.

21

130354A1

ACCUMULATOR

ASSEMBLY ride control, see Figure 8-99B

1шт.

22

L128472

U-BOLT

special, accumulator mounting

1шт.

23

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

24

231-1446

NUT,3/8" - 16, Gr 5

2шт.

25

414-814

BOLT,Hex, 1/2" - 20 x 7/8", Gr 5

3шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

3шт.
