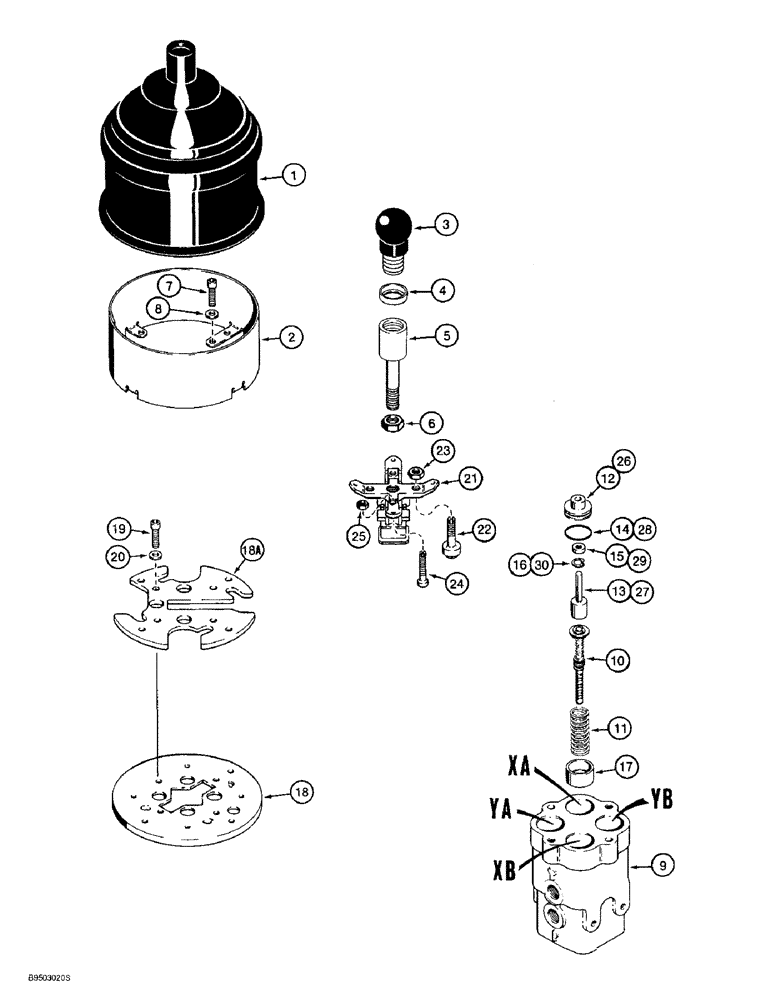

Запчасти Case 621B (8-90) - AUXILIARY REMOTE CONTROL VALVE, 117919A1 (08) - HYDRAULICS

117919A1

VALVE

ASSEMBLY control, single lever remote, Includes: Ref. 1 - 30

1шт.

1

120519A1

BOOT

dust

1шт.

2

120533A1

CLAMP

COLLAR control valve

1шт.

3

120712A1

KNOB

control lever

1шт.

4

120560A1

WASHER

WASHER - boot

1шт.

5

120521A1

LEVER

control

1шт.

6

425-148

JAM NUT,Jam, 1/2"-13, G5

1шт.

7

361-31012

HEX SOC SCREW,#10 - 24 x 3/4"

No. 10 NC x 3/4 inch

2шт.

8

1978189C1

WASHER

flat, special, 17/64 x 1/2 x 1/32 inch

2шт.

120702A1

VALVE

ASSEMBLY remote control, Includes: Ref. 9 - 30

1шт.

9

NSS

NOT SOLD SEPARAT

HOUSING - control valve

1шт.

10

1971884C1

SPOOL

ASSEMBLY remote control valve, valve ports XA, XB, YA, and YB

4шт.

11

1978191C1

SPRING

spool, valve ports XA, XB, YA, and YB

4шт.

109753A1

PLUNGER

ASSEMBLY control valve, valve ports XA, XB, and YA, Includes: Ref. 12 - 16

3шт.

12

1978195C1

GUIDE

valve, 1/2 inch long

1шт.

13

109765A1

PLUNGER

valve, 1 inch long stem

1шт.

14

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

1шт.

15

N14759

SEAL,11.68mm ID x 13.46mm OD x 3.38mm Thk

U-cup, plunger

1шт.

16

100-2150

SNAP RING,0.50", Int, #50

Plunger

1шт.

17

1978192C1

RACE

SLEEVE - spool

4шт.

18

1978196C1

LARGE PLATE

PLATE, LARGE plastic, lower

1шт.

18a

1978197C1

LARGE PLATE

PLATE, LARGE metal, upper

1шт.

19

361-31012

HEX SOC SCREW,#10 - 24 x 3/4"

BOLT - hex socket, No. 10 NC x 3/4 inch

2шт.

20

1978189C1

WASHER

17/64 x 1/2 x 1/32 inch

2шт.

120703A1

BRACKET

ASSEMBLY control valve, Includes: Ref. 21 - 25

1шт.

21

1978199C1

CAM

PIVOT - bracket

1шт.

22

1978203C1

SCREW

ACTUATOR - spool, large

2шт.

23

425-155

JAM NUT,Jam, 5/16"-24, G5

2шт.

24

1978204C1

SCREW

ACTUATOR - spool, small

2шт.

25

425-144

JAM NUT,Jam, 1/4"-20, G5

2шт.

1971896C1

PLUNGER

ASSEMBLY control valve, Includes: Ref. 26 - 30

1шт.

26

1978193C1

GUIDE

valve, 5/8 inch long

1шт.

27

109765A1

PLUNGER

valve, 1 inch long stem

1шт.

28

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

1шт.

29

N14759

SEAL,11.68mm ID x 13.46mm OD x 3.38mm Thk

U-cup, plunger

1шт.

30

100-2150

SNAP RING,0.50", Int, #50

Plunger

1шт.
