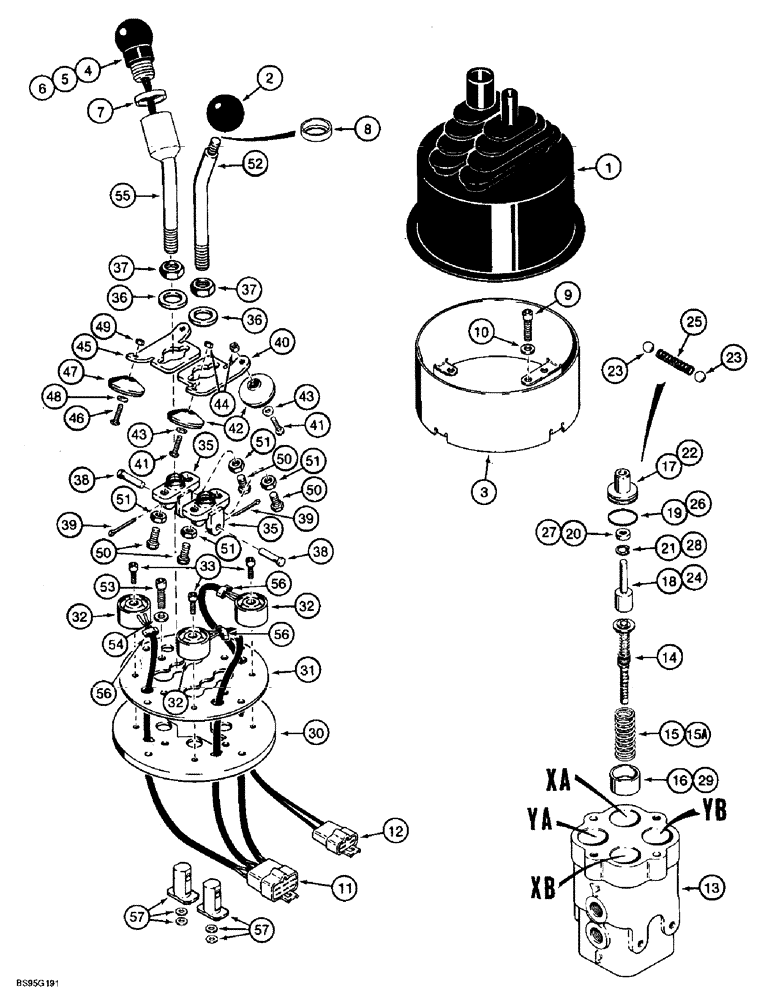

Запчасти Case 621B (8-84) - DUAL LEVER REMOTE CONTROL VALVE, 109509A1 (08) - HYDRAULICS

109509A1

LEVER ASSY & KNOB

VALVE control, dual remote, Includes: Ref. 1 -57

1шт.

1

120636A1

BELLOWS

BOOT - dust

1шт.

2

120637A1

BALL KNOB

control lever

1шт.

3

120533A1

CLAMP

COLLAR control valve

1шт.

120562A1

LEVER

KNOB ASSEMBLY control, Includes: Ref. 4 - 6

1шт.

4

120590A1

LEVER

HOUSING knob

1шт.

5

120591A1

IGNITION SWITCH

push button

1шт.

6

120592A1

BOOT

switch

1шт.

7

120560A1

WASHER

WASHER - boot

1шт.

8

112952A1

CUP WASHER

WASHER - boot retaining

1шт.

9

361-31012

HEX SOC SCREW,#10 - 24 x 3/4"

No. 10 NC x 3/4 inch

2шт.

10

1978189C1

WASHER

17/64 x 1/2 x 1/32 inch

2шт.

11

449797C1

CONTACT HOUSING,Male, 6 Pole

CONNECTOR magnetic coil, 6 contact

1шт.

12

872290R1

ELEC CONNECTOR,Male

CONNECTOR - magnetic coil, 2 contact

1шт.

120635A1

VALVE

ASSEMBLY remote control, Includes: Ref. 13 - 57

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - control valve

1шт.

14

120638A1

SPOOL

control valve, valve ports XA, XB,YA, and YB

4шт.

15

1978191C1

SPRING

spool, valve ports XA and YA

2шт.

15a

120567A1

SPRING

centering, valve ports XB and YB

2шт.

16

1978192C1

RACE

SLEEVE - spool, valve ports XA, XB, and YA

3шт.

109627A1

PLUNGER ASSY.

control valve, valve ports XA, XB, and YA, Includes: Ref. 17 - 21

3шт.

17

1978207C1

GUIDE

valve, 15/16 inch long, long stem

1шт.

18

109839A1

PIN,6.32mm OD x 48.31mm L

Plunger - valve, 1-1/4 inch long stem

1шт.

19

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

1шт.

20

N14759

SEAL,11.68mm ID x 13.46mm OD x 3.38mm Thk

U-cup, plunger

1шт.

21

100-2150

SNAP RING,0.50", Int, #50

Plunger

1шт.

120566A1

PLUNGER

ASSEMBLY control valve, with feel, valve port YB, Includes: Ref. 22 - 29

1шт.

22

1978207C1

GUIDE

valve, 15/16 inch long

1шт.

23

211-1004

BALL,3.17mm OD, Gr 24

2шт.

24

120584A1

PLUNGER

valve

1шт.

25

120582A1

SPRING

plunger

1шт.

26

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

1шт.

27

N14759

SEAL,11.68mm ID x 13.46mm OD x 3.38mm Thk

U-cup, plunger

1шт.

28

100-2150

SNAP RING,0.50", Int, #50

Plunger

1шт.

29

122544A1

OIL SEAL

SLEEVE - spool

1шт.

30

1978196C1

LARGE PLATE

PLATE, LARGE plastic, lower

1шт.

31

1978208C1

LARGE PLATE

PLATE, LARGE metal, upper

1шт.

32

109713A1

ELEC. TERMINAL PIN

COIL - magnetic

3шт.

33

189291A1

SCREW,#10 - 24 x 5/8", w/ Lkg Patch

hex socket with lock patch, special, No. 10 NC x 5/8 inch

3шт.

35

N13680

PIVOT

control valve

2шт.

36

1978212C1

SPACER

WASHER - flat, special, 43/64 x 1-5/64 x 1/8 inch

2шт.

37

425-158

JAM NUT,Jam, 1/2"-20, G5

2шт.

38

109716A1

PIN,6.38mm OD x 25.15mm L

2шт.

39

432-416

COTTER PIN,1/16" x 1"

1/16" x 1"

2шт.

120641A1

SUPPORT

PLATE ASSEMBLY - control valve, Includes: Ref. 40 - 44

1шт.

40

1978210C1

BRACKET

PLATE - control valve

1шт.

41

132760

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

No. 8 NC x 1/2 inch

2шт.

42

120704A1

DISC

armature, electromagnet

2шт.

43

111248A1

SEALING WASHER

special, disc alignment

2шт.

44

225-13108

NUT,#8-32

2шт.

120642A1

SUPPORT

PLATE ASSEMBLY - control valve, Incudes: Ref. 45 - 49

1шт.

45

1978210C1

BRACKET

PLATE - control valve

1шт.

46

132760

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

No. 8 NC x 1/2 inch

1шт.

47

120704A1

DISC

armature, electromagnet

1шт.

48

111248A1

SEALING WASHER

special, disc alignment

1шт.

49

225-13108

NUT,#8-32

1шт.

50

N13679

BOLT

special, spool actuator

4шт.

51

425-155

JAM NUT,Jam, 5/16"-24, G5

Hex

4шт.

52

1971898C1

LEVER

control

1шт.

53

361-31012

HEX SOC SCREW,#10 - 24 x 3/4"

No. 10 NC x 3/4 inch

2шт.

54

1978189C1

WASHER

flat, special, 17/64 x 1/2 x 1/32 inch

2шт.

55

120646A1

LEVER ASSY & KNOB

control

1шт.

56

109752A1

MOUNTING CLIP

magnetic coil

3шт.

57

N13681

POST

control valve, includes two sleeve bearings

2шт.
