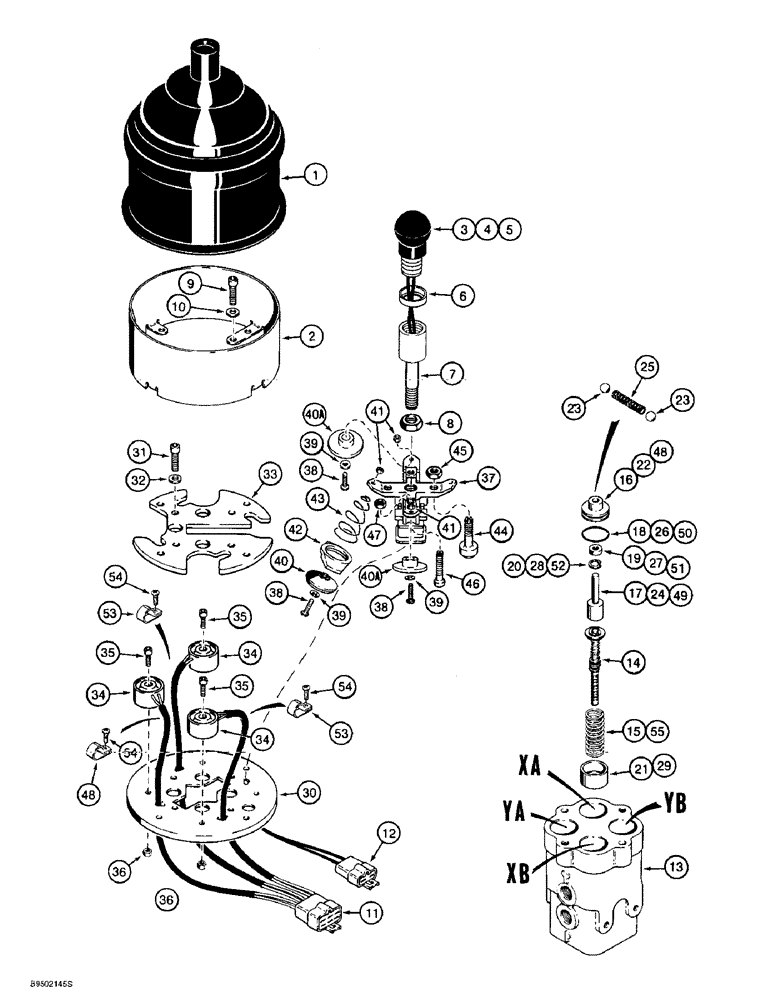

Запчасти Case 621B (8-80) - SINGLE LEVER REMOTE CONTROL VALVE, 109508A1 (08) - HYDRAULICS

109508A1

VALVE

ASSEMBLY control, single lever remote, Includes: Ref. 1 - 55

1шт.

109508A1R

REMAN-HYD VALVE

Reman ASSEMBLY control, single lever remote, Includes: Ref. 1 - 55

1шт.

109508A1C

CORE-VALVE HYD

Return Number

1шт.

1

120519A1

BOOT

dust

1шт.

2

120533A1

CLAMP

COLLAR control valve

1шт.

120562A1

LEVER

KNOB ASSEMBLY control, Includes: Ref. 3 - 5

1шт.

3

120590A1

LEVER

HOUSING knob

1шт.

4

120591A1

IGNITION SWITCH

push button

1шт.

5

120592A1

BOOT

switch

1шт.

6

120560A1

WASHER

WASHER boot

1шт.

7

120521A1

LEVER

control

1шт.

8

429-108

NUT,1/2"-13, G8

1/2 inch NC, grade 8

1шт.

9

361-31012

HEX SOC SCREW,#10 - 24 x 3/4"

No. 10 NC x 3/4 inch

2шт.

10

1978189C1

WASHER

17/64 x 1/2 x 1/32 inch

2шт.

11

449797C1

CONTACT HOUSING,Male, 6 Pole

CONNECTOR magnetic coil, 6 contact

1шт.

12

872290R1

ELEC CONNECTOR,Male

CONNECTOR magnetic coil, 2 contact

1шт.

120518A1

VALVE

ASSEMBLY remote control, Includes: Ref. 13 - 55

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING control valve

1шт.

14

1971884C1

SPOOL

ASSEMBLY remote control valve, valve ports XA, XB, YA, and YB

4шт.

15

1978191C1

SPRING

spool, valve ports YA and YB

2шт.

109753A1

PLUNGER

ASSEMBLY control valve, valve ports XB and YA, Includes: Ref. 16 - 20

2шт.

16

1978195C1

GUIDE

valve, 1/2 inch long, short stem

1шт.

17

109765A1

PLUNGER

valve, 1 inch long stem

1шт.

18

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

1шт.

19

N14759

SEAL,11.68mm ID x 13.46mm OD x 3.38mm Thk

U-cup, plunger

1шт.

20

100-2150

SNAP RING,0.50", Int, #50

Plunger

1шт.

21

1978192C1

RACE

SLEEVE spool, valve ports XB, YA, and YB

3шт.

120639A1

PLUNGER

ASSEMBLY control valve, with feel, valve port XA, Includes: Ref. 22 - 29

1шт.

22

1978195C1

GUIDE

valve, 1/2 inch long

1шт.

23

211-1004

BALL,3.17mm OD, Gr 24

2шт.

24

120647A1

PLUNGER

valve

1шт.

25

120582A1

SPRING

plunger

1шт.

26

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

1шт.

27

N14759

SEAL,11.68mm ID x 13.46mm OD x 3.38mm Thk

U-cup, plunger

1шт.

28

100-2150

SNAP RING,0.50", Int, #50

Plunger

1шт.

29

120583A1

OIL SEAL

SLEEVE spool

1шт.

30

1978196C1

LARGE PLATE

PLATE, LARGE plastic, lower

1шт.

31

361-31012

HEX SOC SCREW,#10 - 24 x 3/4"

No. 10 NC x 3/4 inch

2шт.

32

1978189C1

WASHER

flat, special, 17/64 x 1/2 x 1/32 inch

2шт.

33

1978197C1

LARGE PLATE

PLATE, LARGE metal, upper

1шт.

34

109713A1

ELEC. TERMINAL PIN

COIL magnetic

3шт.

35

461-3108

HEX SOC SCREW,#10 - 24 x 1/2"

No. 10 NC x 1/2 inch

3шт.

36

225-14110

NUT,#10-24

3шт.

122452A1

SUPPORT

ARMATURE ASSEMBLY control valve, Includes: Ref. 37 - 47

1шт.

37

1978199C1

CAM

PIVOT armature

1шт.

38

182-87

SCREW,Slotted Pan Hd, #8-32 X 5/8"

No. 8 x 5/8 inch

3шт.

39

111248A1

SEALING WASHER

special, disc alignment

3шт.

REF. 39 LOOKS MORE LIKE A SELF-ALIGNING BALL THAN A WASHER ON THE PRINT

1шт.

40

121563A1

TAPPET

DISC armature, electromagnet, no longer available, order 120704A1 disc, Ref. 40A, for service

1шт.

40a

120704A1

DISC

armature, electromagnet

1шт.

41

225-14108

NUT,#8-32

3шт.

42

122459A1

CLAMP

COLLAR armature

1шт.

43

1978202C1

SPRING

armature

1шт.

44

1978203C1

SCREW

ACTUATOR spool, large

2шт.

45

425-155

JAM NUT,Jam, 5/16"-24, G5

2шт.

46

1978204C1

SCREW

ACTUATOR spool, small

2шт.

47

425-144

JAM NUT,Jam, 1/4"-20, G5

2шт.

1971896C1

PLUNGER

ASSEMBLY control valve, valve port YB, Includes: Ref. 48 - 52

1шт.

48

1978193C1

GUIDE

valve, 5/8 inch long

1шт.

49

109765A1

PLUNGER

valve, 1 inch long stem

1шт.

50

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

1шт.

51

N14759

SEAL,11.68mm ID x 13.46mm OD x 3.38mm Thk

U-cup, plunger

1шт.

52

100-2150

SNAP RING,0.50", Int, #50

Plunger

1шт.

53

109769A1

CLAMP

P-type

3шт.

54

440-1104

SCREW,Cross Pan Hd, #10-24 x 1/4"

No. 10 NC x 1/4 inch

3шт.

55

120567A1

SPRING

centering, valve ports XA and XB

2шт.
