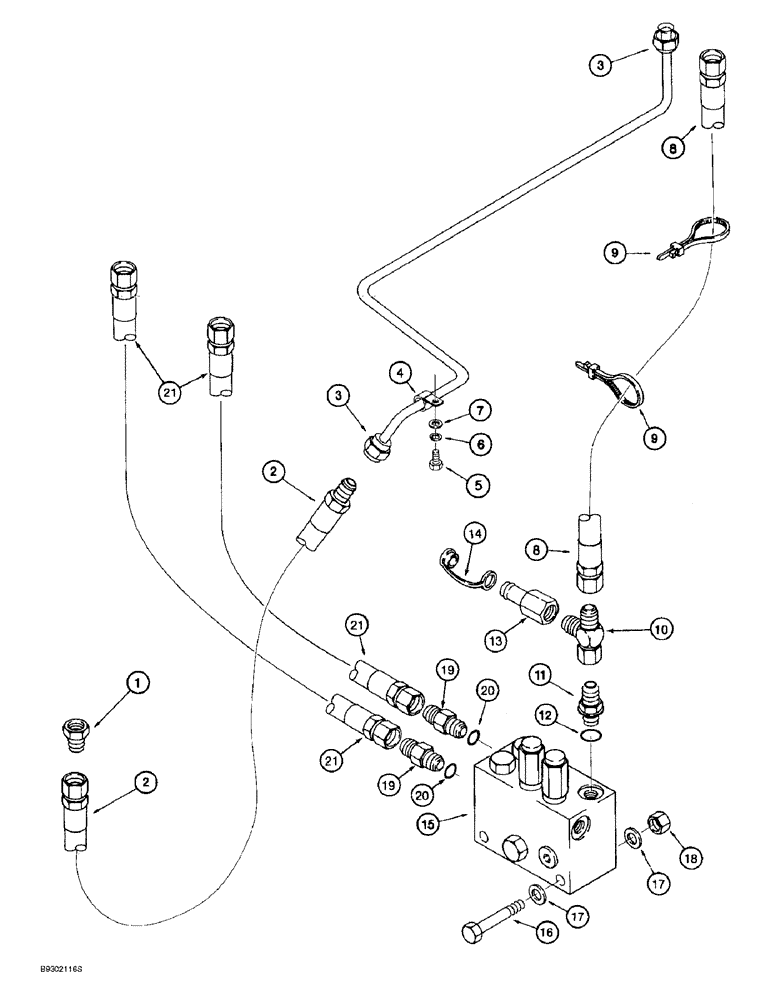

Запчасти Case 621B (8-78) - REMOTE LOADER CONTROL CIRCUIT, RETURN TO HYDRAULIC RESERVOIR AND PRESSURE REDUCING VALVE (08) - HYDRAULICS

1

218-786

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

1шт.

2

L124336

HOSE

600 mm (23-5/8 in) long, Tube To Hydraulic reservoir

1шт.

3

L126571

PIPE,9.52 mm OD

Hose Separator To Hose At Hydraulic Reservoir

1шт.

4

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

5

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch)

1шт.

8

109056A1

HOSE ASSY.

645 mm (25-3.8 in) long, To Pressure Reducing Valve

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

2шт.

10

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1-2шт.

Two Ref. 10 tees are used in this area on XT loaders, see Figure 8-24, Ref. 4. One tee is used on Z-Bar loaders.

1шт.

11

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 12

1шт.

13

101792A1

COUPLING

quick disconnect

1шт.

14

H434163

DUST CAP

1шт.

15

108525A3

VALVE

ASSEMBLY pressure reducing, see Figure 8-92

1шт.

16

426-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 8

2шт.

17

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch)

4шт.

18

231-1446

NUT,3/8" - 16, Gr 5

2шт.

19

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Straight, O-ring boss, Incl. Ref. 20

2шт.

20

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

21

109795A1

HOSE

580 mm (22-7/8 in) long, pressure reducing valve to hydraulic pump

2шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
