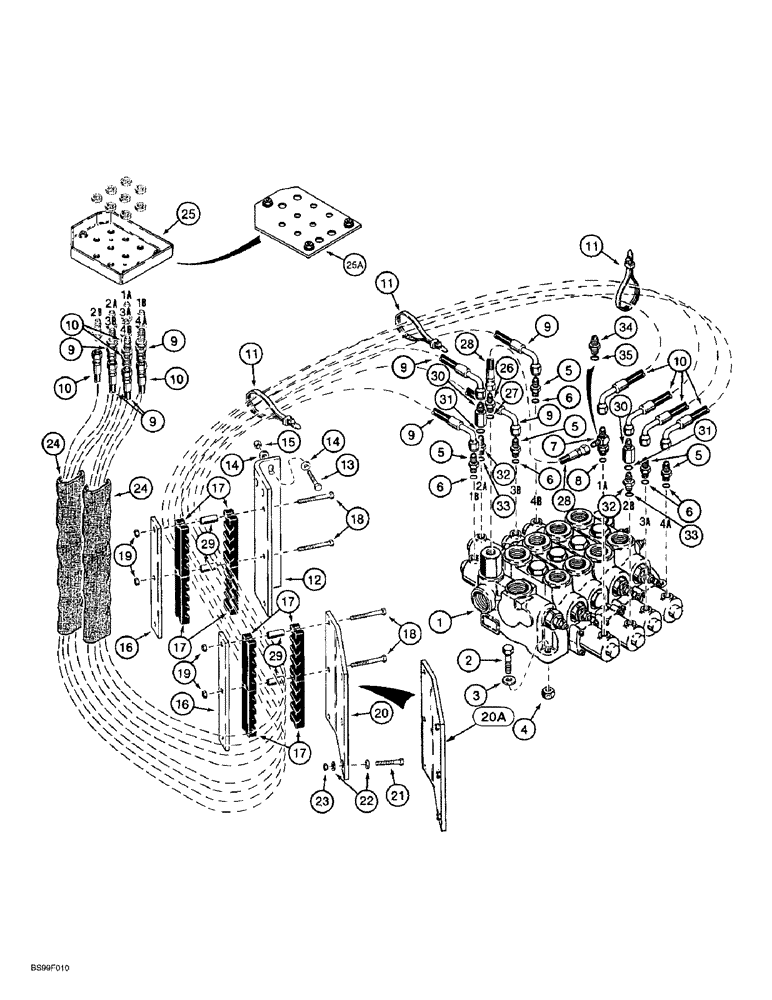

Запчасти Case 621B (8-76) - REMOTE LOADER CONTROL CIRCUIT, HOSE SEPARATOR TO FOUR SPOOL VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve Assy, control, loader, four spool, see Figure 8-06 or 8-07A for correct assembly

1шт.

2

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

3шт.

3

495-21056

WASHER,1/2"

9/16 x 1-3/8 x 7/64 inch

3шт.

4

231-1448

NUT,1/2"-13, GB

NC

3шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

At ports 1B, 3A, 3B, 4A, and 4B, Incl. Ref. 6

5шт.

7

L124527

TEE

special, at port 1A, Z-Bar loader, Includes: Ref. 8

1шт.

9

L124308

HOSE,9.53mm ID x 2210mm L, SAE 100R3

2210 mm (87 inch) long, hose separator to ports 1B, 2A, 3B, and 4B

4шт.

10

L124310

HOSE

3200 mm (126 inch) long, hose separator to ports 1A, 2B, 3A, and 4A

4шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

12

114654A1

BRACKET

mounting, bolts to front chassis

1шт.

13

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

3шт.

14

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch)

6шт.

15

231-1446

NUT,3/8" - 16, Gr 5

3шт.

16

L127357

LARGE PLATE

PLATE, LARGE mounting, bracket

2шт.

17

L124271

FIXING BRACKET

rubber, hose retaining

8шт.

18

326-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

6шт.

19

231-1446

NUT,3/8" - 16, Gr 5

6шт.

20

114653A1

BRACKET

mounting, bolts to rear frame, no longer used, order Ref. 20A, 235248A1 bracket

1шт.

20a

235248A1

BRACKET

control hose, replaces 114653A1 bracket

1шт.

21

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

3шт.

22

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch), Used with 114653A1 bracket

6шт.

23

231-1446

NUT,3/8" - 16, Gr 5

Used with 114653A1 bracket

3шт.

24

S120426

TUBE

hose protector

2шт.

25

1339969C1

LARGE PLATE

PLATE, LARGE SEPARATOR hose, loader control, if used

1шт.

25a

137716A2

LARGE PLATE

PLATE, LARGE SEPARATOR hose, loader control, if used

1шт.

26

L129691

FITTING

straight, flow reducing, special, Z-Bar loader, Includes: Ref. 27

1шт.

28

L128977

TUBE ASSY.

HOSE, 510 mm (20 inch) long, inlet and outlet section to tee at port 1A, Z-Bar loader

1шт.

29

L126936

SPACER

34 mm long

6шт.

L110143

VALVE

check, Includes: Ref. 30 - 33

1шт.

30

NSS

NOT SOLD SEPARAT

Body, check valve

1шт.

32

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 33

1шт.

34

218-5029

HYD CONNECTOR,9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Adapter, Straight, O-ring boss, at port 1A, XT loader, Includes: Ref. 35

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

27

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

31

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

33

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

35

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
