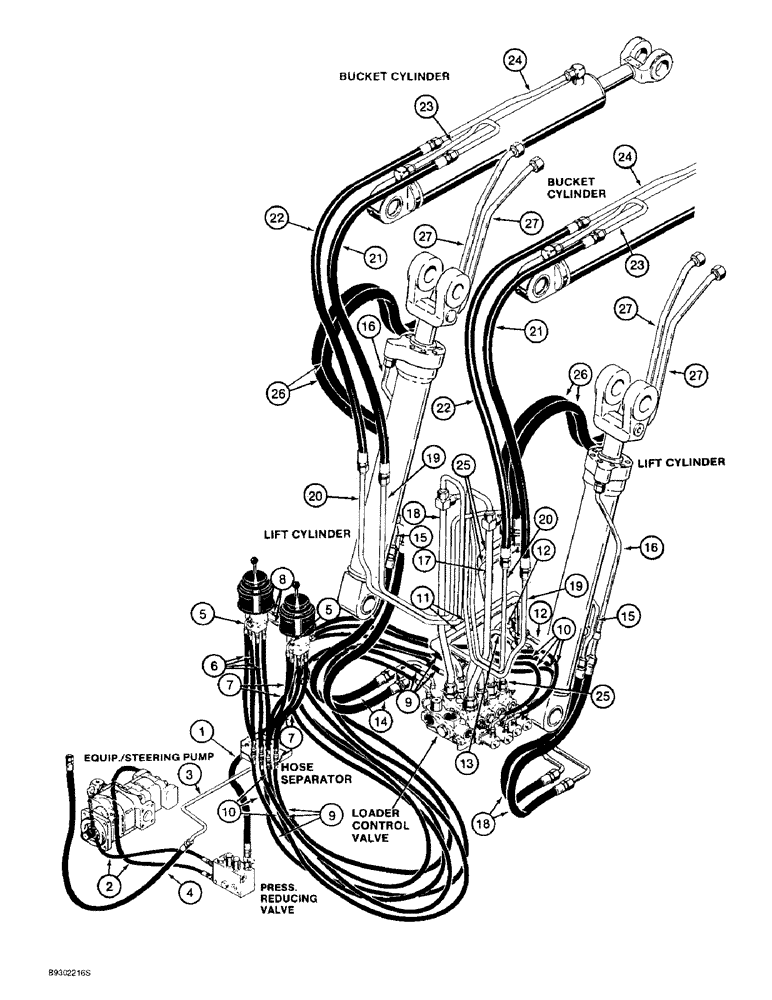

Запчасти Case 621B (1-30) - PICTORIAL INDEX, LOADER HYDRAULIC CIRCUIT - XT LOADER, FOUR SPOOL CONTROL VALVE (00) - PICTORIAL INDEX

1

Hose, hose separator to pressure reducing valve - Figure 8-79

1шт.

2

Hose, pressure reducing valve to elbow at steering pump - Figure 8-79

1шт.

3

Tube, hose separator to hose at hydraulic reservoir - Figure 8-79

1шт.

4

Hose, tube to hydraulic reservoir - Figure 8-79

1шт.

5

Hose, remote controls to hose separator, hydraulic reservoir and pressure reducing valve ports - Figure 8-75

1шт.

6

Hose, remote control to hose separator ports 1A, 1B, 2A, and 2B - Figure 8-75

1шт.

7

Hose, auxiliary remote control to hose separator ports 3A, 3B, 4A, and 4B - Figure 8-75

1шт.

8

Hose, auxiliary remote control to remote control - Figure 8-75

1шт.

9

Hose, hose separator to ports 1B, 2A, 3B and 4B - Figure 8-77

1шт.

10

Hose, hose separator to ports 1A, 2B, 3A and 4A - Figure 8-77

1шт.

11

Tube, at valve to lift cylinders - Figure 8-11

1шт.

12

Tube, tube to lift cylinders, rod end - Figure 8-11

1шт.

13

Tube, tube to lift cylinders, closed end - Figure 8-11

1шт.

14

Hose, at cylinders - Figure 8-11

1шт.

15

Tube, lift cylinder, closed end - Figure 8-11

1шт.

16

Tube, lift cylinder, rod end - Figure 8-11

1шт.

17

Tube, right-hand, at valve to bucket cylinders - Figure 8-15, 8-15B

1шт.

18

Tube, left-hand, at valve to bucket cylinders - Figure 8-15, 8-15B

1шт.

19

Tube, tube to bucket cylinder, closed end - Figure 8-15, 8-15B

1шт.

20

Tube, tube to bucket cylinder, rod end - Figure 8-15, 8-15B

1шт.

21

Hose, to bucket cylinder, closed end - Figure 8-15, 8-15B

1шт.

22

Hose, to bucket cylinder, rod end - Figure 8-15, 8-15B

1шт.

23

Tube, at bucket cylinder, closed end - Figure 8-15, 8-15B

1шт.

24

Tube, at bucket cylinder, rod end - Figure 8-15, 8-15B

1шт.

25

Tube, auxiliary section to hose - Figure 8-23

1шт.

26

Hose, tube at loader valve to tube on lift arm - Figure 8-23

1шт.

27

Tube, at loader arm - Figure 8-23

1шт.
