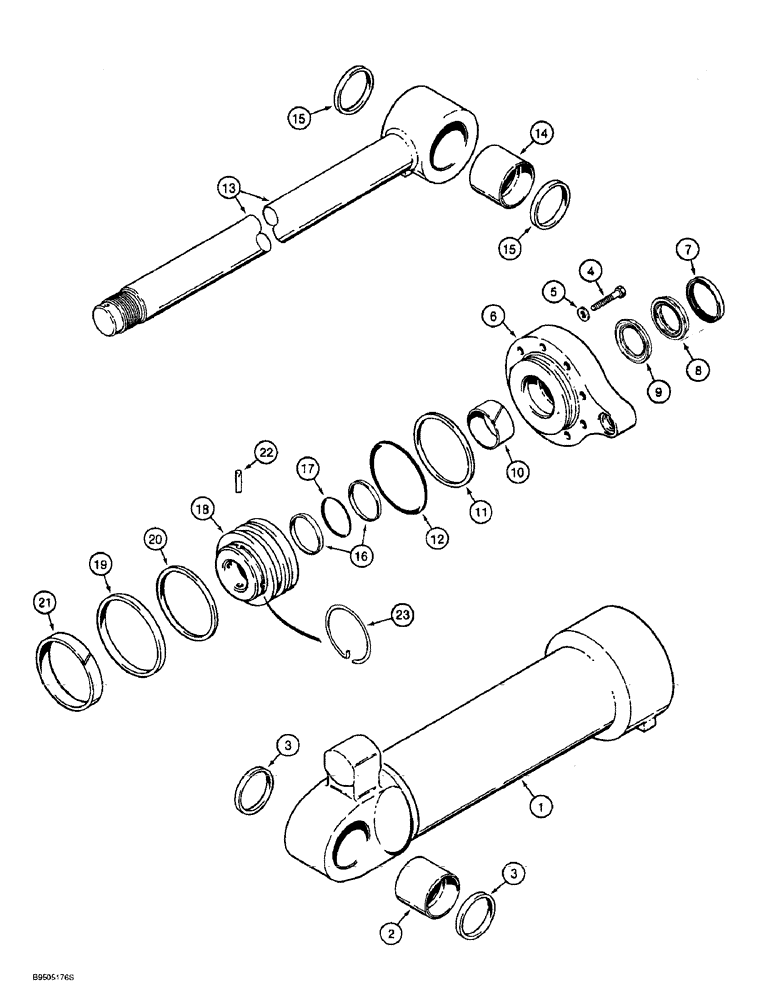

Запчасти Case 621B (8-53A) - BUCKET CYLINDER, 125872A1, Z-BAR LOADER WITH EXTENDED REACH (08) - HYDRAULICS

125872A1

CYLINDER ASSY.

152 (6) ID x 544 mm (21-13/32 in) Stroke, Includes: Ref. 1 - 23

1шт.

1

1343593C1

TUBE

cylinder, Includes: Ref. 2

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

L127014

BUSHING,82.73mm ID x 95.38mm OD x 82mm L

tube

1шт.

3

L104363

WIPER SEAL

tube eye

2шт.

4

28-944

BOLT,Hex, 9/16" - 18 x 2-3/4", Gr 8

9шт.

5

G110688

WASHER

16 x 25 x 2.54 mm

9шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY cylinder, Includes: Ref. 6 - 12

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

6

1543093C1

PACKING GLAND

GLAND - cylinder

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

7

D95148

WIPER SEAL

seal

1шт.

Part of Gasket Kit P/N 1543306C1

1шт.

1542881C1

SEAL KIT

NSS, order 1543306C1, Includes: Ref. 8 and 9

1шт.

Part of Gasket Kit P/N 1543306C1

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL rod, order 1543306C1

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL buffer, order 1543306C1

1шт.

10

G102429

BUSHING,76.2mm ID x 79.27mm OD x 37.85mm L

, Serial Range: gland-rod

1шт.

Part of Gasket Kit P/N 1543306C1

1шт.

11

G109034

BACK-UP RING,135.94mm ID x 145.08mm OD x 1.93mm Thk

Gland O-ring

1шт.

Part of Gasket Kit P/N 1543306C1

1шт.

12

238-5356

O-RING,0.21" Thk x 5.375" ID, -356, Cl 5, 75 Duro

1шт.

Part of Gasket Kit P/N 1543306C1

1шт.

13

L302890

PISTON ROD

76 mm (3 inch) dia, Includes: Ref. 14

1шт.

14

L127014

BUSHING,82.73mm ID x 95.38mm OD x 82mm L

rod eye

1шт.

15

L104363

WIPER SEAL

rod eye

2шт.

16

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

Backup

2шт.

Part of Gasket Kit P/N 1543306C1

1шт.

17

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Part of Gasket Kit P/N 1543306C1

1шт.

18

1343554C1

JACK PISTON

rod

1шт.

19

G110330

SEALING RING

SEALRING, Serial Range: Piston-tube

1шт.

Part of Gasket Kit P/N 1543306C1

1шт.

20

G110331

SEALING RING,Square, 6.86mm Thk x 132.46mm ID

SEALRING Backup, Piston seal

1шт.

Part of Gasket Kit P/N 1543306C1

1шт.

21

G110332

WEAR RING,146.04mm ID x 152.4mm OD x 38.1mm Thk

RING - wear, Serial Range: piston-tube

1шт.

Part of Gasket Kit P/N 1543306C1

1шт.

22

G106602

LOCK PIN

locking, Serial Range: piston-rod

1шт.

23

1980352C1

RING

retaining, locking pin

1шт.

1543306C1

SEAL KIT

Includes: Ref. 7, P/N 1542881C1, 10 - 12, 16, 17, 19 - 21 and an instruction sheel, used with 1543093C1 gland

1шт.
