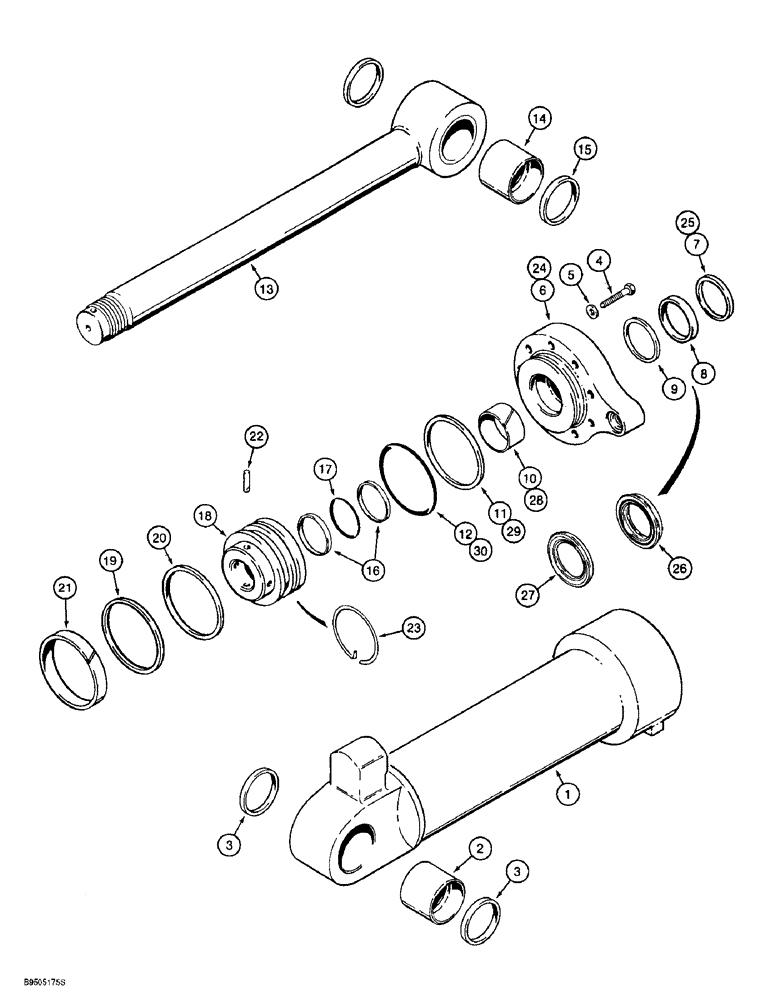

Запчасти Case 621B (8-52) - BUCKET CYLINDER, 1343552C2, Z-BAR LOADER (08) - HYDRAULICS

1343552C2

CYLINDER ASSY.

152 (6) ID x 544 mm (21-13/32 in) Stroke, Includes: Ref. 1 - 30

1шт.

1

1343593C1

TUBE

cylinder, Includes: Ref. 2

1шт.

2

L127014

BUSHING,82.73mm ID x 95.38mm OD x 82mm L

tube

1шт.

3

L104363

WIPER SEAL

tube eye

2шт.

4

28-944

BOLT,Hex, 9/16" - 18 x 2-3/4", Gr 8

9шт.

5

G110688

WASHER

16 x 25 x 2.54 mm

9шт.

G110321

BEARING

Gland Assy, Cylinder, Includes: Ref. 6 - 12, If Used, No Longer Available, Order Ref 24, 1543093C1 Gland and 1543306C1 Seal Repair Kit

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

For identification purposes, Ref. 24, 1543093C1 gland has a groove on the outside rim around the wiper. G110321 gland assembly does not have a groove.

1шт.

6

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

7

D95148

WIPER SEAL

seal

1шт.

8

G109054

SEAL,76.15mm ID x 88.95mm OD x 10.69mm Thk

U-cup, piston rod

1шт.

9

G109015

SEAL,75.69mm ID x 91.82mm OD x 4.9mm Thk

buffer

1шт.

10

G102429

BUSHING,76.2mm ID x 79.27mm OD x 37.85mm L

, Serial Range: gland-rod

1шт.

11

G109034

BACK-UP RING,135.94mm ID x 145.08mm OD x 1.93mm Thk

Gland O-ring

1шт.

12

238-5256

O-RING,0.139" Thk x 5.734" ID, -256, Cl 5, 75 Duro

1шт.

13

1343555C1

PISTON ROD

76 mm, Includes: Ref. 14

1шт.

14

L127014

BUSHING,82.73mm ID x 95.38mm OD x 82mm L

rod eye

1шт.

15

L104363

WIPER SEAL

rod eye

2шт.

16

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

Backup

2шт.

Part of Gasket Kit P/N 1543306C1

1шт.

17

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Part of Gasket Kit P/N 1543306C1

1шт.

18

1343554C1

JACK PISTON

rod

1шт.

19

G110330

SEALING RING

SEALRING, Serial Range: Piston-tube

1шт.

Part of Gasket Kit P/N 1543306C1

1шт.

20

G110331

SEALING RING,Square, 6.86mm Thk x 132.46mm ID

SEALRING Backup, Piston seal

1шт.

Part of Gasket Kit P/N 1543306C1

1шт.

21

G110332

WEAR RING,146.04mm ID x 152.4mm OD x 38.1mm Thk

RING wear, Serial Range: piston-tube

1шт.

Part of Gasket Kit P/N 1543306C1

1шт.

22

G106602

LOCK PIN

locking, Serial Range: piston-rod

1шт.

23

1980352C1

RING

retaining, locking pin

1шт.

NSS

NOT SOLD SEPARAT

Gland Assy, Cylinder, If Used, Includes: Ref. 24 - 30

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

For identification purposes, Ref. 24, 1543093C1 gland has a groove on the outside rim around the wiper. G110321 gland assembly does not have a groove.

1шт.

24

1543093C1

PACKING GLAND

Gland cylinder, Uses Ref. 26 and 27

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

For identification purposes, Ref. 24, 1543093C1 gland has a groove on the outside rim around the wiper. G110321 gland assembly does not have a groove.

1шт.

25

D95148

WIPER SEAL

seal

1шт.

Part of Gasket Kit P/N 1543306C1

1шт.

1542881C1

SEAL KIT

NSS, order 1543306C1 seal kit, Includes: Ref. 26 and 27

1шт.

Part of Gasket Kit P/N 1543306C1

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL rod, order 1543306C1

1шт.

27

NSS

NOT SOLD SEPARAT

SEAL buffer, order 1543306C1

1шт.

28

G102429

BUSHING,76.2mm ID x 79.27mm OD x 37.85mm L

, Serial Range: gland-rod

1шт.

Part of Gasket Kit P/N 1543306C1

1шт.

29

G109034

BACK-UP RING,135.94mm ID x 145.08mm OD x 1.93mm Thk

Gland O-ring

1шт.

Part of Gasket Kit P/N 1543306C1

1шт.

30

238-5356

O-RING,0.21" Thk x 5.375" ID, -356, Cl 5, 75 Duro

1шт.

Part of Gasket Kit P/N 1543306C1

1шт.

1543306C1

SEAL KIT

Includes: Ref. 16, 17, 19-21, 25, P/N 1542881C1, 28-30 and an instruction sheet, used with 1543093C1 gland

1шт.
