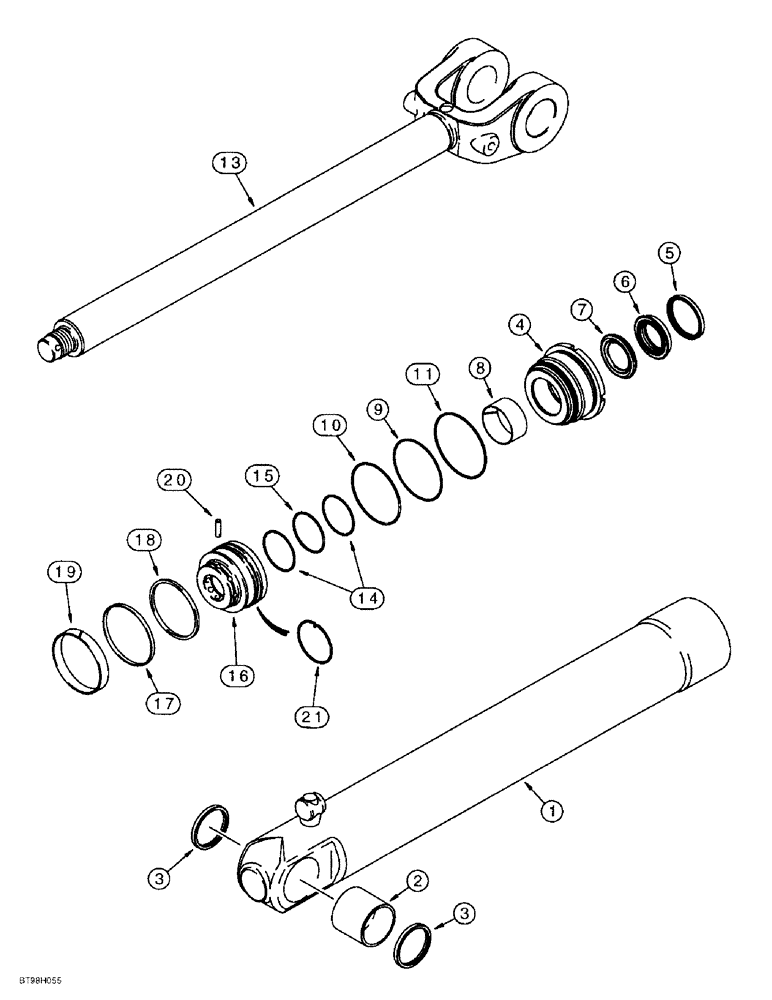

Запчасти Case 621B (8-51A) - LIFT CYLINDERS, 280706A1, 280707A1 (08) - HYDRAULICS

280706A1

CYLINDER ASSY.

127 (5) ID x 834 mm (32-13/16 in) stroke, Includes: Ref. 1 - 21, Right Hand Lift

1шт.

280707A1

CYLINDER ASSY.

127 (5) ID x 834 mm (32-13/16 in) stroke, Includes: Ref. 1 - 21, Left Hand Lift

1шт.

1

280702A1

HYD CYL SLEEVE

Tube Assy, Right Hand, Extruded, Includes: Ref. 2 and 3

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1a

280703A1

HYD CYL SLEEVE

Tube Assy, Left-hand, not illustrated, Includes: Ref. 2 and 3

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

L127015

BUSHING,76.38mm ID x 89.03mm OD x 82mm L

tube

1шт.

3

D95148

WIPER SEAL

seal

2шт.

NSS

NOT SOLD SEPARAT

Gland, Cylinder, Includes: Ref. 4 - 11, Order 1543305C1 Seal Kit

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

4

198110A1

GLAND

GLAND, cylinder

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

5

D95148

WIPER SEAL

seal

2шт.

Part of Gasket Kit P/N 1543305C1

1шт.

1542881C1

SEAL KIT

NSS, Order 1543305C1 Seal Kit, Includes: Ref. 6 and 7

1шт.

Part of Gasket Kit P/N 1543305C1

1шт.

6

NSS

NOT SOLD SEPARAT

Seal, Rod, Order 1543305C1 kit

1шт.

7

NSS

NOT SOLD SEPARAT

Seal, Buffer, Order 1543305C1 Kit

1шт.

8

G102429

BUSHING,76.2mm ID x 79.27mm OD x 37.85mm L

, Serial Range: gland-rod

1шт.

Part of Gasket Kit P/N 1543305C1

1шт.

9

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

1шт.

Part of Gasket Kit P/N 1543305C1

1шт.

10

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

1шт.

Part of Gasket Kit P/N 1543305C1

1шт.

11

238-5248

O-RING,0.139" Thk x 4.734" ID, -248, Cl 5, 75 Duro

1шт.

12

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

13

199952A1

PISTON ROD

76 mm ID

1шт.

14

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

backup

2шт.

Part of Gasket Kit P/N 1543305C1

1шт.

15

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Part of Gasket Kit P/N 1543305C1

1шт.

16

G110368

PISTON

rod

1шт.

17

1986753C1

SEAL,Locking, 123.8mm ID x 128.52mm OD x 6.96mm Thk

piston

1шт.

Part of Gasket Kit P/N 1543305C1

1шт.

18

G102092

RING,Square, 5.28mm Thk x 113.92mm ID

backup

1шт.

Part of Gasket Kit P/N 1543305C1

1шт.

19

G102090

RING,127mm OD, Ext

wear

1шт.

Part of Gasket Kit P/N 1543305C1

1шт.

20

G106602

LOCK PIN

locking

1шт.

21

G110333

CIRCLIP

retaining

1шт.

1543305C1

SEAL KIT

Includes: Ref. 5, P/N 1542881C1, 8 - 10, 14, 15, 17 - 19 and an instruction sheet

1шт.
